DTC P0100: Mass or Volume Air Flow Circuit, DTC P0102: Mass or Volume Air Flow Circuit Low Input, DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

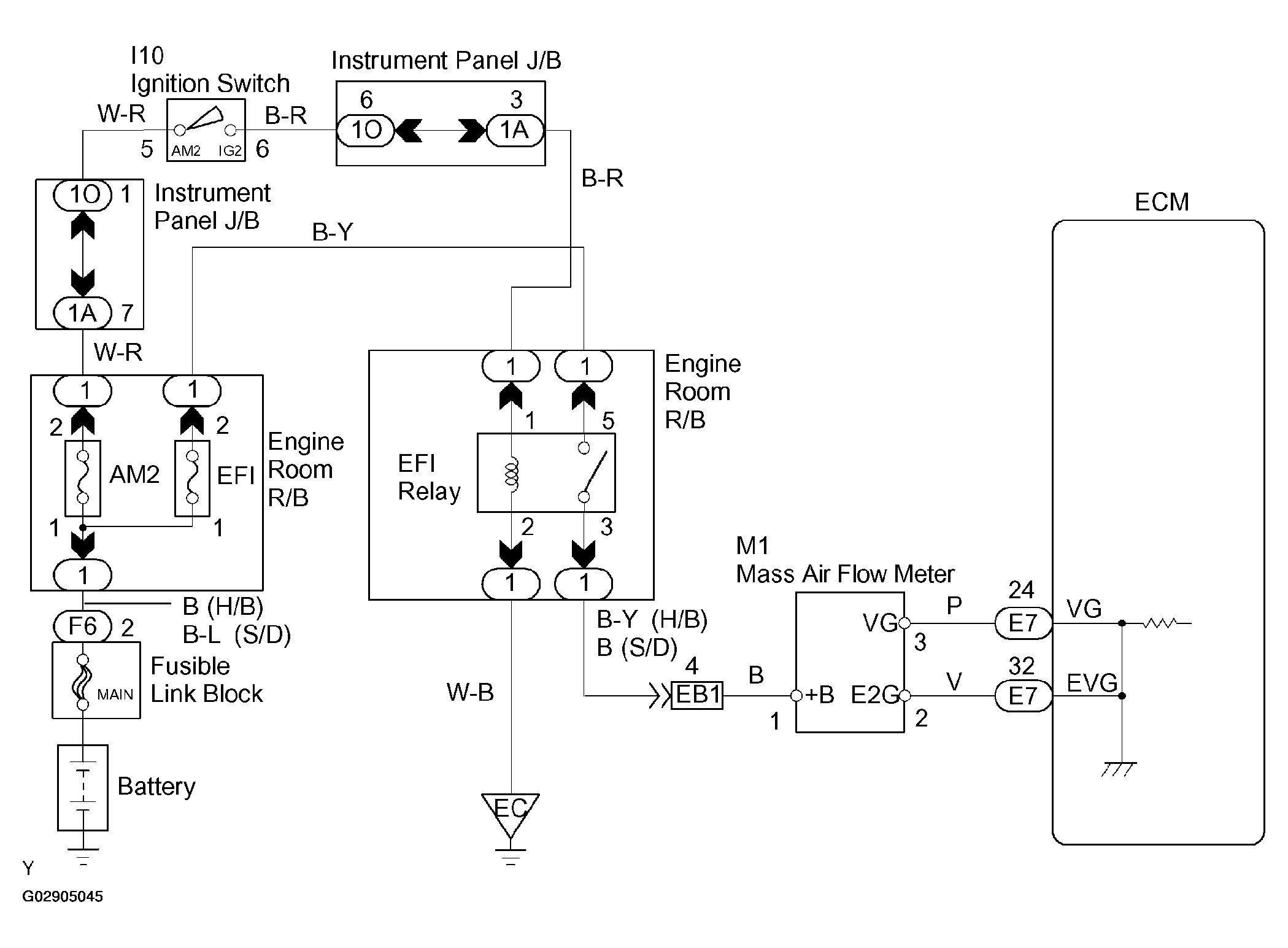

Fig 1: Mass or Volume Air Flow Wiring Diagram
G02905045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
