DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem
>>
Circuit Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Description
Refer to
DTC P0115
.

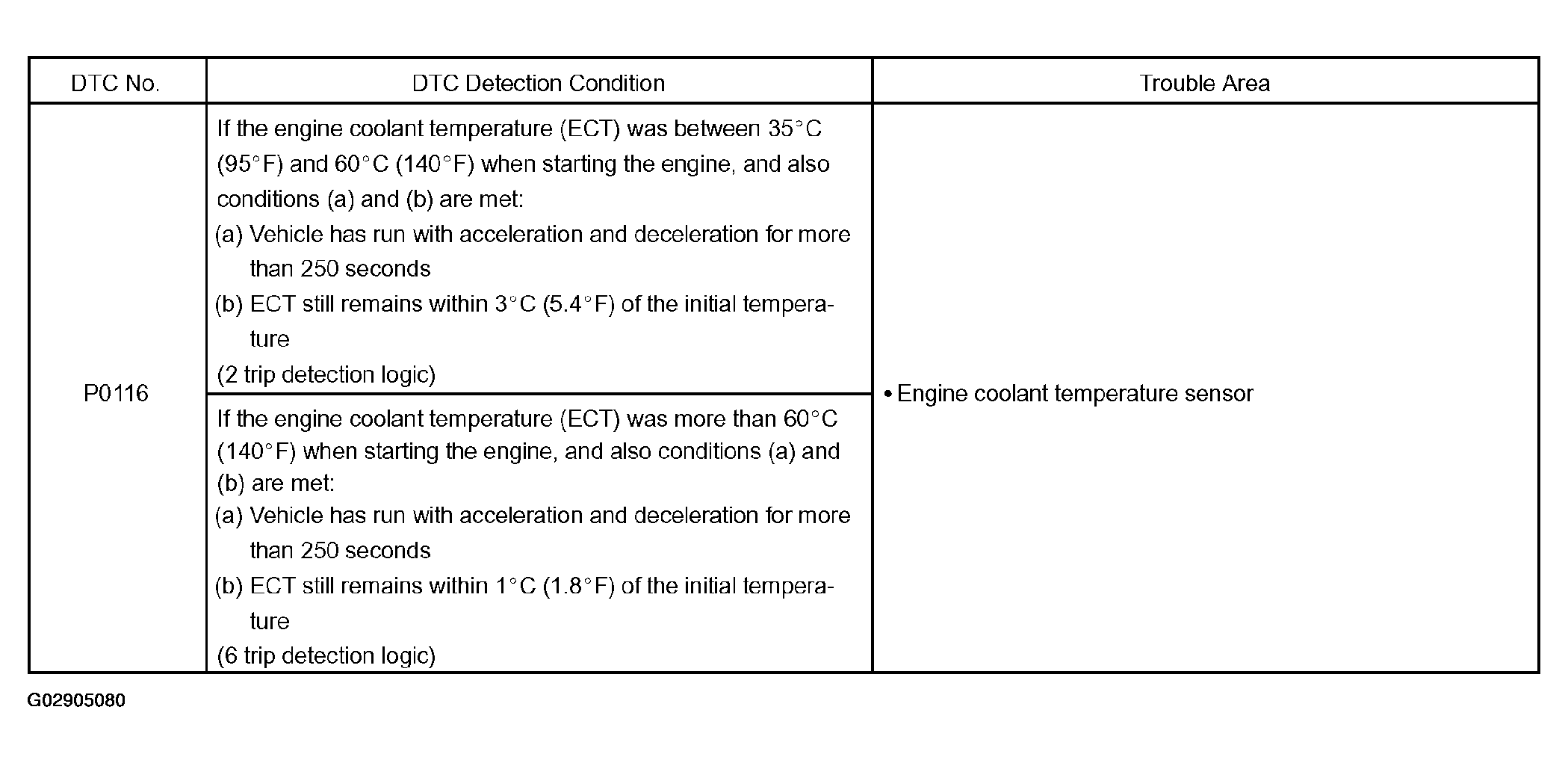

Fig 1: DTC Detection Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
