DTC P0116: Engine Coolant Temperature Circuit Range/Performance Problem
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions

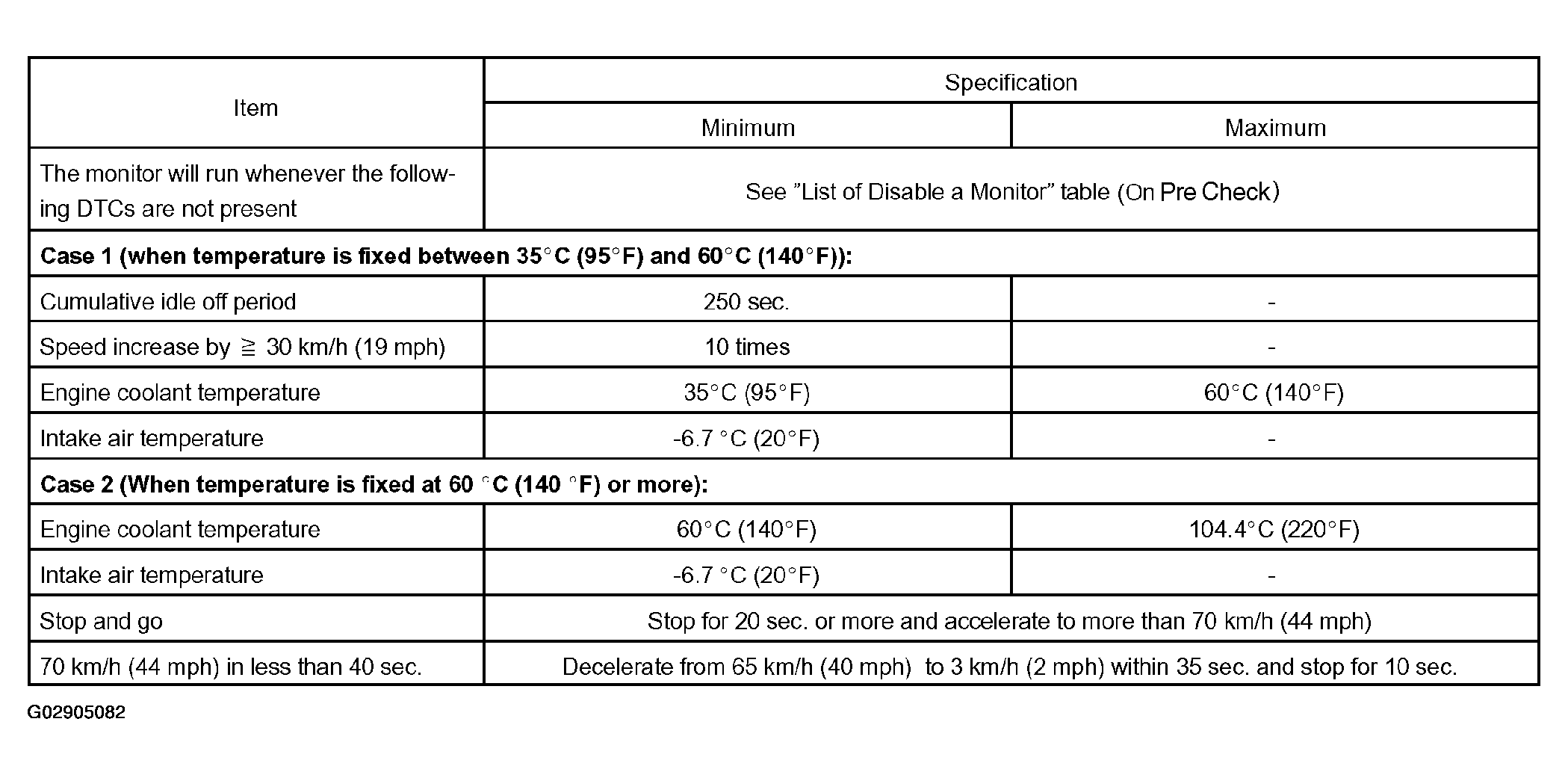

Fig 1: Typical Enabling Conditions Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
