Automatic Transaxle Unit: Components

Fig 1: Identifying Automatic Transaxle Unit Components (1 Of 3)
G02906517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

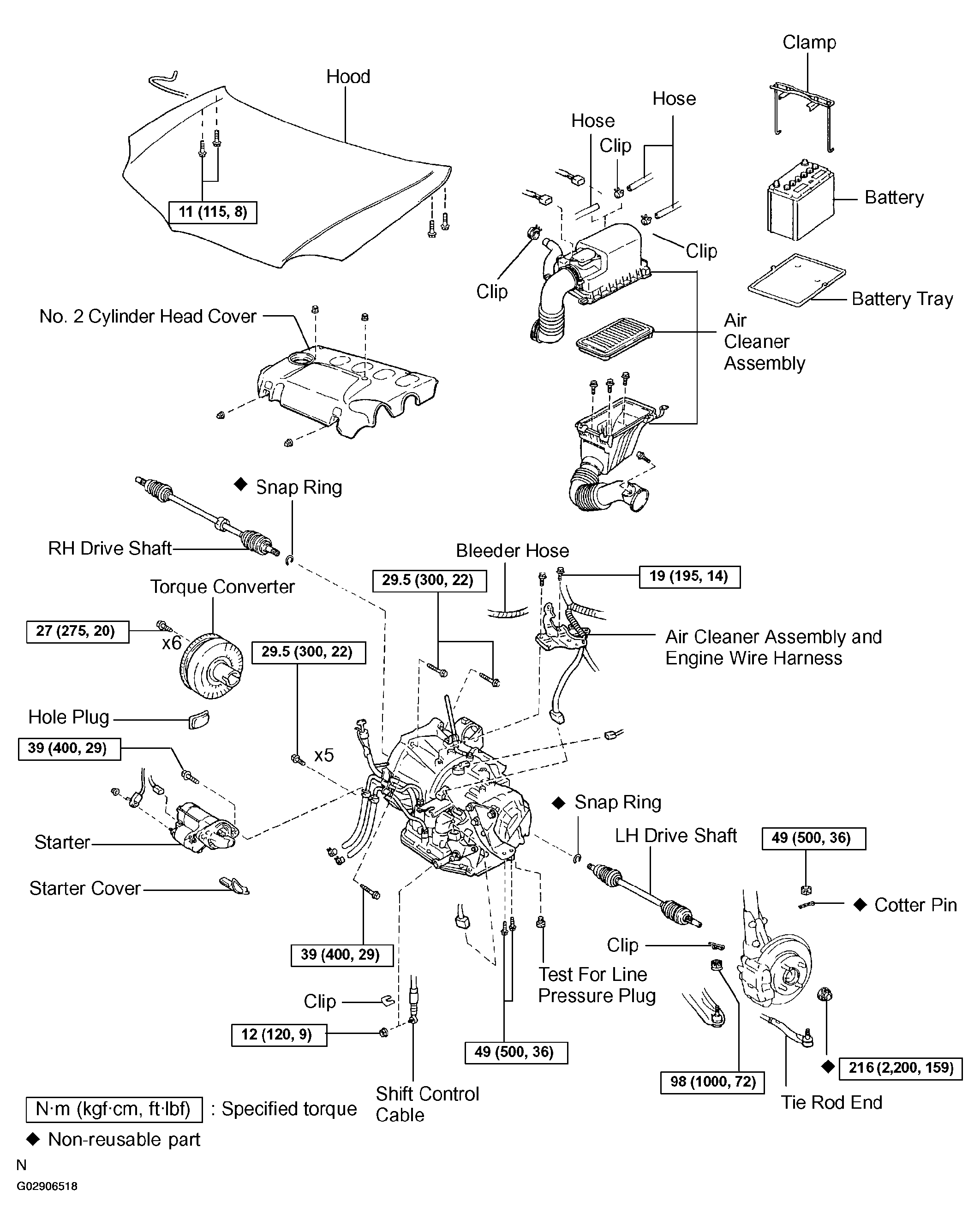

Fig 2: Identifying Automatic Transaxle Unit Components (2 Of 3)
G02906518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Automatic Transaxle Unit Components (3 Of 3)
G02906519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
