Fuel Pressure Regulator: Installation

  1. INSTALL FUEL PRESSURE REGULATOR
    1. Install the O-ring to the pressure regulator.

      HINT:

      Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

    2. Connect the pressure regulator from the fuel filter.

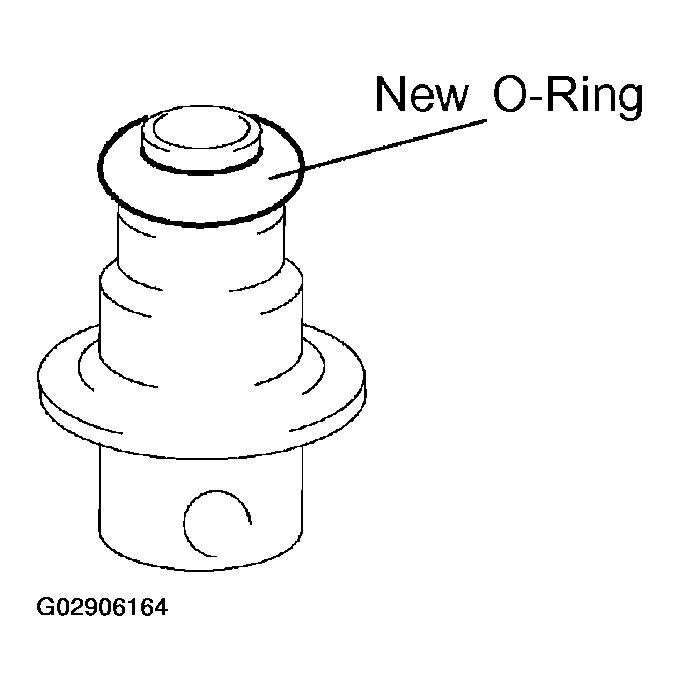

      Fig 1: Installing O-Ring To Pressure Regulator
      G02906164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO.2 FUEL SUCTION SUPPORT (See  REASSEMBLY   )
  3. INSTALL FUEL PUMP ASSEMBLY TO FUEL TANK (See  INSTALLATION   )
