DTC P0500: Vehicle Speed Sensor "A"
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

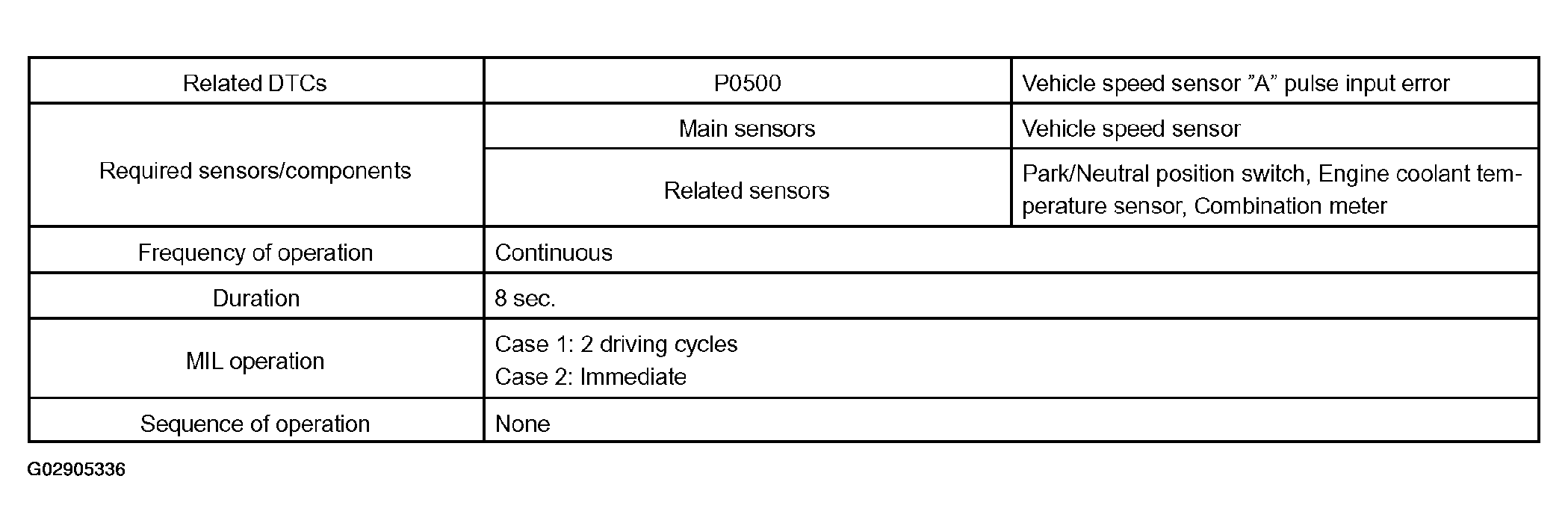

Fig 1: Monitor Strategy Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
