DTC P0550: Power Steering Pressure Sensor/Switch Circuit: DTC P0552 Power Steering Pressure Sensor/Switch Circuit Low Input: DTC P0553 Power Steering Pressure Sensor/Switch Circuit HIGH Input: Wiring Diagram

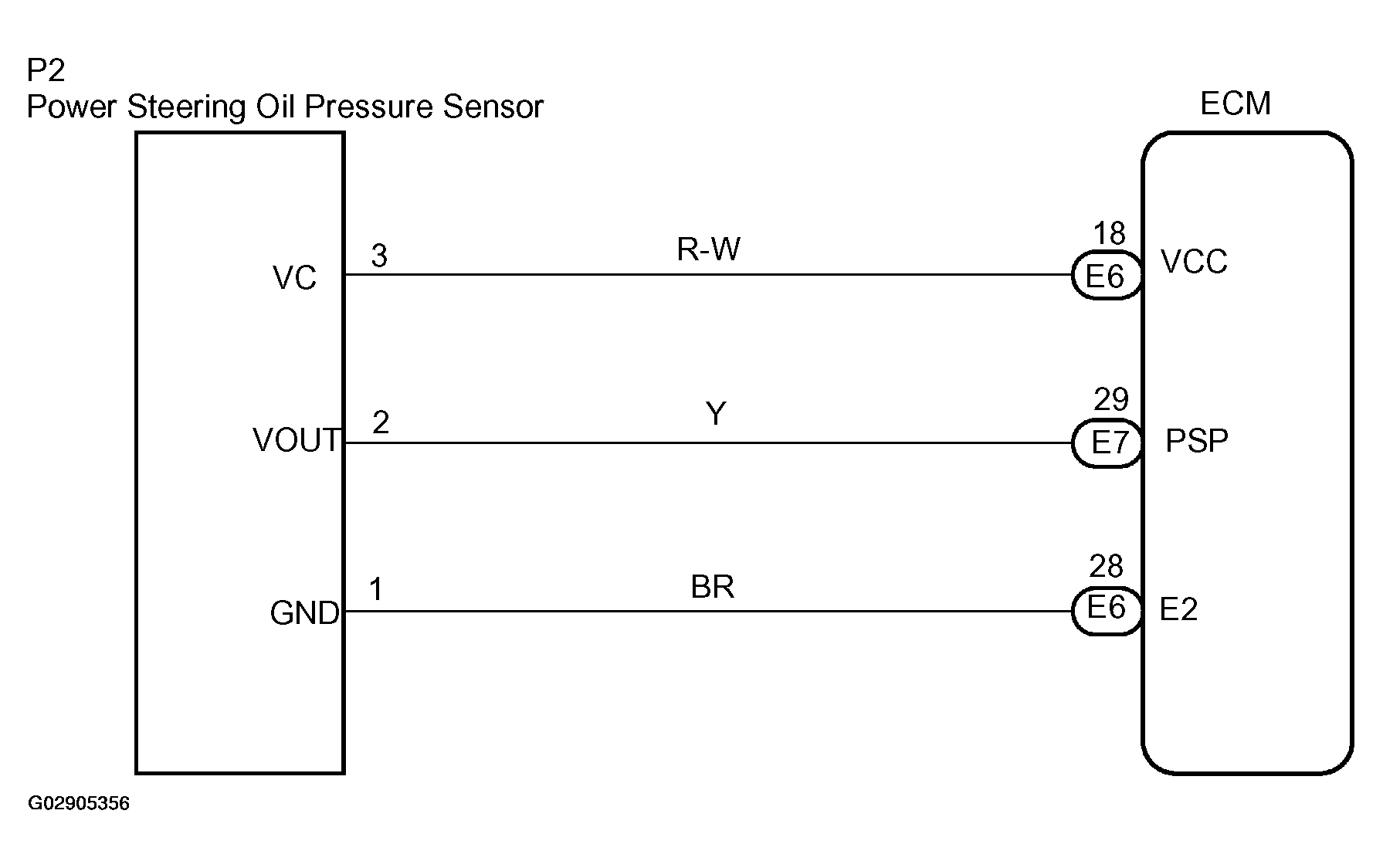

Fig 1: Power Steering Pressure Sensor/Switch Wiring Diagram
G02905356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
