When using hand-held tester:

  1. Connect the hand-held tester and check operation of fuel pump.

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    3. Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/FUEL PUMP/SPD".

    CHECK:

    Check the relay operation while operating it with the hand-held tester.

    Standard: Operating noise can be heard from the relay.

    OK: Proceed to next circuit inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).

    NG: Go to next step.

  2. Check ECM power source circuit (See  ECM POWER SOURCE CIRCUIT  ).

    NG: Repair or replace power source circuit.

    OK: Go to next step.

  3. Check circuit opening relay.

    PREPARATION:

    Remove the circuit opening relay from the instrument panel J/B.

    CHECK:

    Inspect the circuit opening relay.

    OK:

    Fig 1: Inspecting Circuit Opening Relay
    G02905398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

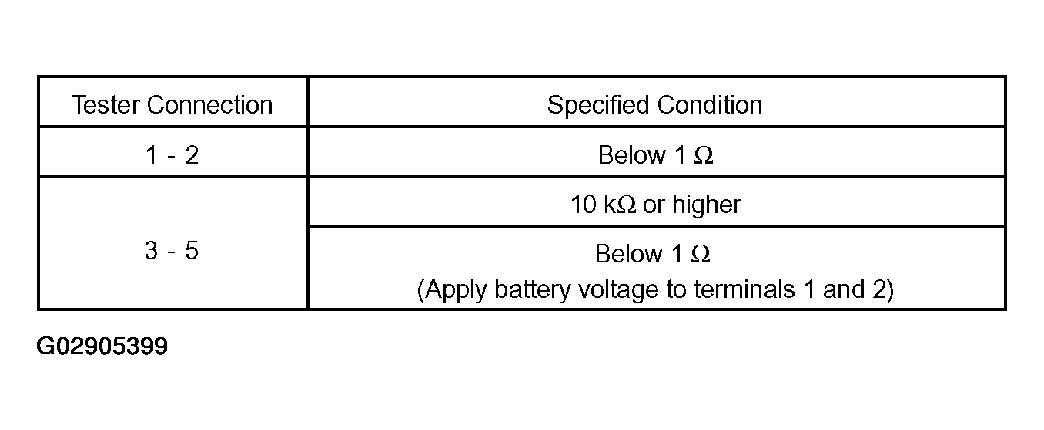

    Fig 2: Specified Condition Table
    G02905399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Replace circuit opening relay.

    OK: Go to next step.

  4. Check voltage between terminals FC and E01 of ECM.

    PREPARATION:

    Turn the ignition switch ON.

    CHECK:

    Measure the voltage between the specified terminals of the E4 and E6 ECM connectors.

    OK:

    SPECIFIED CONDITION

    Tester Connection Specified Condition
    FC (E4-10) - E01 (E6-7) 9 to 14 V

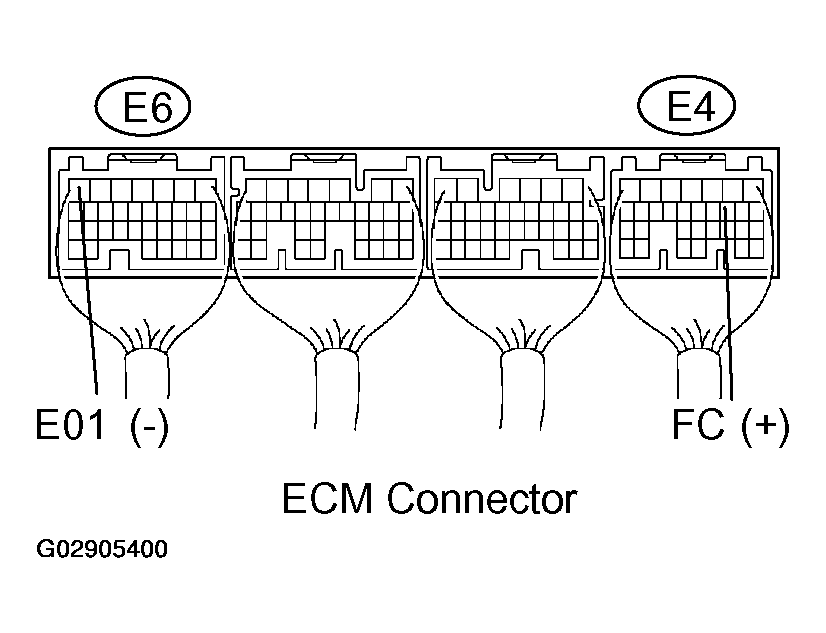

    Fig 3: Checking Voltage Between Terminals FC And E01 Of ECM
    G02905400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to step   7 .

    NG: Go to next step.

  5. Check for open and short in harness and connector between EFI relay and circuit opening relay.

    PREPARATION:

    1. (a) Remove the EFI relay from the engine room R/B.
    2. (b) Remove the circuit opening relay from the instrument panel J/B.

    CHECK:

    Measure the resistance between the wire harness side connectors.

    OK:

    Standard (Check for open):

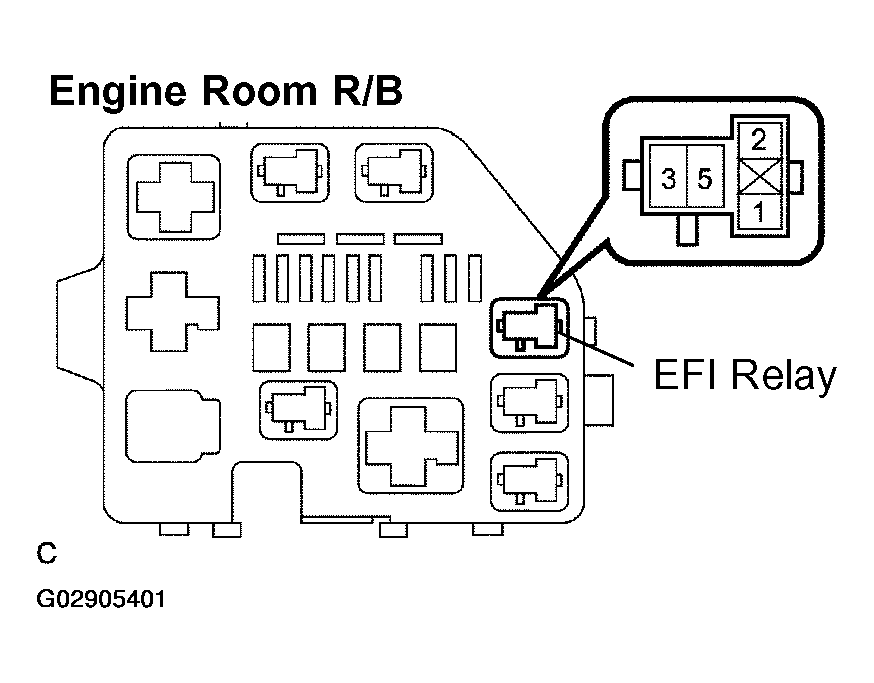

    Fig 4: Removing EFI Relay From Engine Room R/B
    G02905401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 5: Removing Circuit Opening Relay From Instrument Panel J/B
    G02905402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard (Check for short):

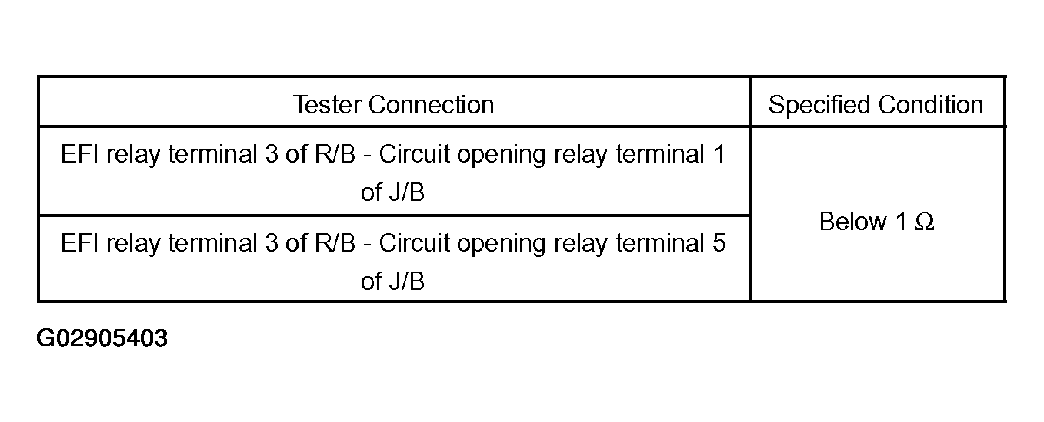

    Fig 6: Specified Condition Table (Check For Open)
    G02905403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

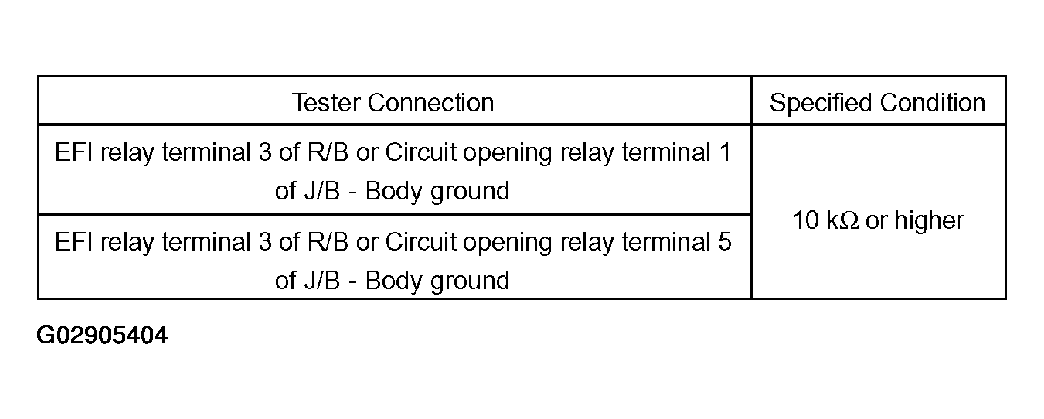

    Fig 7: Specified Condition Table (Check For Short)
    G02905404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Repair or replace harness or connector.

    OK: Go to next step.

  6. Check for open and short in harness and connector between ECM and circuit opening relay.

    PREPARATION:

    1. Disconnect the E4 ECM connector.
    2. Remove the circuit opening relay from the instrument panel J/B.

    CHECK:

    Measure the resistance between the wire harness side connectors.

    OK:

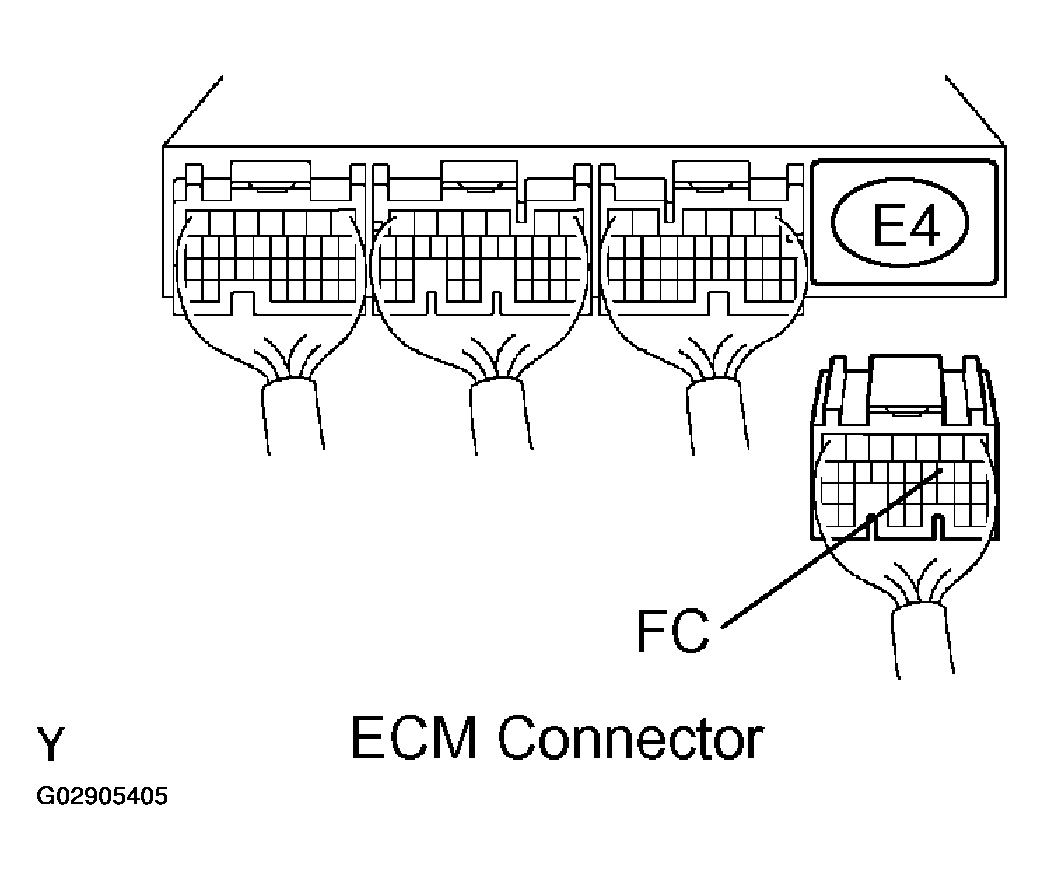

    Fig 8: Disconnecting E4 ECM Connector
    G02905405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard (Check for Open):

    SPECIFIED CONDITION

    Tester Connection Specified Condition
    FC (E4-10) - Circuit opening relay terminal 2 of J/B Below 1 Ω

    Standard (Check for short):

    SPECIFIED CONDITION

    Tester Connection Specified Condition
    FC (E4-10) or Circuit opening relay terminal 2 of J/B - Body ground 10 kΩ or higher
    Fig 9: Identifying Circuit Opening Relay From Instrument Panel J/B
    G02905406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Repair or replace harness or connector.

    OK: Go to next step.

    Replace ECM (See COMPONENTS ).

  7. Check fuel pump (See  ON-VEHICLE INSPECTION  ).

    NG: Repair or replace fuel pump.

    OK: Go to next step.

  8. Check for open and short in harness and connector between circuit opening relay and fuel pump, fuel pump and body ground.

    PREPARATION:

    1. Remove the circuit opening relay from the instrument panel J/B.
    2. Disconnect the F10 fuel pump connector.

    CHECK:

    Measure the resistance between the wire harness side connectors.

    OK:

    Standard (Check for open):

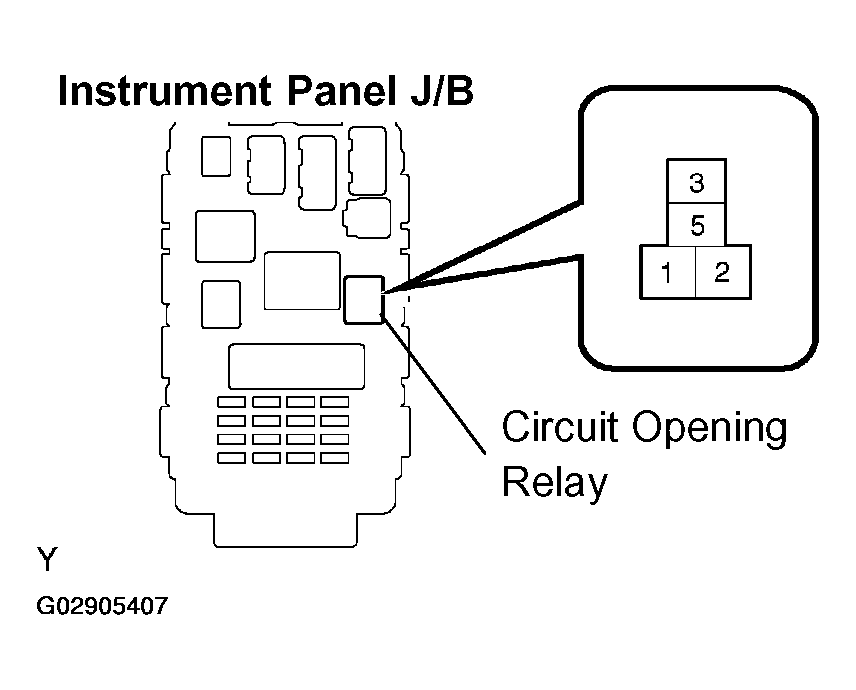

    Fig 10: Removing Circuit Opening Relay From Instrument Panel J/B
    G02905407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

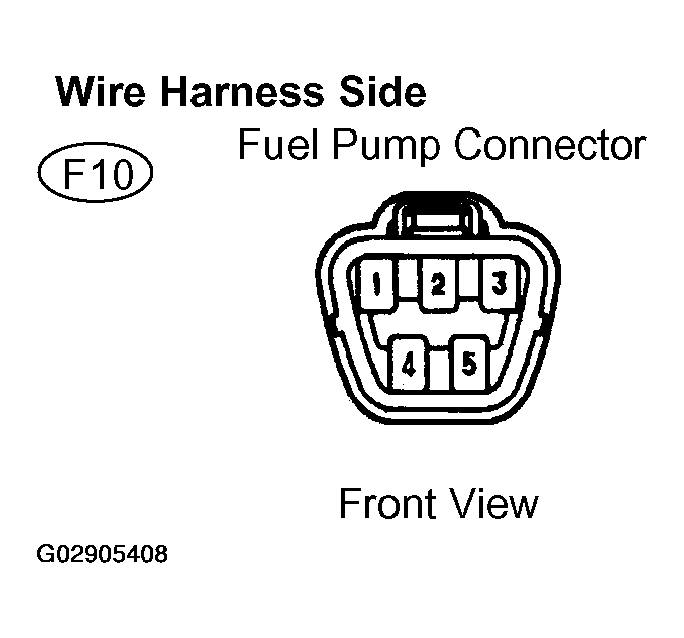

    Fig 11: Identifying F10 Fuel Pump Connector
    G02905408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard (Check for short):

    SPECIFIED CONDITION

    Tester Connection Specified Condition
    Circuit opening relay terminal 3 of J/B or Fuel pump (F10-4) - Body ground 10 kΩ or higher

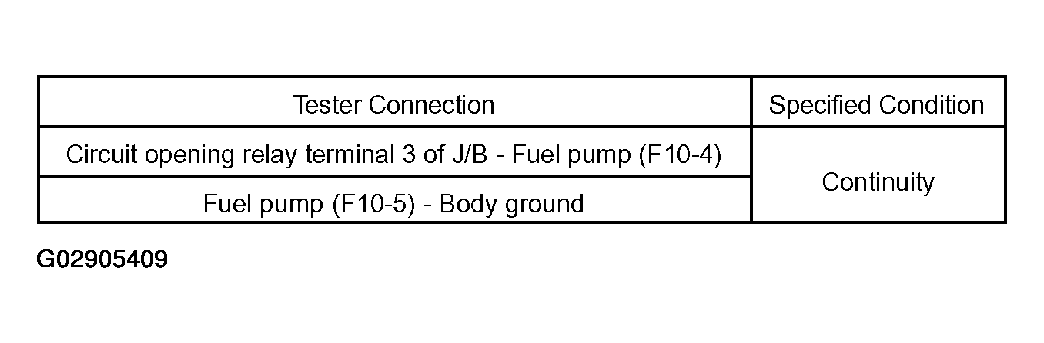

    Fig 12: Specified Condition Table
    G02905409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Repair or replace harness or connector.

    OK: Proceed to next circuit inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
