Inspection Procedure

1. Check if the stop lights go on and off normally when the brake pedal is depressed and released.

NG: Repair or replace stop lamp switch circuit.

OK: Go to next step.

PREPARATION:

Turn the ignition switch ON.

CHECK:

Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL/STOP LIGHT SW" and read its value displayed on the hand-held tester or OBD II scan tool.

OK:

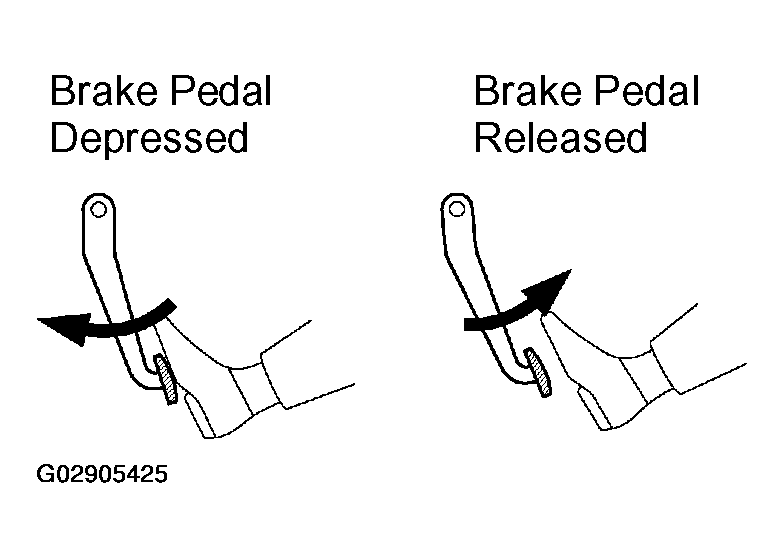

Fig 1: Identifying Brake Pedal Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Check for intermittent problems (See  PRE-CHECK  ).

NG: Go to next step.

CHECK:

Measure the resistance between terminals when the switch is ON and OFF.

OK:

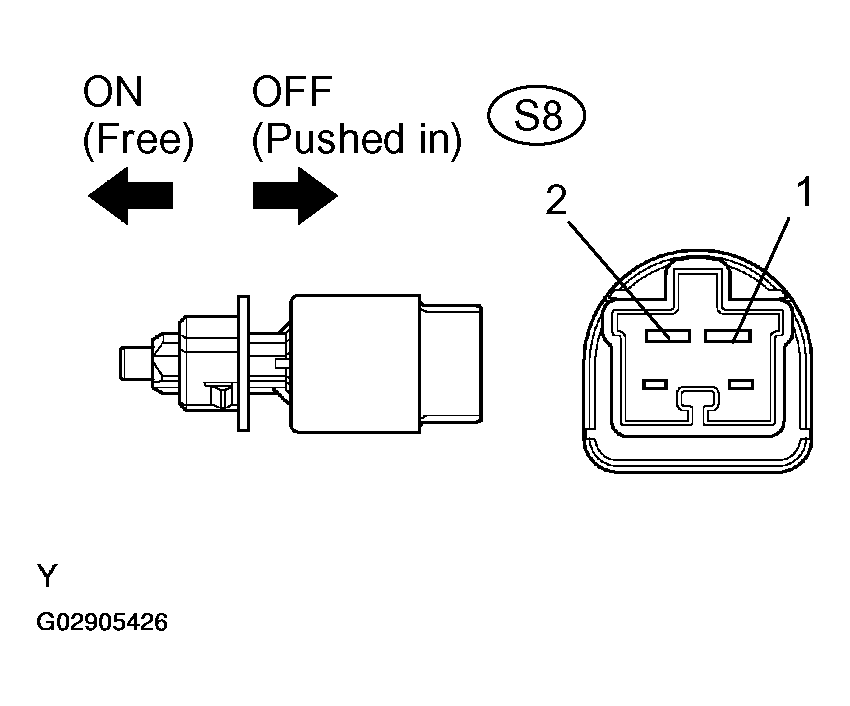

Fig 2: Checking Stop Lamp Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

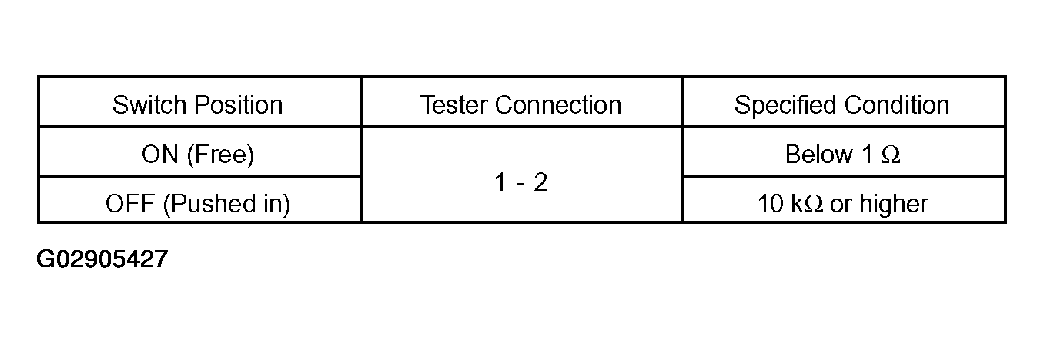

Fig 3: Specified Condition Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Replace stop lamp switch.

OK: Go to next step.

PREPARATION:

1. Disconnect the S8 stop lamp switch connector.
2. Disconnect the E5 ECM connector.

CHECK:

Measure the resistance between the wire harness side connectors.

OK:

Standard (Check for open):

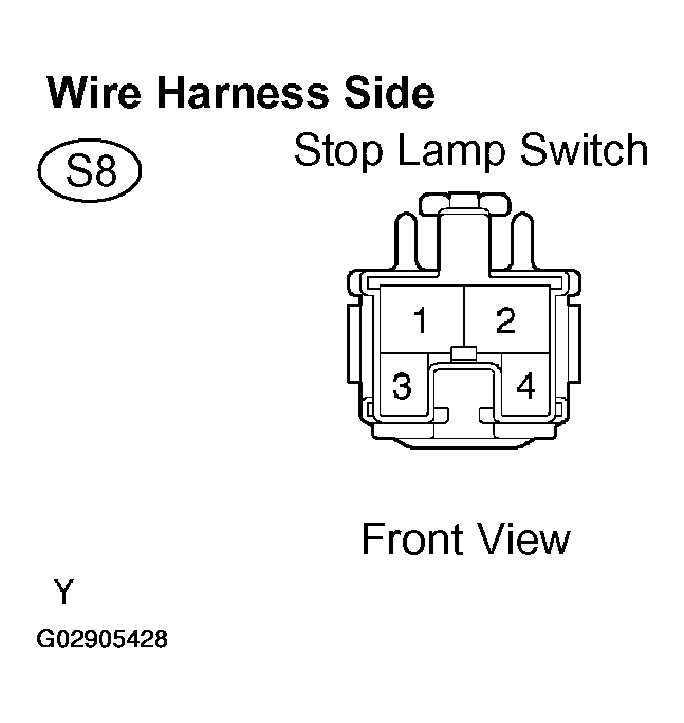

Fig 4: Identifying S8 Stop Lamp Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (Check for short):

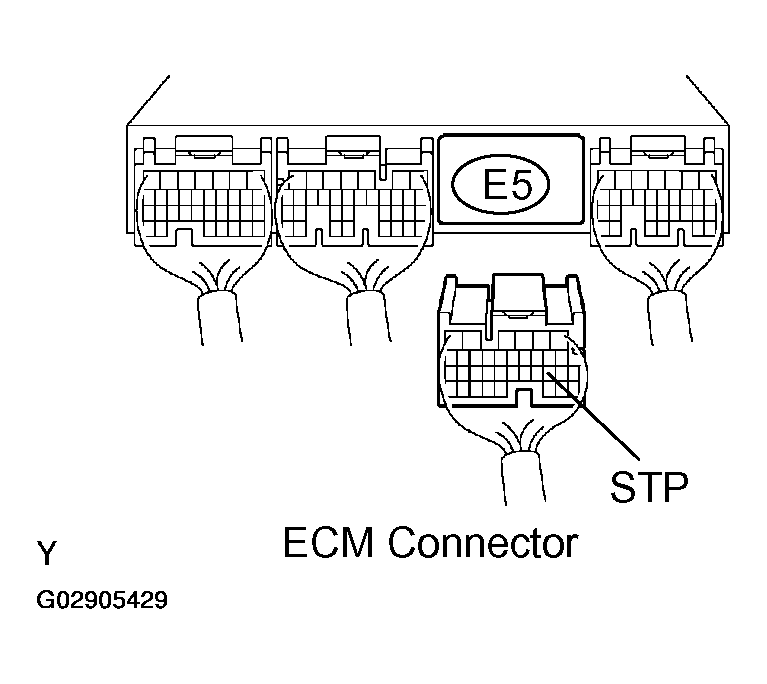

Fig 5: Identifying STP ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Repair or replace harness or connector.

OK: Replace ECM (See  COMPONENTS  ).
