Diagnostic Trouble Code Table
HINT:
Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table below.

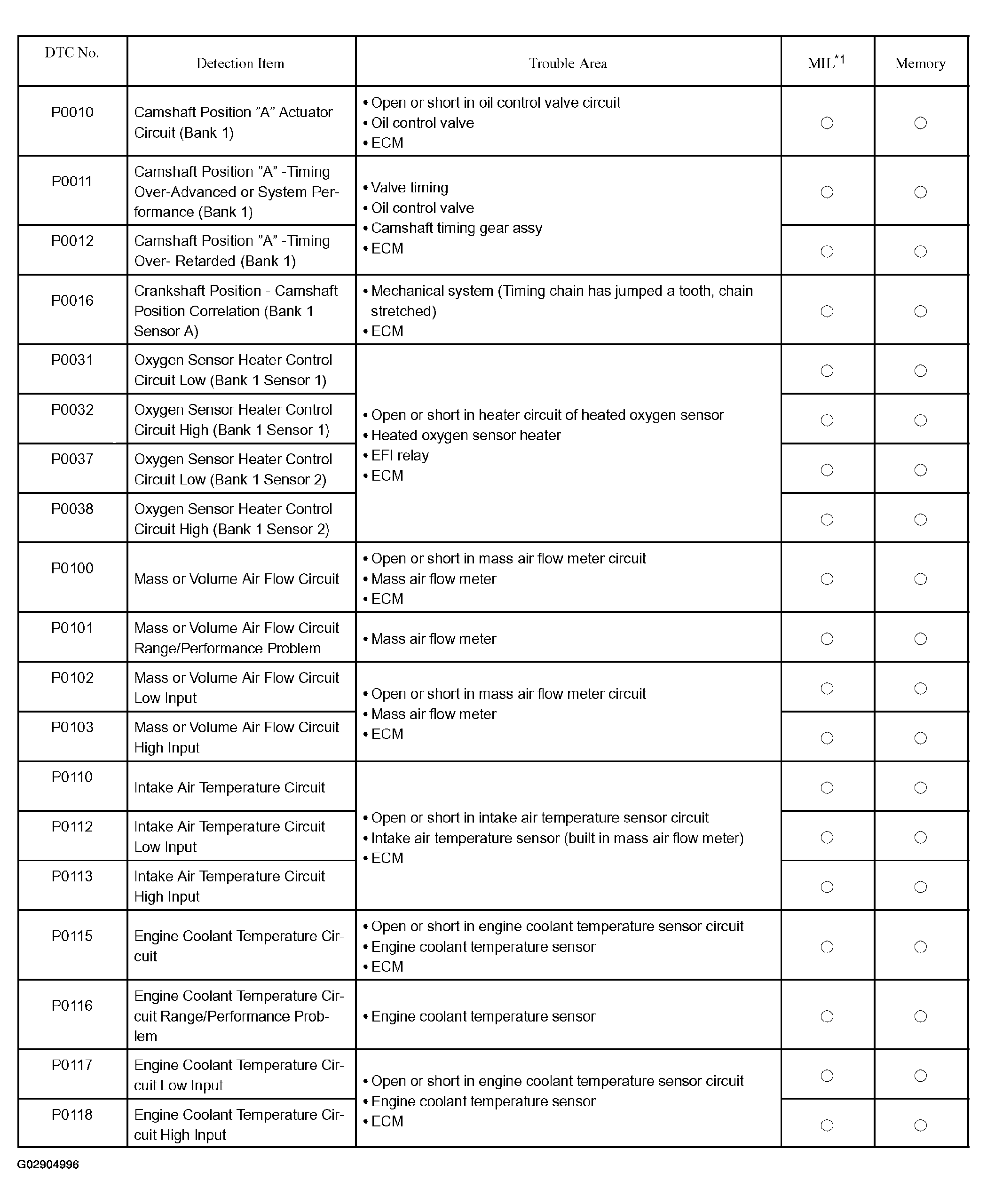

DTC INDEX
| DTC | Description |
|---|---|
| P0010 | Camshaft Position "A" Actuator Circuit (Bank 1) |
| P0011 | Camshaft Position "A" - Timing Over - Advanced or System Performance (Bank 1) |
| P0012 | Camshaft Position "A" - Timing Over - Retarded (Bank 1) |
| P0016 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| P0031 | Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 1) |
| P0032 | Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 1) |
| P0037 | Oxygen Sensor Heater Control Circuit Low (Bank 1 Sensor 2) |
| P0038 | Oxygen Sensor Heater Control Circuit High (Bank 1 Sensor 2) |
| P0100 | Mass or Volume Air Flow Circuit |
| P0101 | Mass or Volume Air Flow Circuit Range/Performance Problem |
| P0102 | Mass or Volume Air Flow Circuit Low Input |
| P0103 | Mass or Volume Air Flow Circuit High Input |
| P0110 | Intake Air Temperature Circuit |
| P0112 | Intake Air Temperature Circuit Low Input |
| P0113 | Intake Air Temperature Circuit High Input |
| P0115 | Engine Coolant Temperature Circuit |
| P0116 | Engine Coolant Temperature Circuit Range/Performance Problem |
| P0117 | Engine Coolant Temperature Circuit Low Input |
| P0118 | Engine Coolant Temperature Circuit High Input |
| P0120 | Throttle/Pedal Position Sensor/Switch "A" Circuit |
| P0122 | Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input |
| P0123 | Throttle/Pedal Position Sensor/Switch "A" Circuit High Input |
| P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem |
| P0125 | Insufficient Coolant Temperature for Closed Loop Fuel Control |
| P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |
| P0130 | Oxygen Sensor Circuit (Bank 1 Sensor 1) |
| P0133 | Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1) |
| P0134 | Oxygen Sensor Circuit No Activity Detected (Bank 1 Sensor 1) |
| P0136 | Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2) |
| P0171 | System too Lean (Bank 1) |
| P0172 | System too Rich (Bank 1) |
| P0300 | Random/Multiple Cylinder Misfire Detected |
| P0301 | Cylinder 1 Misfire Detected |
| P0302 | Cylinder 2 Misfire Detected |
| P0303 | Cylinder 3 Misfire Detected |
| P0304 | Cylinder 4 Misfire Detected |
| P0325 | Knock Sensor 1 Circuit (Bank 1 or Single Sensor) |
| P0335 | Crankshaft Position Sensor "A" Circuit |
| P0339 | Crankshaft Position Sensor "A" Circuit Intermittent |
| P0340 | Camshaft Position Sensor "A" Circuit (Bank 1 or Single Sensor) |
| P0341 | Camshaft Position Sensor "A" Circuit Range/Performance (Bank 1) |
| P0351 | Ignition Coil "A" Primary/Circuit |
| P0352 | Ignition Coil "B" Primary/Circuit |
| P0353 | Ignition Coil "C" Primary/Circuit |
| P0354 | Ignition Coil "D" Primary/Circuit |
| P0420 | Catalyst System Efficiency Below Threshold (Bank 1) |
| P0441 | Evaporative Emission Control System Incorrect Purge Flow |
| P0442 | Evaporative Emission Control System Leak Detected (small leak) |
| P0446 | Evaporative Emission Control System Vent Control Circuit |
| P0451 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance |
| P0452 | Evaporative Emission Control System Pressure Sensor/Switch Low Input |
| P0453 | Evaporative Emission Control System Pressure Sensor/Switch High Input |
| P0456 | Evaporative Emission Control System Leak Detected (very small leak) |
| P0500 | Vehicle Speed Sensor "A" |
| P0505 | Idle Air Control System |
| P0511 | Idle Air Control Circuit |
| P0550 | Power Steering Pressure Sensor/Switch Circuit |
| P0552 | Power Steering Pressure Sensor/Switch Circuit Low Input |
| P0553 | Power Steering Pressure Sensor/Switch Circuit HIGH Input |
| P0560 | System Voltage |
| P0606 | ECM/PCM Processor |
| P0617 | Starter Relay Circuit High |
| P2195 | Oxygen Sensor Signal Stuck Lean (Bank 1 Sensor 1) |
| P2196 | Oxygen Sensor Signal Stuck Rich (Bank 1 Sensor 1) |
