Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped in the following 2 places:

    1. A: Engine compartment (Vehicle Identification Number)
    2. B: Certification Label

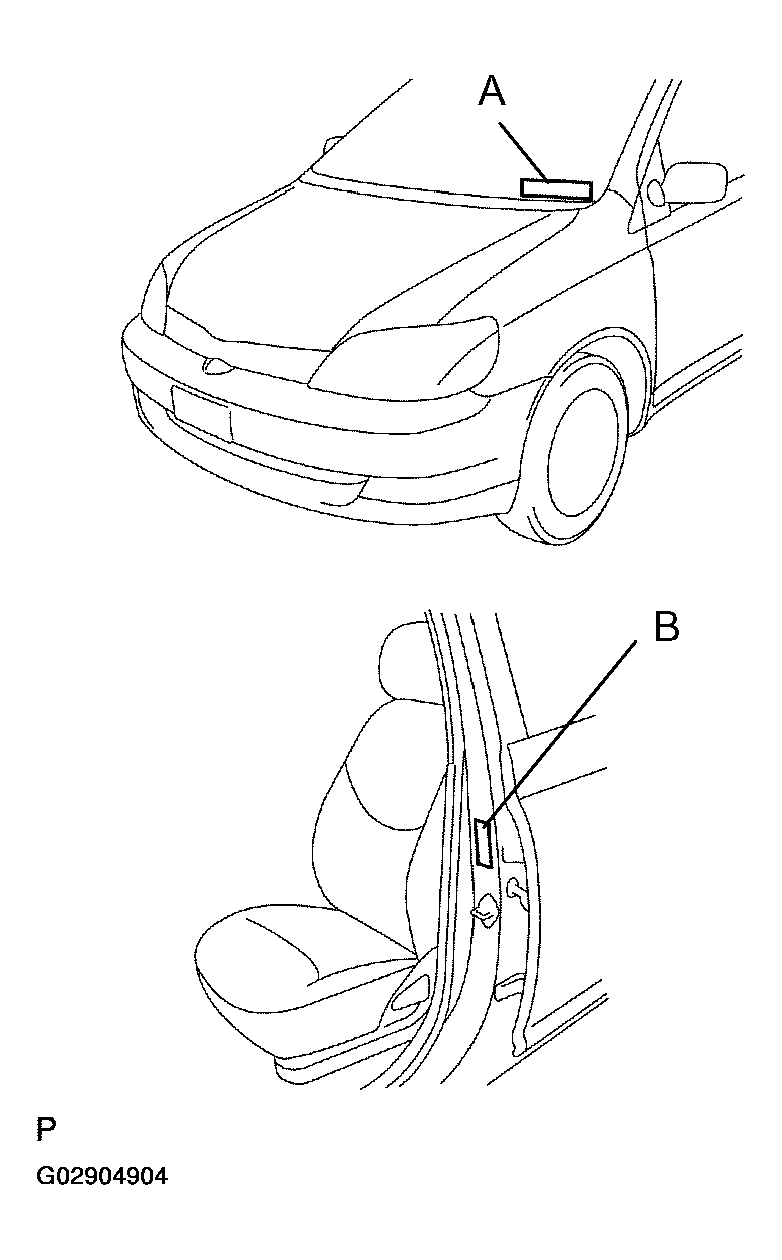

      Fig 1: Identifying Engine Compartment And Certification Label
      G02904904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in Fig 2 .

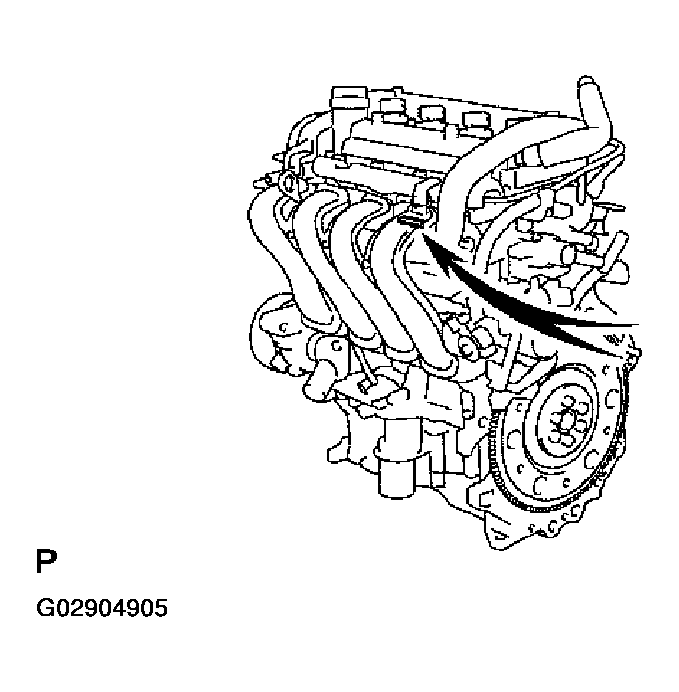

    Fig 2: Identifying Engine Serial Number
    G02904905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
