Fuel Tank And Line: Components

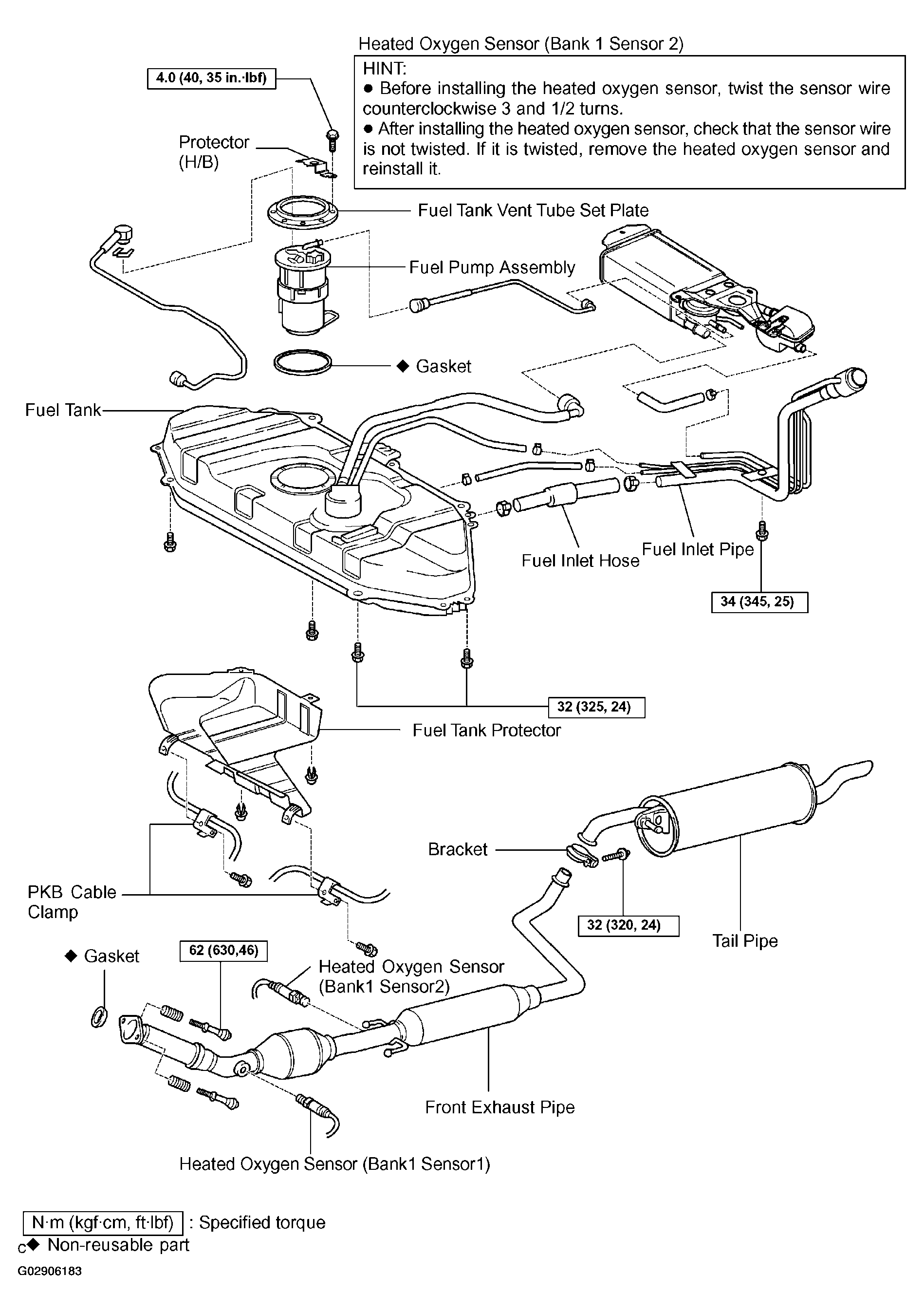

Fig 1: Identifying Components

G02906183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
