DTC P0110: Intake Air Temperature Circuit DTC P0112 Intake Air Temperature Circuit Low Input, DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

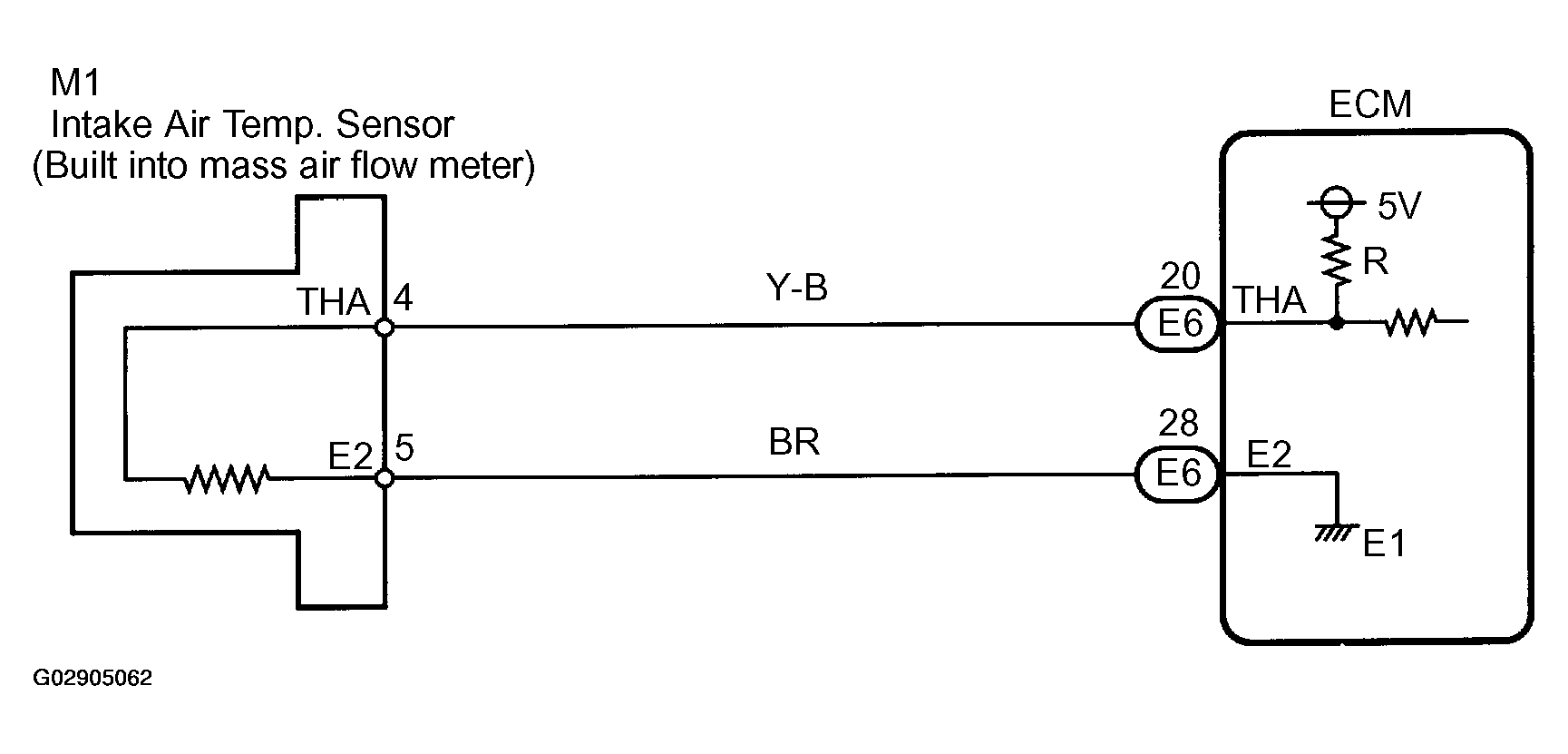

Fig 1: Intake Air Temperature Wiring Diagram
G02905062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
