Inspection Procedure

  1. CHECK WIRE HARNESS
    1. Disconnect the connectors of the power window regulator master switch assy and power window regulator motor assy LH.
    2. Check the continuity between the master switch and regulator motor.

      Standard:

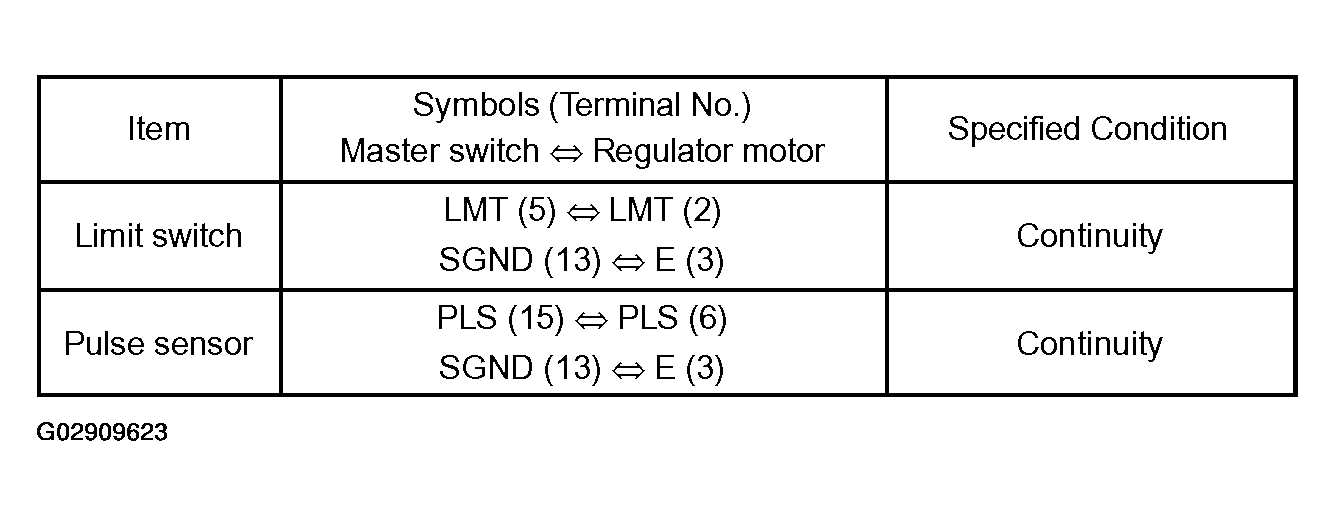

      Fig 1: Identifying Master Switch And Regulator Motor Continuity Table
      G02909623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

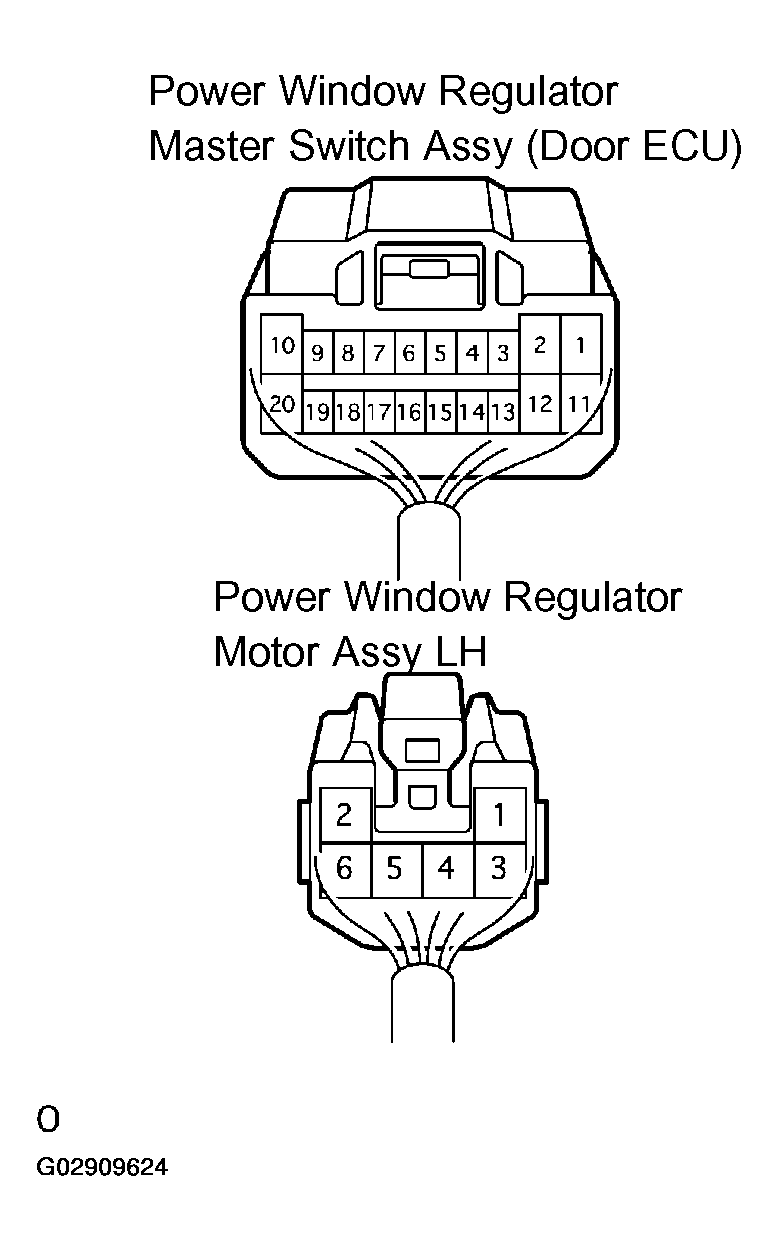

      Fig 2: Disconnecting Power Window Regulator Master Switch Assy
      G02909624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (DRIVER SIDE)
