DTC B1231/31 Jam Protection Limit Switch Circuit On Driver Door, DTC B1232/32 Jam Protection Pulse Switch Circuit On Driver Door: Wiring Diagram

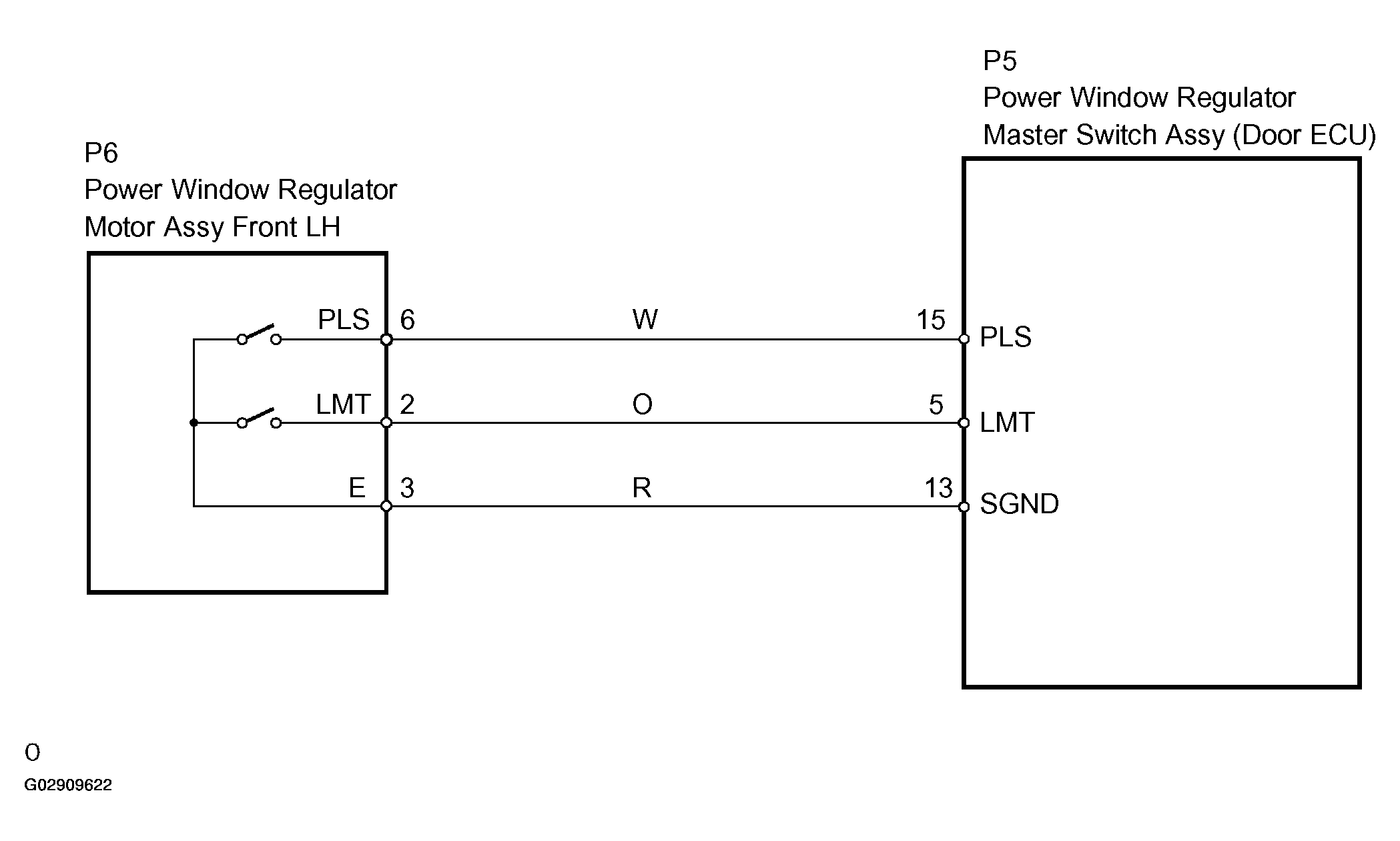

Fig 1: Identifying Window Regulator Motor Assy And Master Switch Assy Wiring Diagram-Power

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
