Driver Power Window Does Not Operate: Wiring Diagram

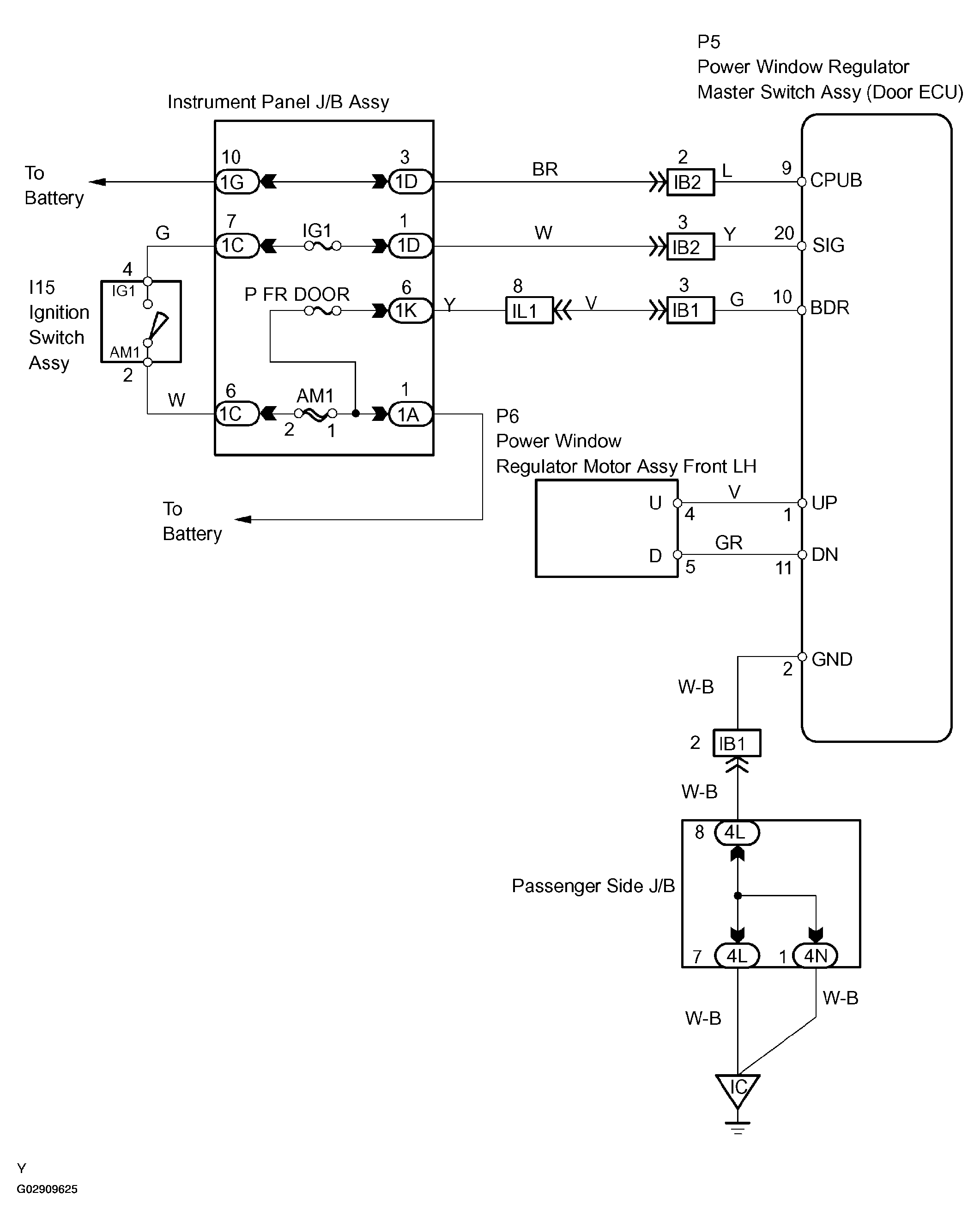

Fig 1: Identifying Power Window Regulator Master Switch Assy (Door ECU) Wiring Diagram
G02909625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
