Remote Operation Via Master Switch Is Impossible In The Other Door (Operation Via Each Door Switch Is Possible): Wiring Diagram

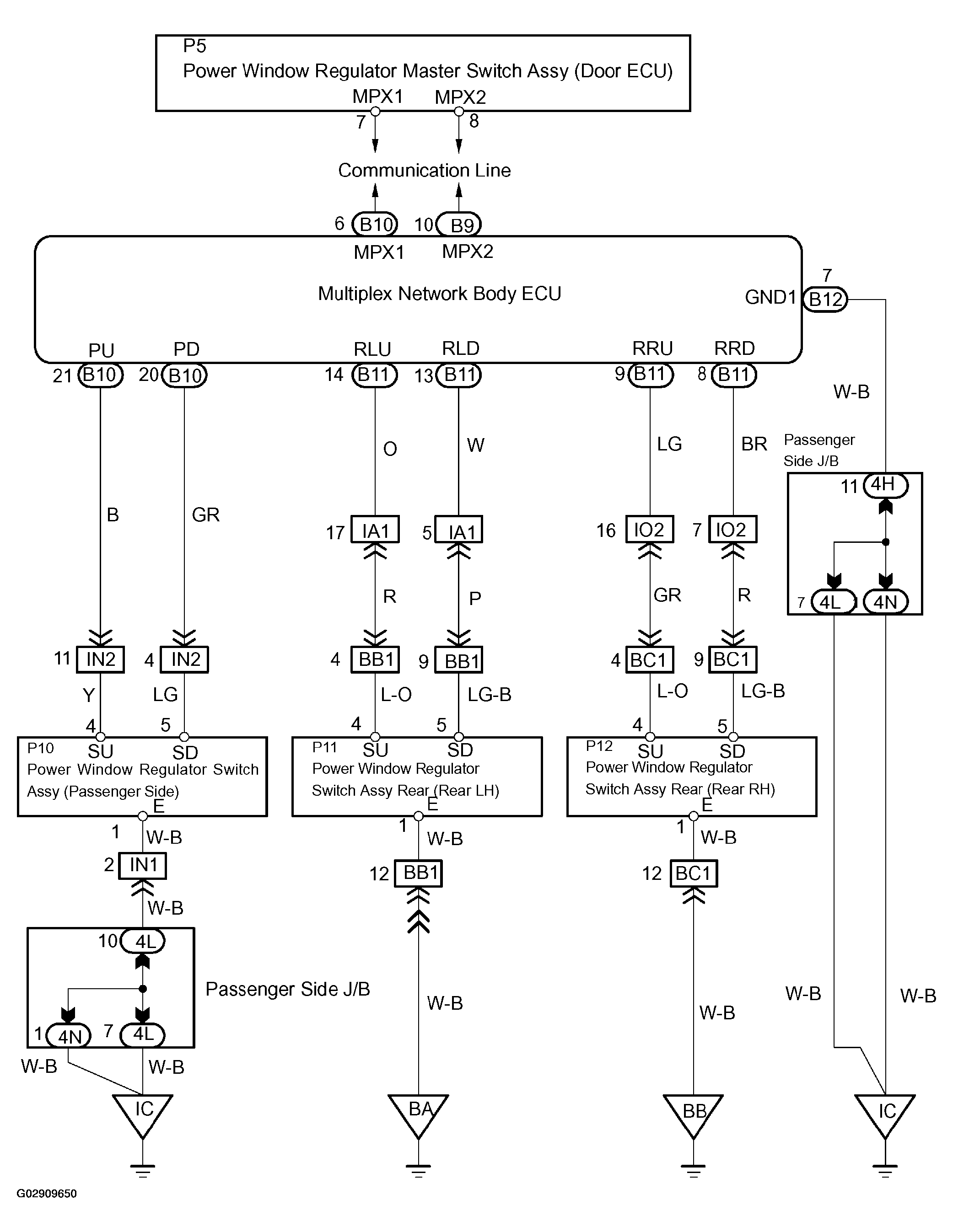

Fig 1: Identifying Power Window Regulator Master Switch Assy (Door Ecu) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
