Inspection Procedure

  1. CHECK FUSE
    1. Check whether the regulator switch fuses D FR DOOR 25 A, P RR DOOR 20 A and D RR DOOR 20 A of inoperative seats are normal.

      HINT:

      • If the fuse for the passenger side door is normal, proceed to OK-A.
      • If the fuse for the rear RH and LH doors is normal, proceed to OK-B.
      • If the fuse for the passenger side door is defective, proceed to NG-A.
      • If the fuse for the rear RH door is defective, proceed to NG-B.
      • If the fuse for the rear LH door is defective, proceed to NG-C.
    1. OK-B: Go to step   6
    2. NG-A: REPLACE FUSE (D FR DOOR 25 A)
    3. NG-B: REPLACE FUSE (P RR DOOR 20 A)
    4. NG-B: REPLACE FUSE (D RR DOOR 20 A)
    5. OK-A: GO TO NEXT STEP.
  2. CHECK POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
    1. Inspect the power source voltage.
      1. Disconnect the regulator switch connector.
      2. Check the voltage between terminal 7 (B) of the regulator switch vehicle's side connector and the body ground.

        Standard: 10-14 V with ignition switch ON

        Fig 1: Identifying Terminal 7(B)
        G02909634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP.
  3. CHECK POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)
    1. Inspect the GND.
      1. Disconnect the regulator switch connector.
      2. Check the continuity between terminal 1 (E) of the regulator switch vehicle's side connector and the body ground.

        Standard: Continuity (constant)

        Fig 2: Identifying Terminal 1(E)
        G02909635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP.
  4. CHECK POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)
    1. Inspect the motor operation.
      1. Disconnect the regulator switch connector.
      2. Inspect the door glass operation when the battery voltage is applied between terminals 3 (U) and 6 (D) of the regulator switch vehicle's side connector.

        Standard:

        Fig 3: Inspecting Door Glass Operation When Battery Voltage Is Applied Between Terminals 3 (U) And 6 (D)
        G02909636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

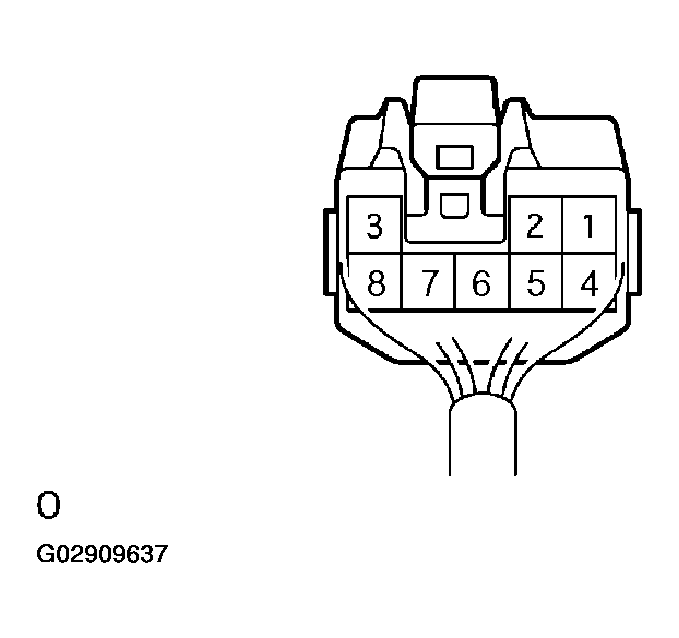

        Fig 4: Identifying Battery Terminal And Operational Direction Table
        G02909637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY
    2. NG: GO TO NEXT STEP.
  5. INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (PASSENGER SIDE)
    1. Inspect the operation of the front LH power window regulator motor assembly.
      1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.

        Standard:

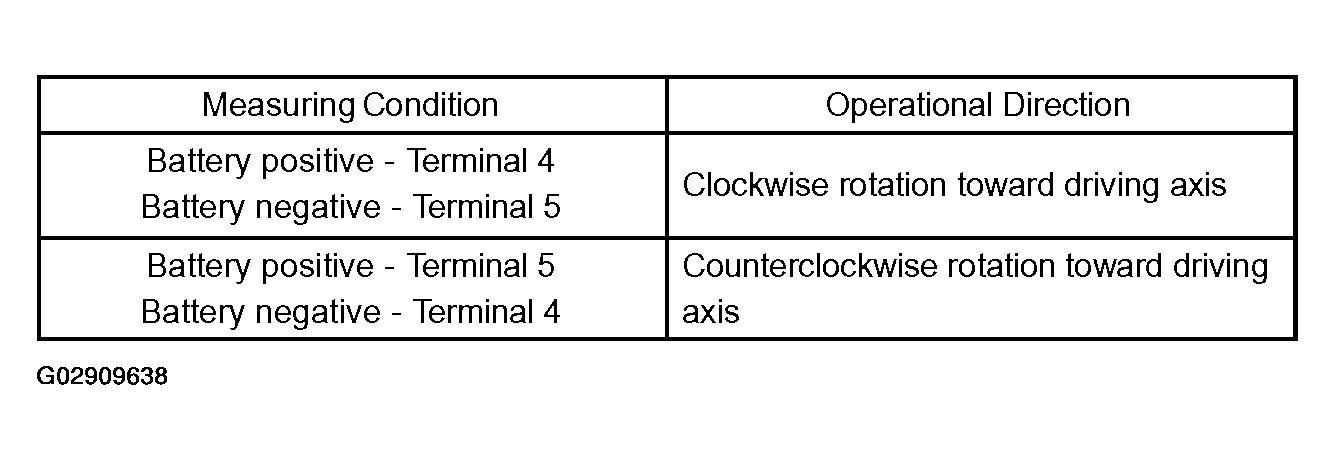

        Fig 5: Inspecting Power Window Regulator Motor Assy Rh (Passenger Side)
        G02909638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

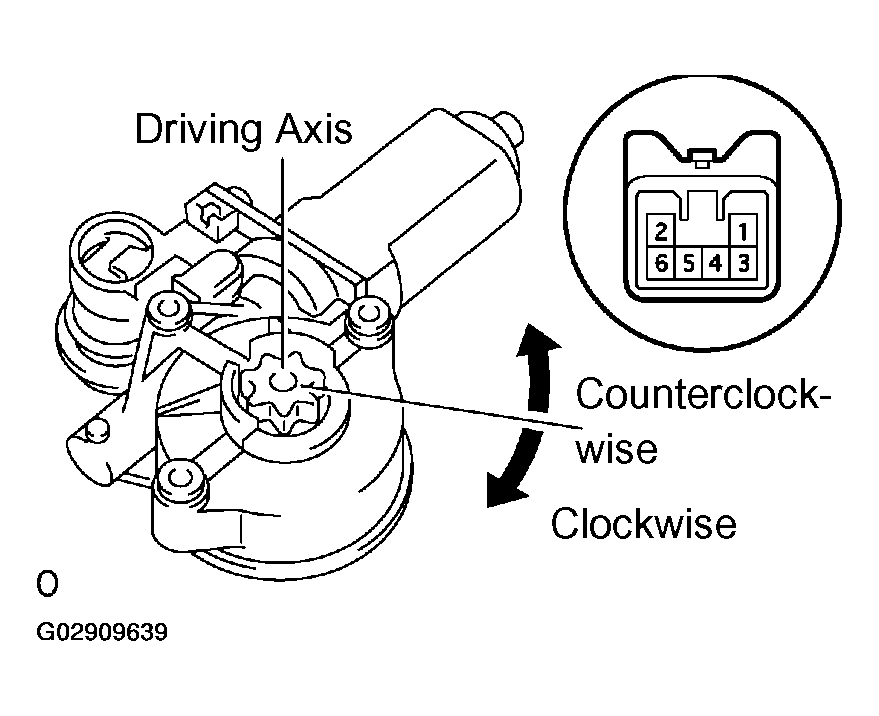

        Fig 6: Identifying Battery Terminal and Operational Direction Table
        G02909639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the PTC operation inside the power window regulator motor.
      NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
      1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
        NOTE: Match the arrow mark of the probe with the current direction.
      2. Set the door glass in the fully closed position.
      3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch is turned UP once again.

        Standard: Approximately 4 - 90 seconds

      4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
      1. OK: REPAIR OR REPLACE HARNESS AND CONNECTOR
      2. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH
  6. CHECK POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH AND LH)
    1. Inspect the power source voltage.
      1. Disconnect the regulator switch connector.
      2. Check the voltage between terminal 7 (+B) of the regulator switch vehicle's side connector and the body ground.

        Standard: 10 - 14 V with ignition switch ON

        Fig 7: Identifying Terminal 7(+B)
        G02909640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP.
  7. CHECK POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH AND LH)
    1. Inspect the GND.
      1. Disconnect the regulator switch connector.
      2. Check the continuity between terminal 1 (E) of the regulator switch vehicle's side connector and the body ground.

        Standard: Continuity (constant)

        Fig 8: Identifying Terminal 1(E)
        G02909641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: Go to step 8 (In case Rear RH side)
    3. OK: Go to step   10  (In case Rear LH side)
  8. CHECK POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)
    1. Inspect the motor operation.
      1. Disconnect the regulator switch connector.
      2. Inspect the door glass operation when the battery voltage is applied between terminals 3 (U) and 6 (D) of the regulator switch vehicle's side connector.

        Standard:

        Fig 9: Inspecting Door Glass Operation When Battery Voltage Is Applied Between Terminals 3 (U) And 6 (D)
        G02909642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 10: Identifying Battery Terminal And Operational Direction Table
        G02909643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR
    2. NG: GO TO NEXT STEP.
  9. INSPECT POWER WINDOW REGULATOR MOTOR ASSY RH (REAR RH)
    1. Inspect the operation of the power window regulator motor assy RH (Rear RH side).
      1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.

        Standard:

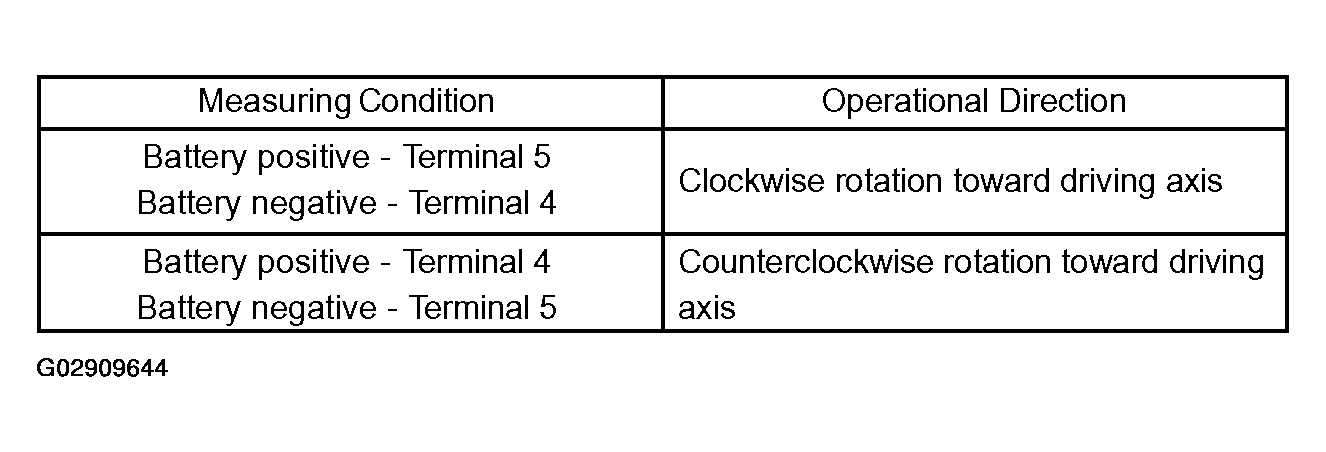

        Fig 11: Inspecting Power Window Regulator Motor Assy Rh (Rear Rh)
        G02909644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

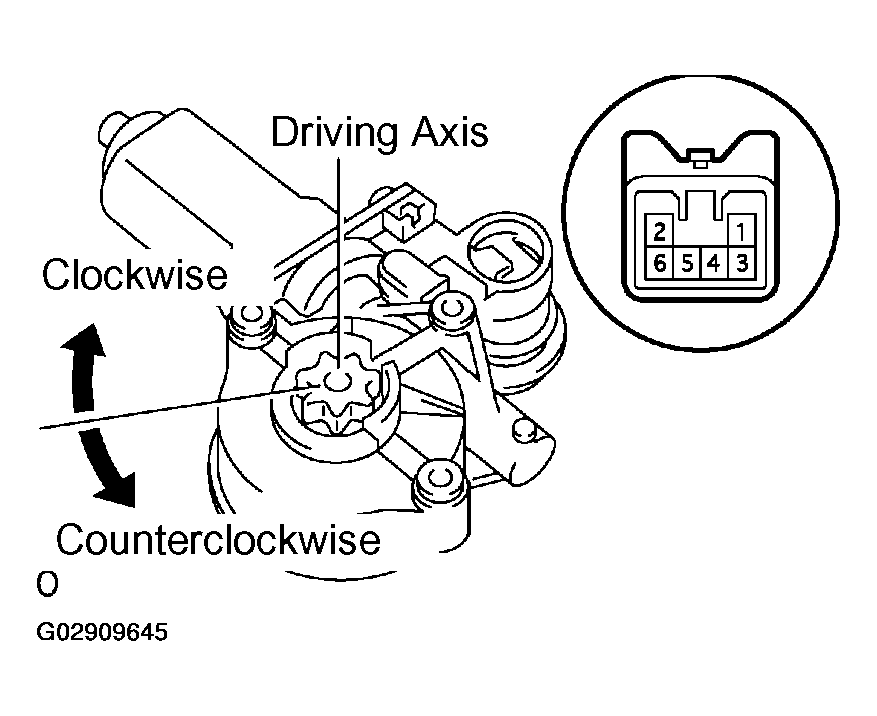

        Fig 12: Identifying Battery Terminal And Operational Direction Table
        G02909645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the PTC operation inside the power window regulator motor.
      NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
      1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
        NOTE: Match the arrow mark of the probe with the current direction.
      2. Set the door glass in the fully closed position.
      3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch is turned UP once again.

        Standard: Approximately 4 - 90 seconds

      4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
    1. OK: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY RH
  10. CHECK POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
    1. Inspect the motor operation.
      1. Disconnect the regulator switch connector.
      2. Inspect the door glass operation when the battery voltage is applied between terminals 3 (U) and 6 (D) of the regulator switch vehicle's side connector.

        Standard:

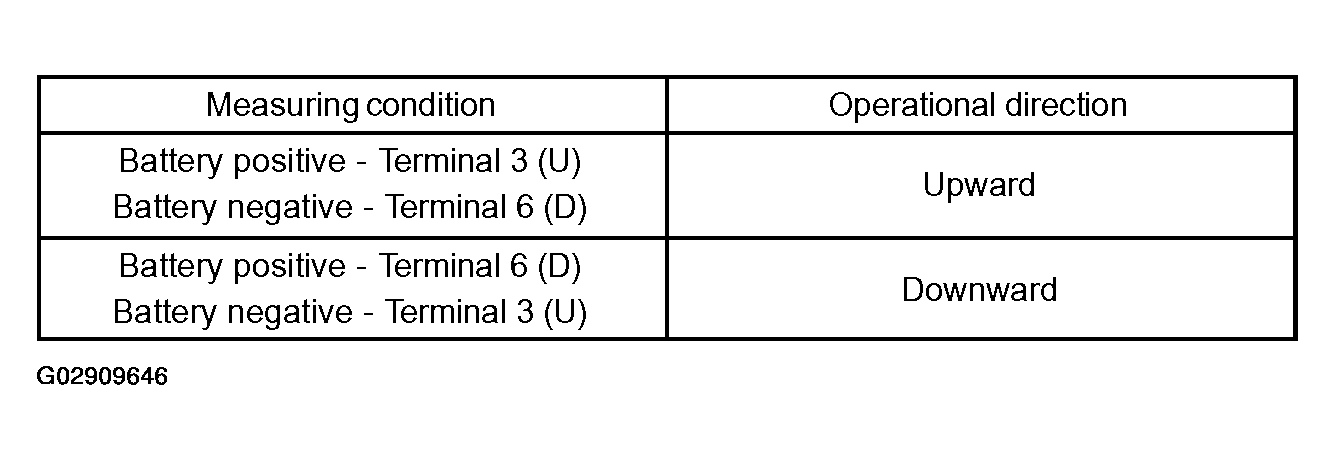

        Fig 13: Inspecting Door Glass Operation When Battery Voltage Is Applied Between Terminals 3 (U) And 6 (D)
        G02909646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

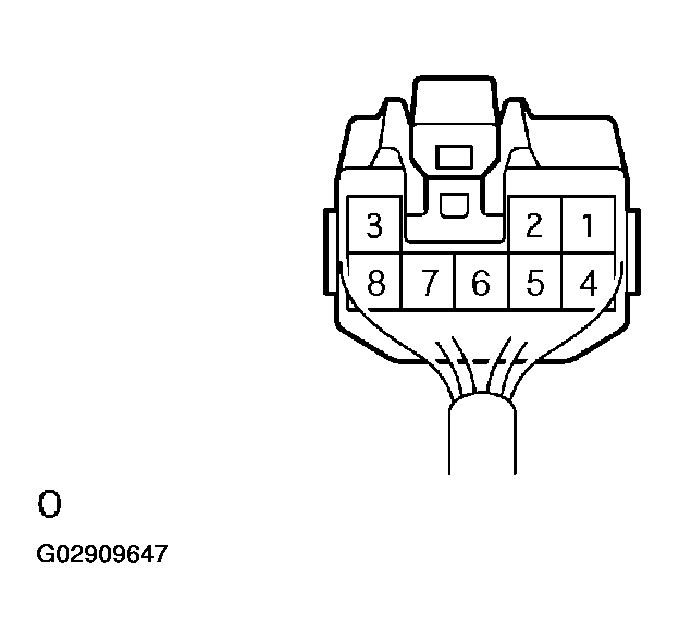

        Fig 14: Identifying Battery Terminal And Operational Direction Table
        G02909647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR
    2. NG: GO TO NEXT STEP.
  11. INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH (REAR LH)
    1. Inspect the operation of the power window regulator motor assy LH (Rear LH side).
      1. Check that the motor operates smoothly when the battery voltage is applied to each terminal of the connector.

        Standard:

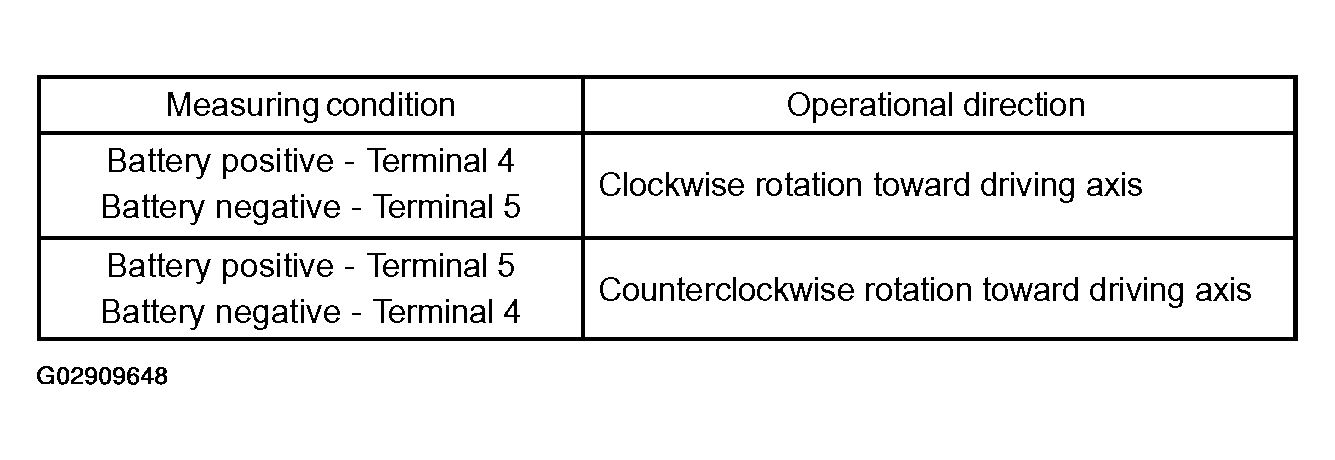

        Fig 15: Inspecting Power Window Regulator Motor Assy Lh (Rear Lh)
        G02909648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

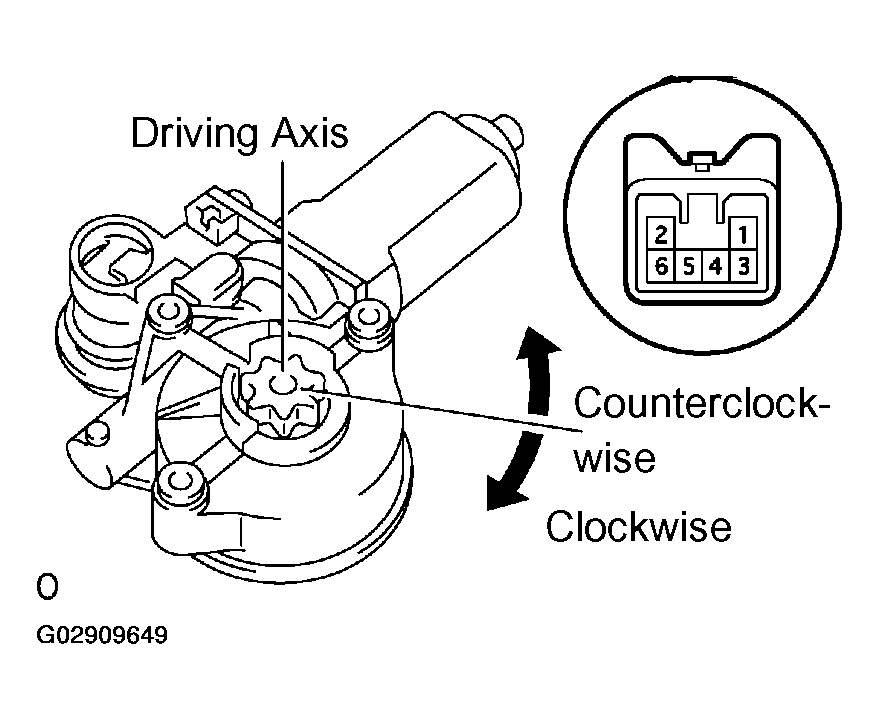

        Fig 16: Identifying Battery Terminal And Operational Direction Table
        G02909649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the PTC operation inside the power window regulator motor.
      NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
      1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 1 or 2.
        NOTE: Match the arrow mark of the probe with the current direction.
      2. Set the door glass in the fully closed position.
      3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch is turned UP once again.

        Standard: Approximately 4 - 90 seconds

      4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.
    1. NG: REPLACE POWER WINDOW REGULATOR / MOTOR ASSY LH
    2. OK: REPAIR OR REPLACE HARNESS AND CONNECTOR
