Windows Cannot Be Operated Via Regulator Switch At Each Seat: Wiring Diagram

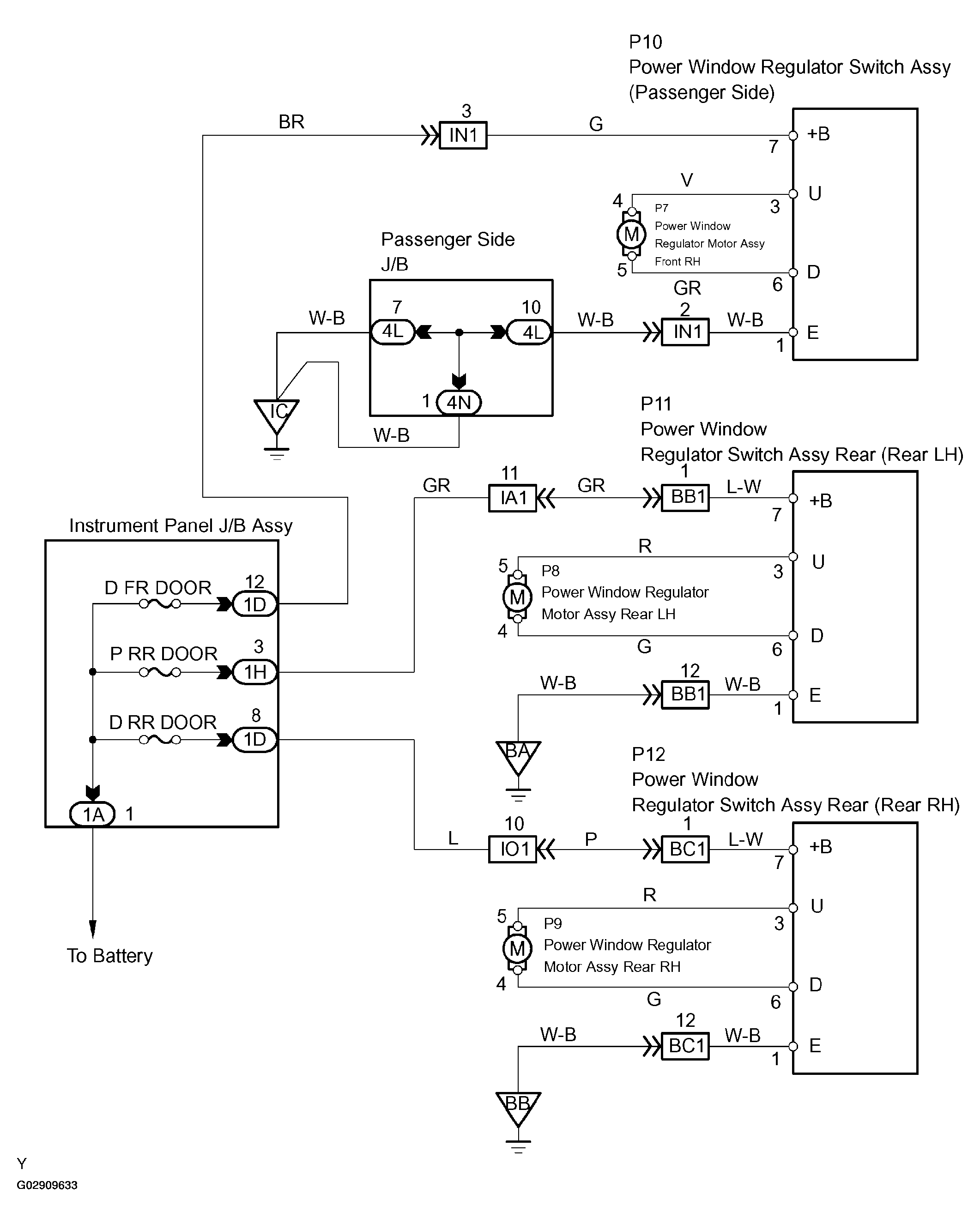

Fig 1: Identifying Power Window Regulator Switch Assy (Passenger Side) Wiring Diagram
G02909633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
