Engine Control Component Parts Location

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

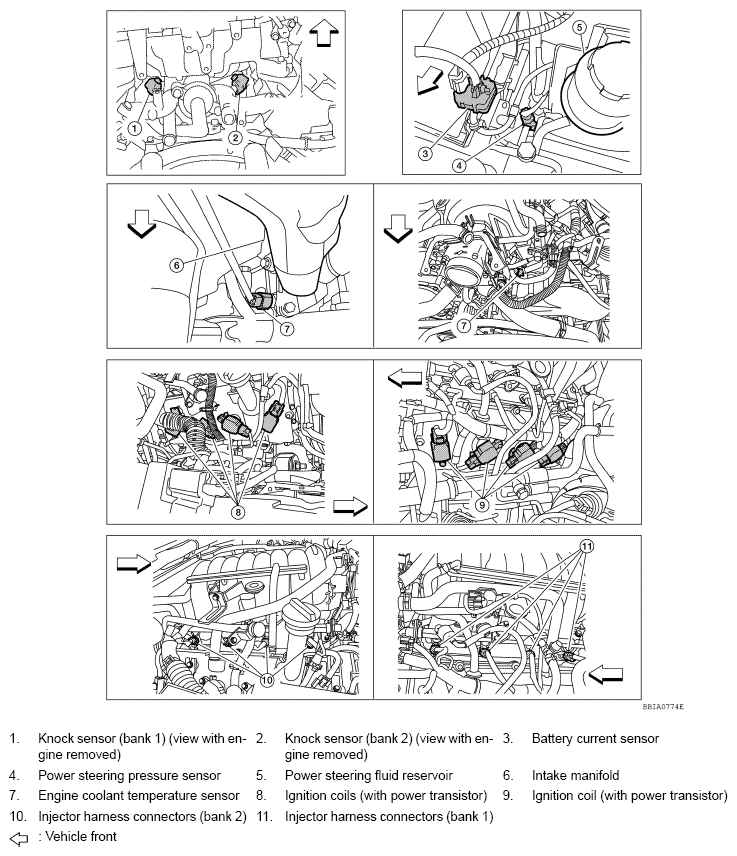

Fig 1: Engine Control Component Parts Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

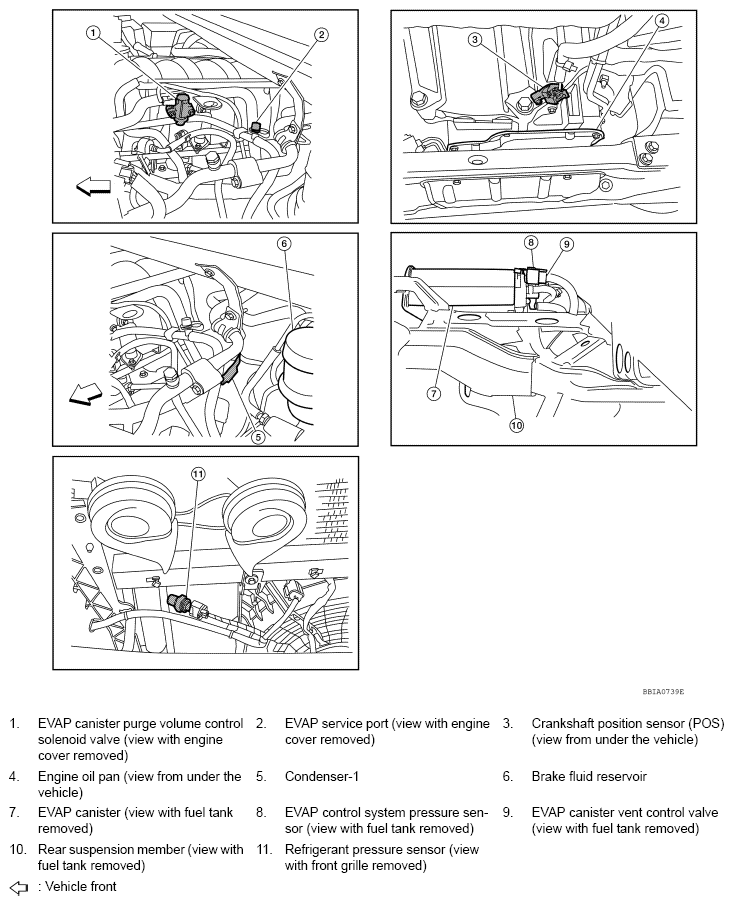

Fig 2: Engine Control Component Parts Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

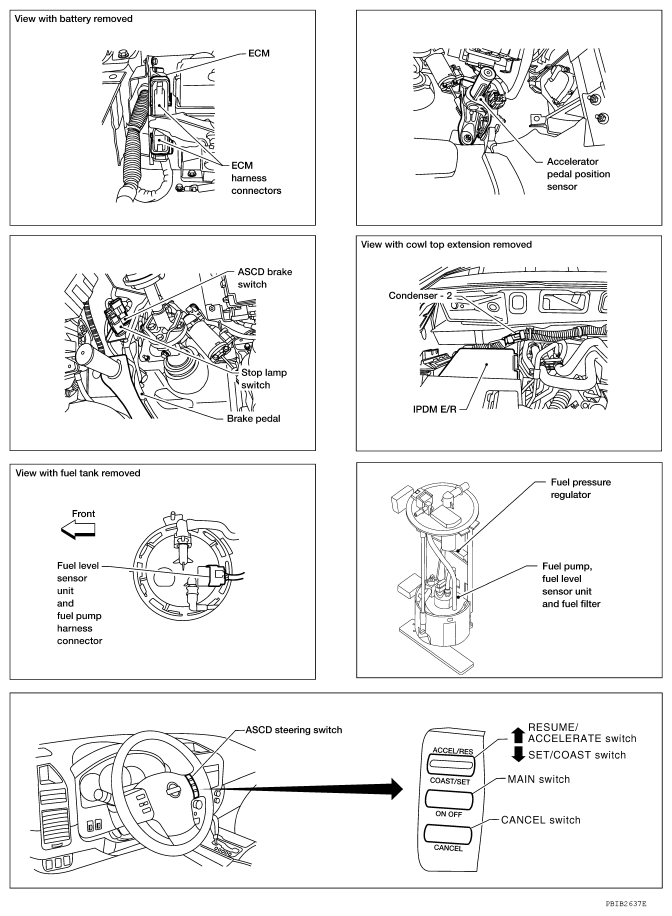

Fig 3: Engine Control Component Parts Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

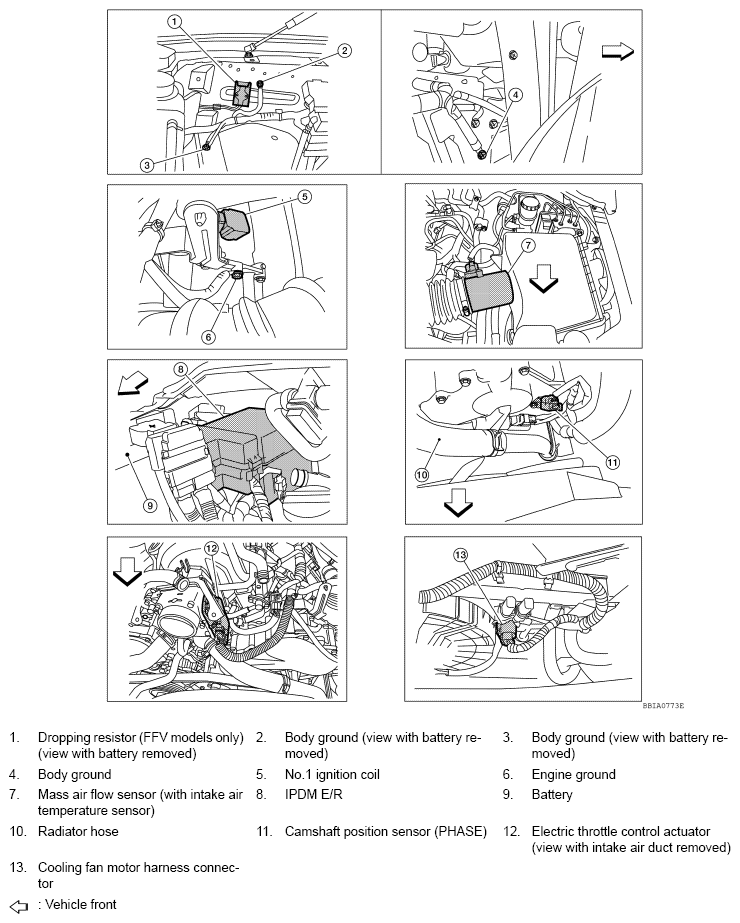

Fig 4: Engine Control Component Parts Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

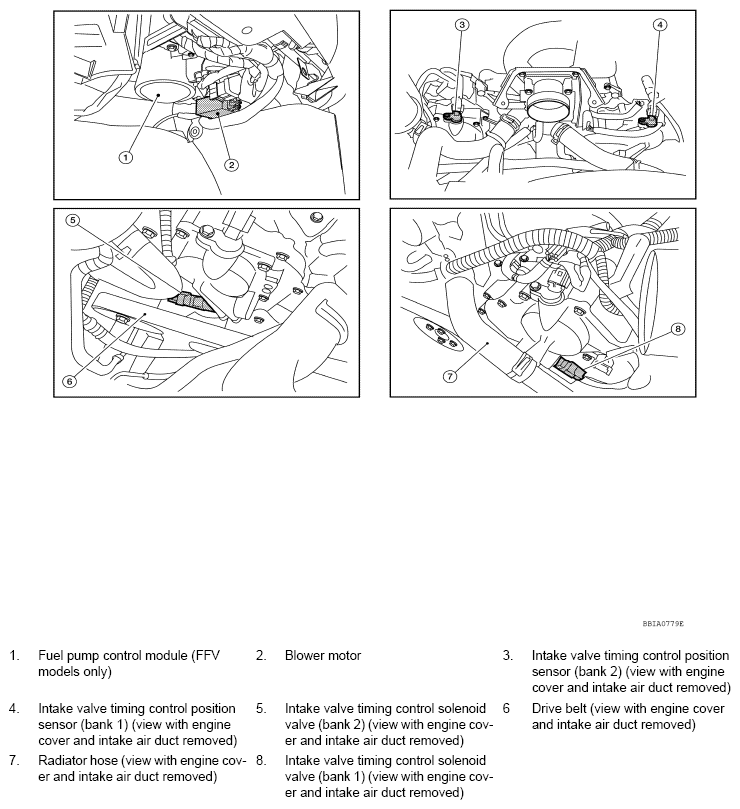

Fig 5: Engine Control Component Parts Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

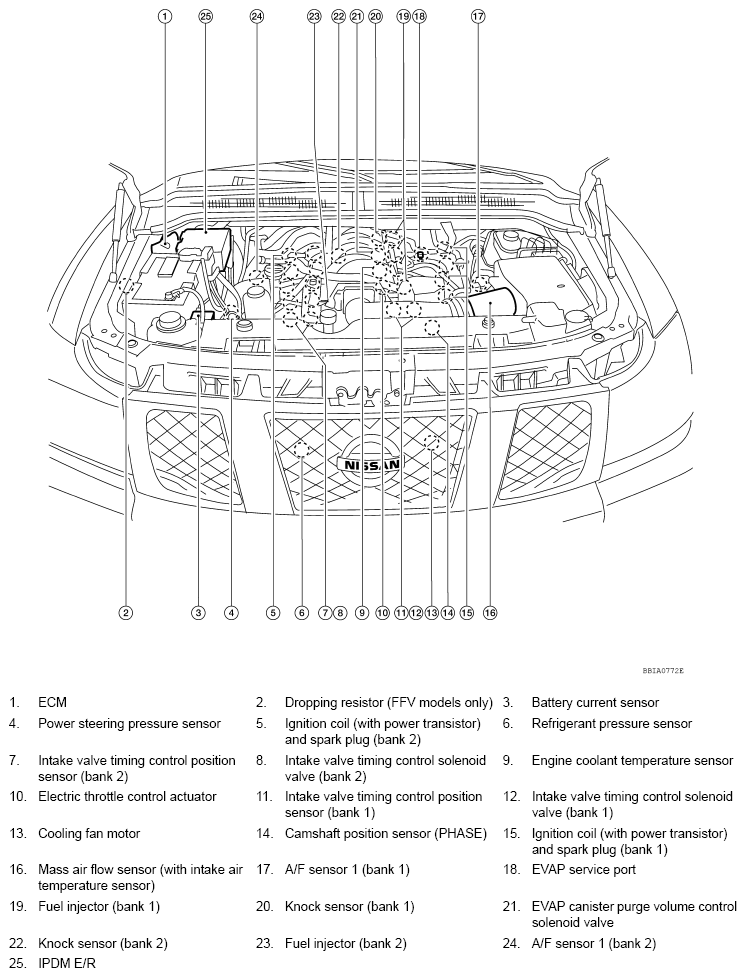

Fig 6: Engine Control Component Parts Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

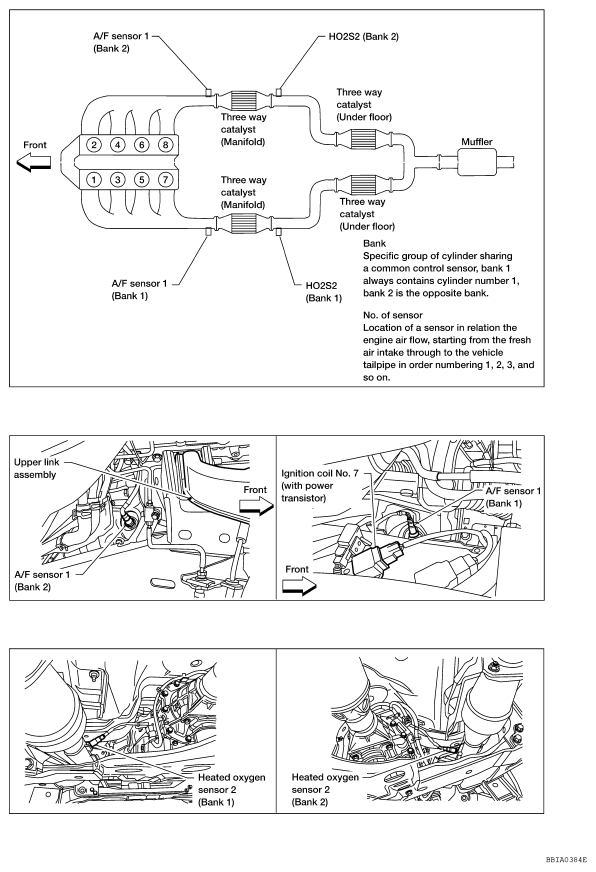

Fig 7: Engine Control Component Parts Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
