Fuel Pressure: Specifications

FUEL PUMP PERFORMANCE

Application (1) Pressure psi (kg/cm2 )
Highlander 44-50 (3.1-3.5)
(1) Check fuel pressure with engine off and using Toyota hand-held tester connected to data link connector No. 3 with ignition on to activate fuel pump or remove the circuit opening relay from the relay box sub-assembly (R/B No. 1) and connect a jumper wire to socket terminals No. 3 and No. 5 of the relay box sub-assembly. See Fig 1.

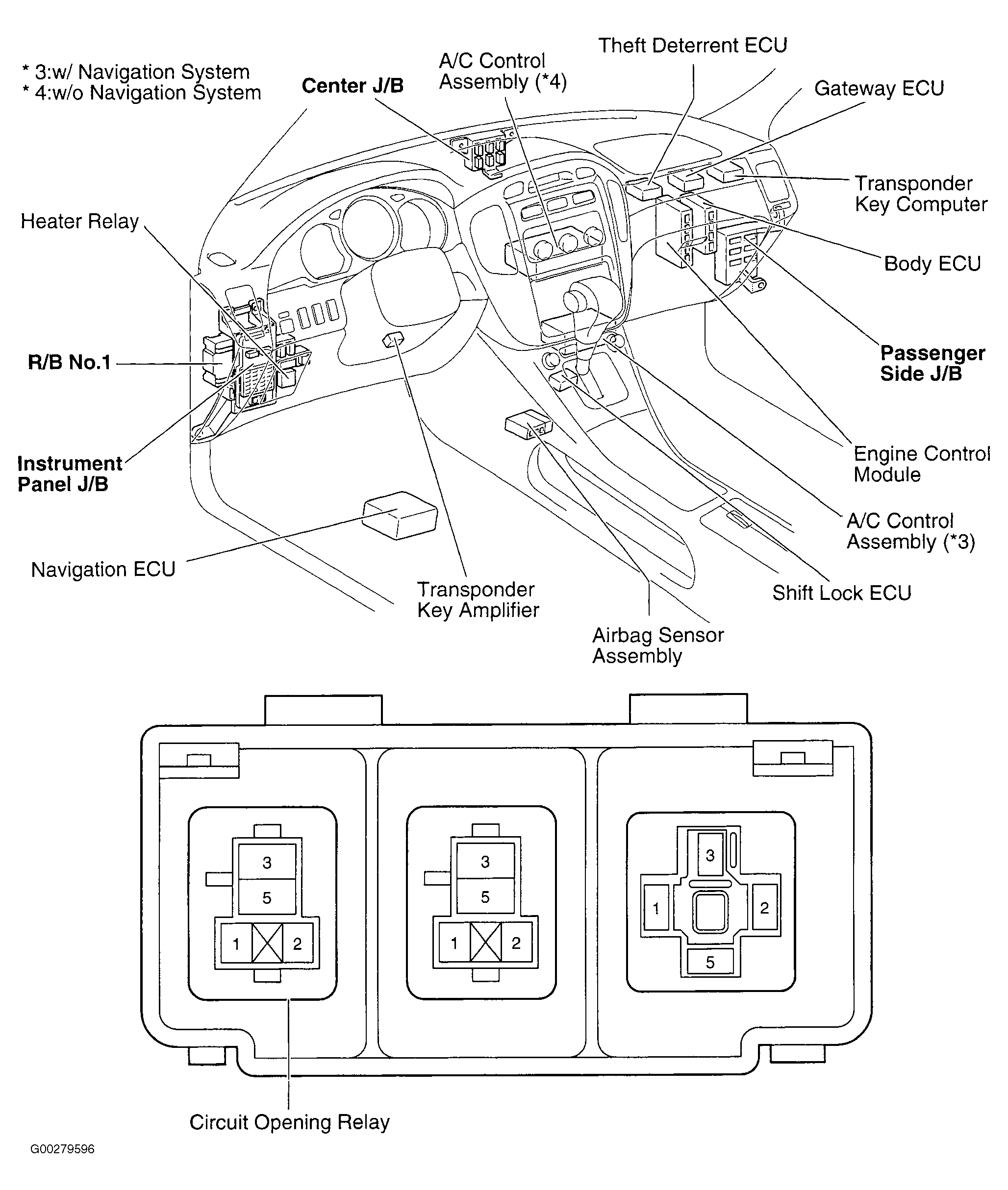

Fig 1: Locating R/B No. 1 & Circuit Opening Relay
G00279596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
