Steering Angle Sensor: Replacement

  1. PRECAUTION (SEE  AIR BAG SAFETY PRECAUTIONS  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE HORN BUTTON ASSY (SEE  HORN  )
  5. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  6. REMOVE STEERING COLUMN COVER UPPER (See  OVERHAUL  )
  7. REMOVE SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE  )
  8. REMOVE STEERING SENSOR
    1. Release 6 claw fittings and remove the steering sensor from the spiral cable.

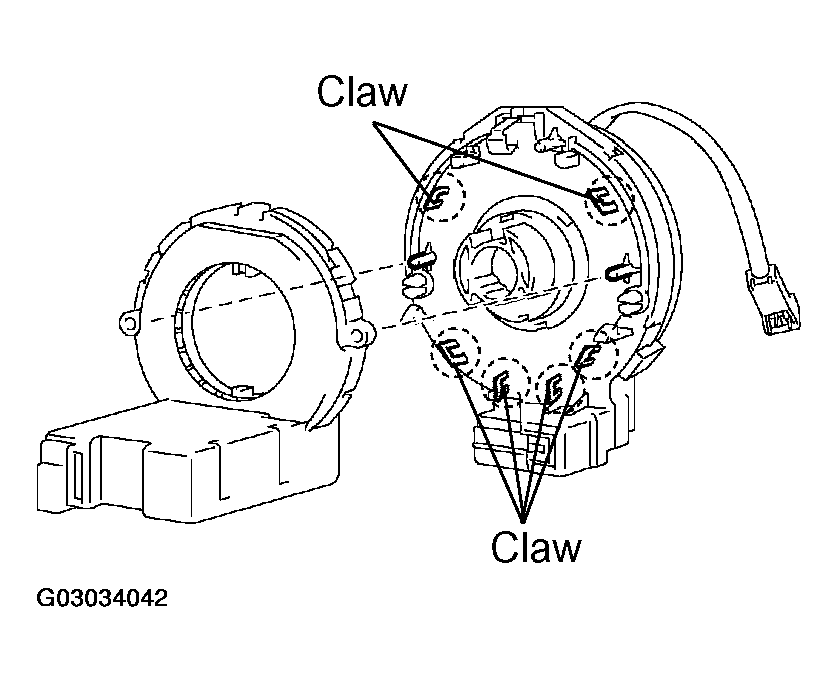

    Fig 1: Releasing Claw Fittings And Removing Steering Sensor
    G03034042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL STEERING SENSOR
    1. Install the steering sensor to the spiral cable.
    NOTE:
    • Install the claw securely.
    • Do not damage the claw.
    Fig 2: Installing Steering Sensor To Spiral Cable
    G03034043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. ADJUST CENTER FRONT WHEEL
  11. INSTALL SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE  )
  12. CENTER SPIRAL CABLE (See  SPIRAL CABLE  )
  13. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
  14. INSTALL HORN BUTTON ASSY (SEE  HORN  )
  15. INSPECT STEERING WHEEL CENTER POINT
  16. INSPECT HORN BUTTON ASSY (See  HORN  )
  17. CONNECT BATTERY NEGATIVE TERMINAL
  18. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSTIC TROUBLE CODE CHART  )
