Fuel Injector ASSY (2AZ-FE): Components

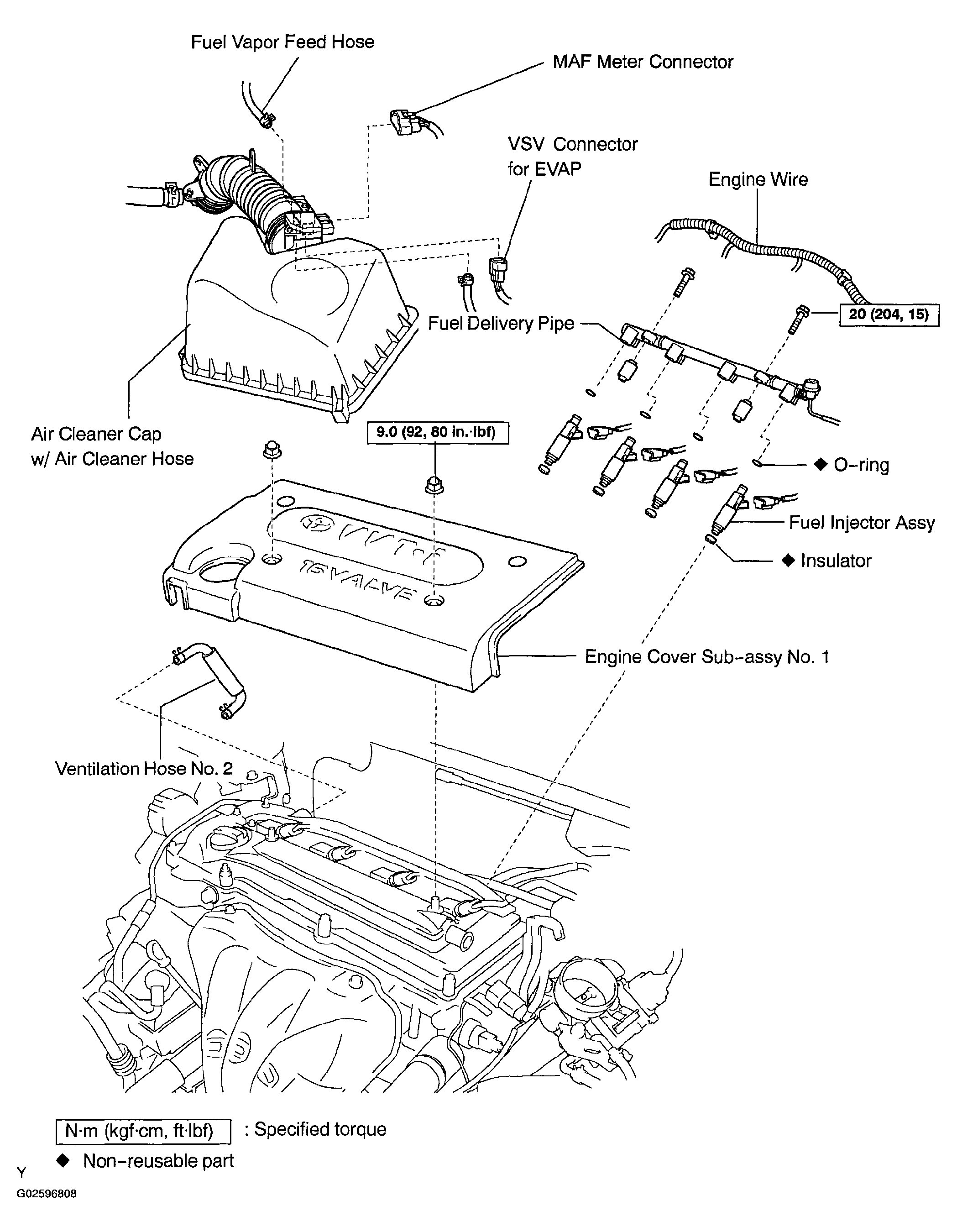

Fig 1: Identifying Fuel Injector Assy Components (2AZ-FE)
G02596808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
