Neutral Start Switch Circuit: Wiring Diagram

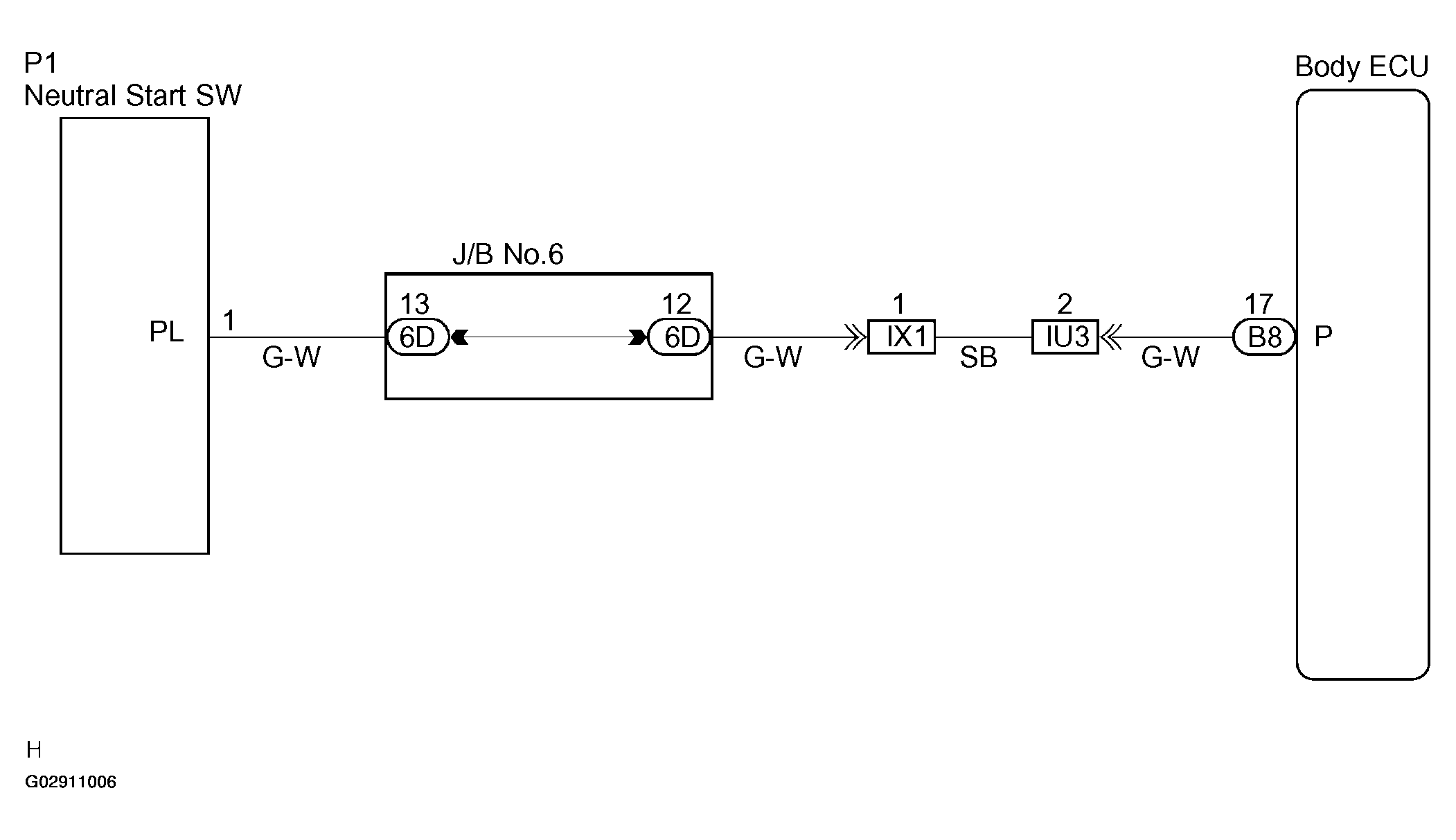

Fig 1: Neutral Start Switch Wiring Diagram
G02911006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
