Parts Location

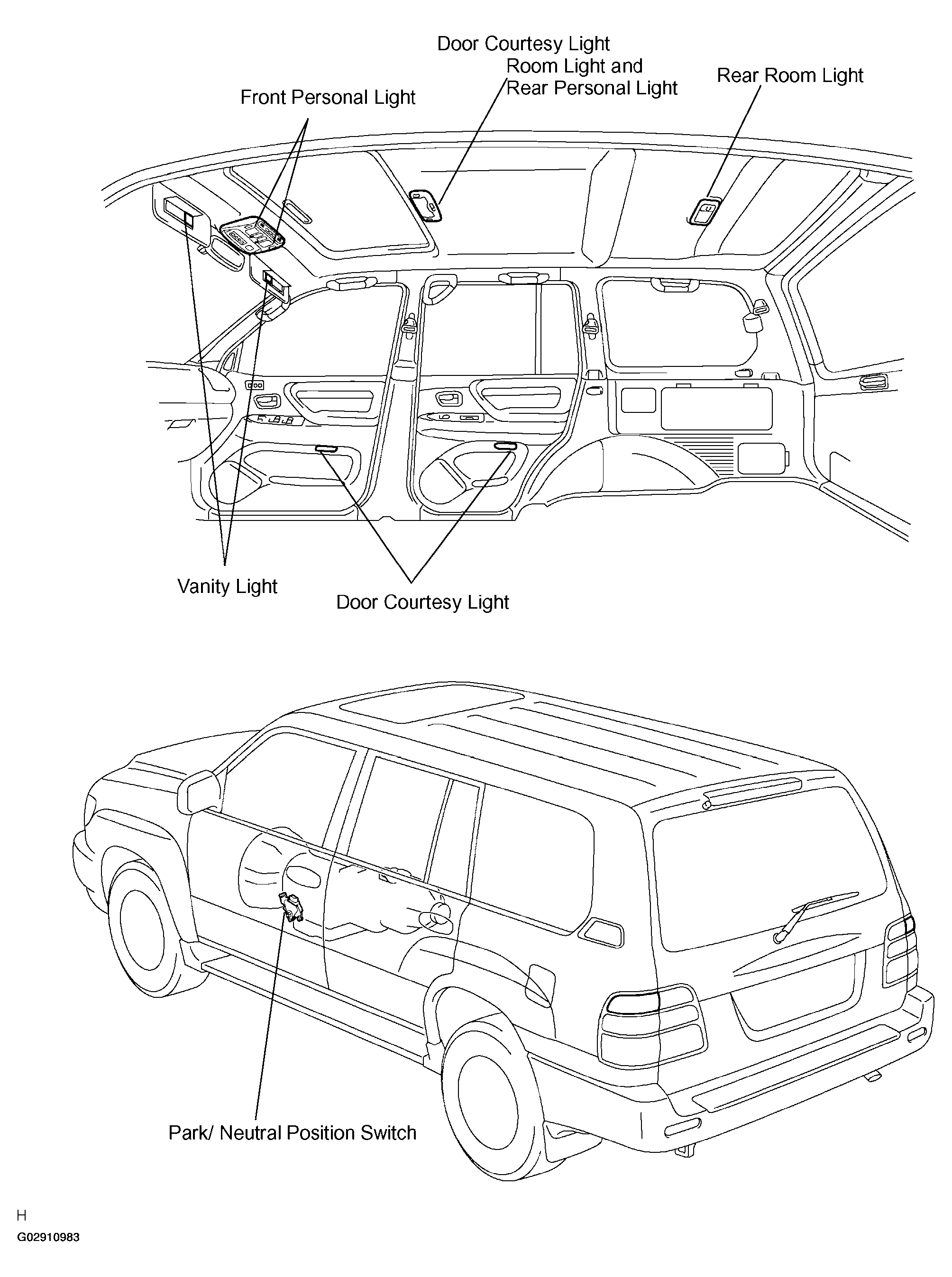

Fig 1: Identifying Body Control Systems Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

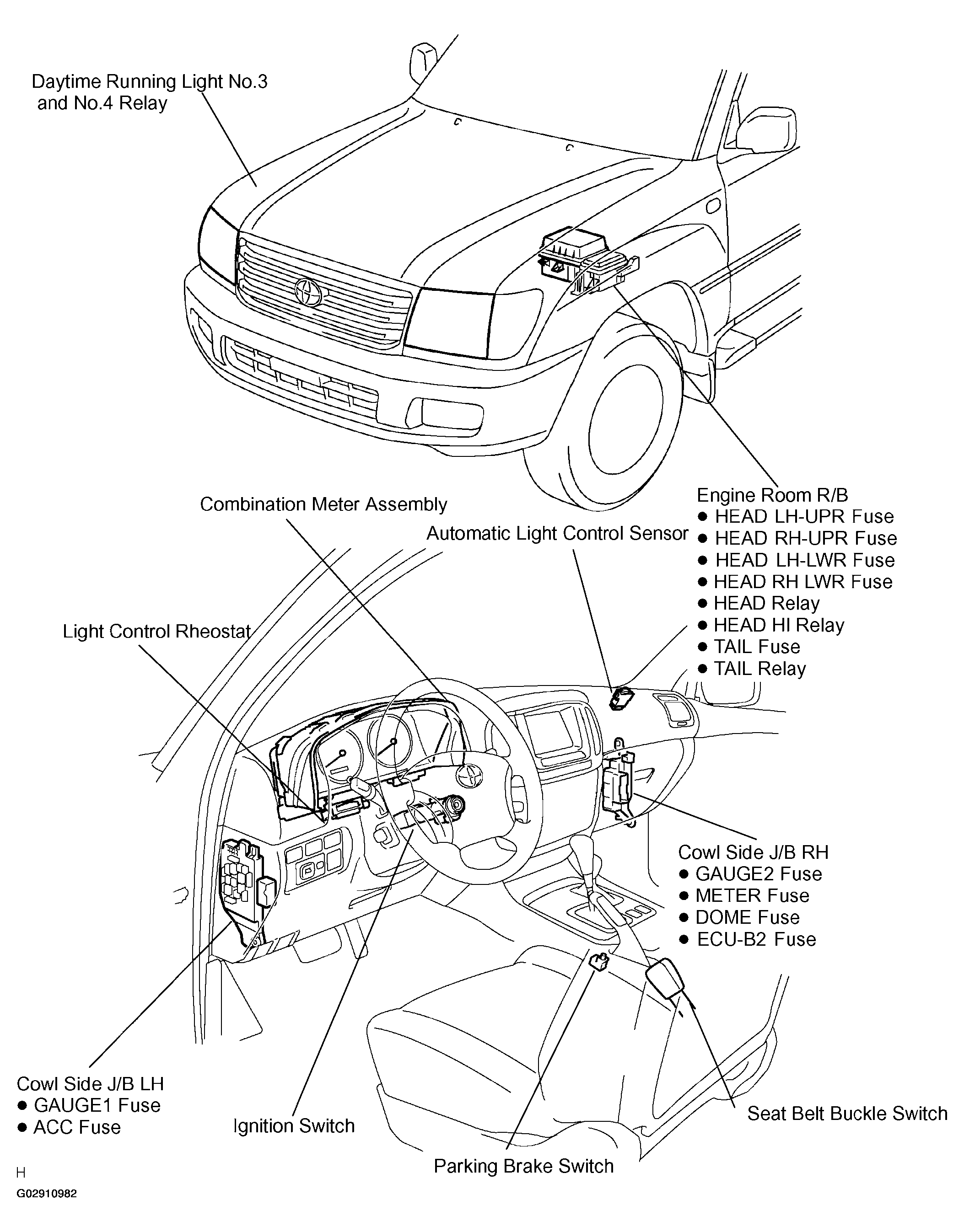

Fig 2: Identifying Body Control Systems Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
