Problem Symptoms Table

LIGHTING SYSTEM:

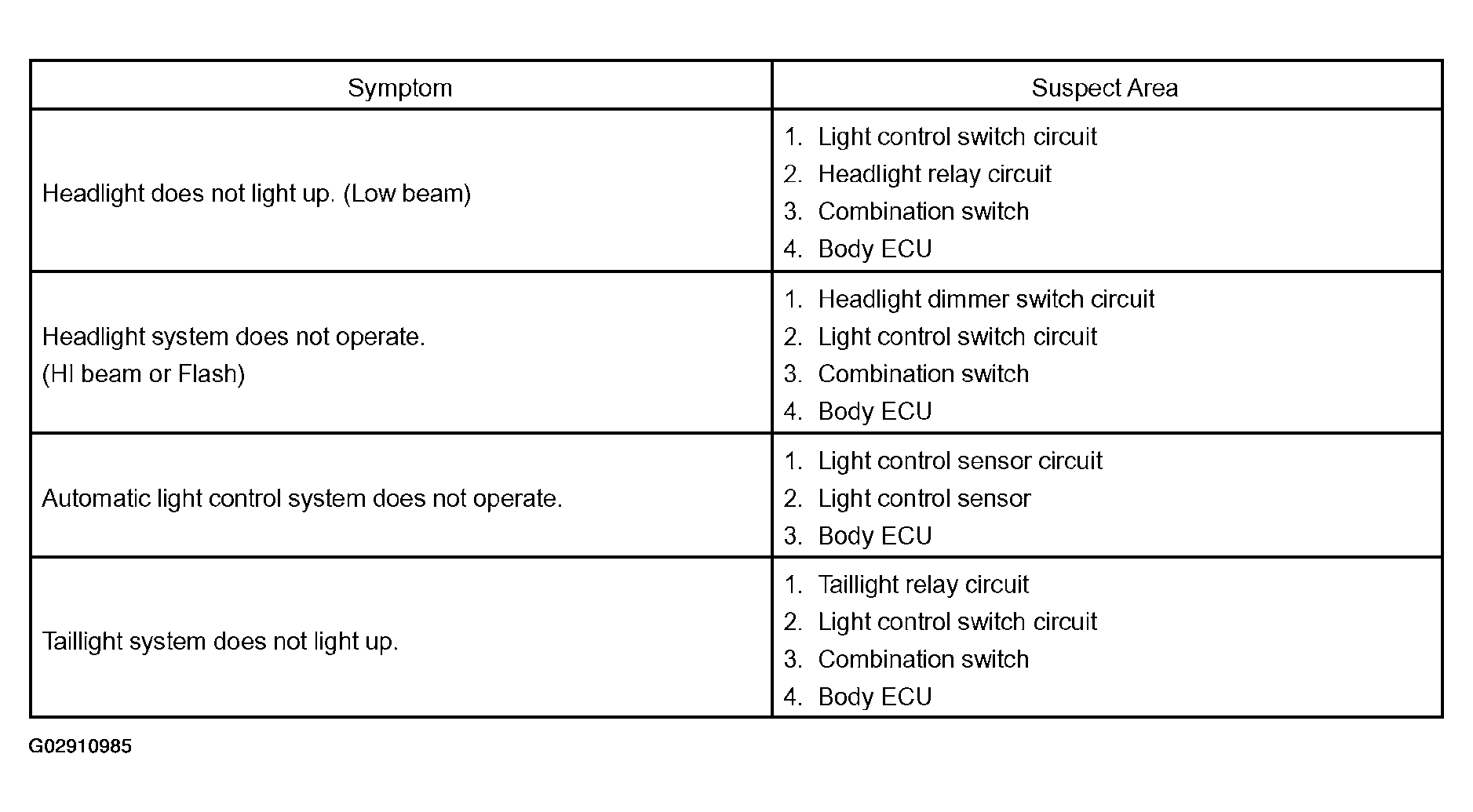

Fig 1: Lighting System Problem Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ILLUMINATION LIGHT SYSTEM:

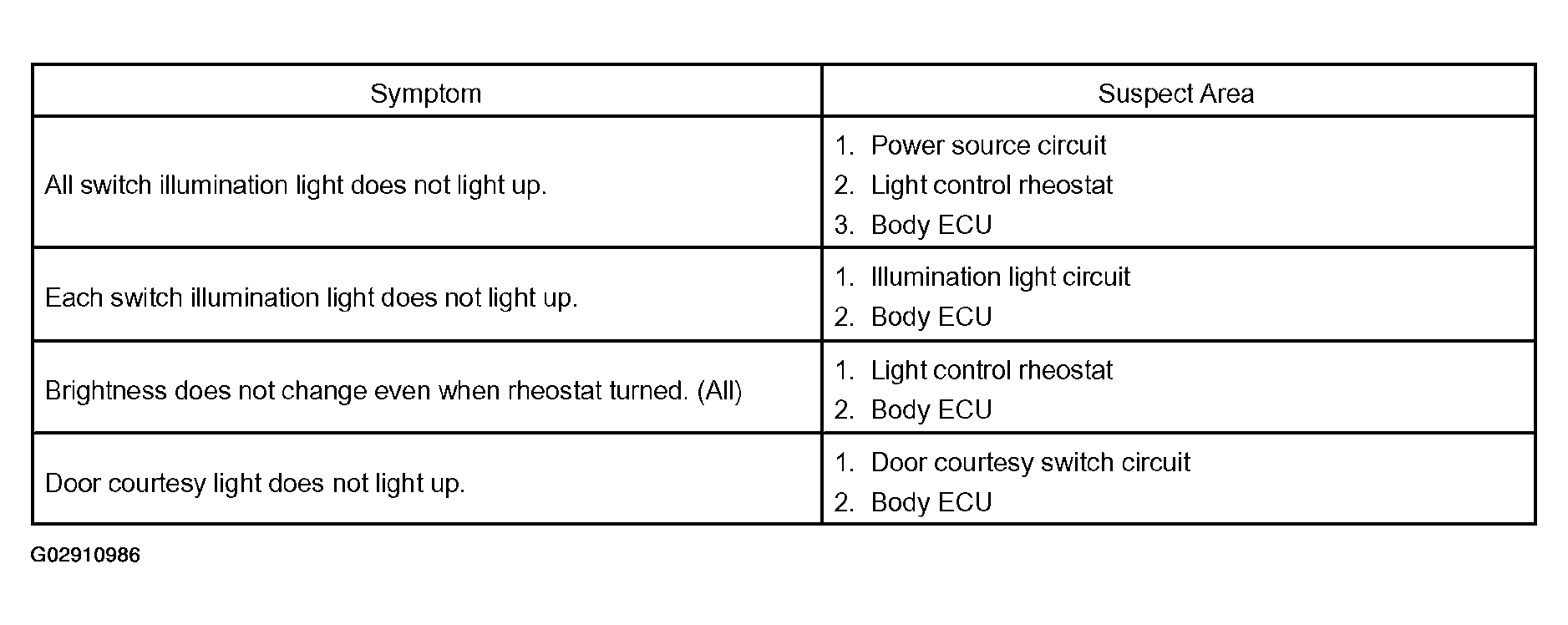

Fig 2: Illumination Light System Problem Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SEAT BELT SYSTEM:

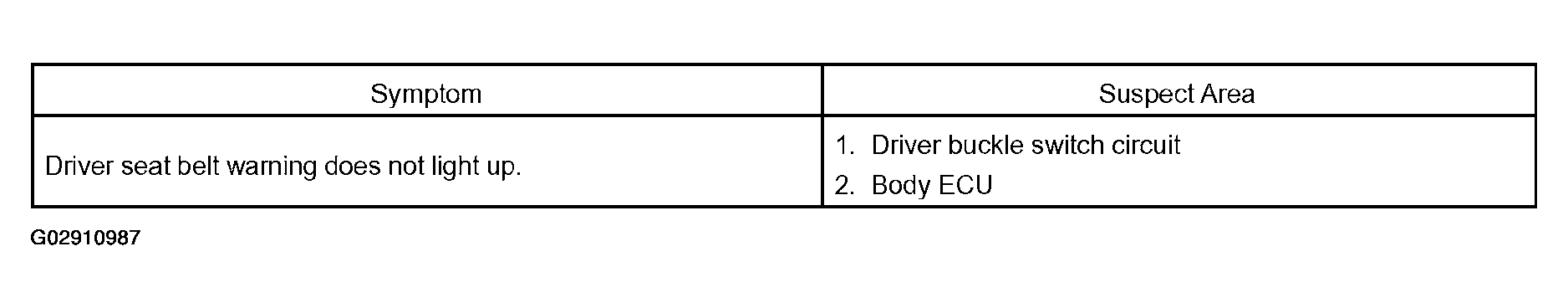

Fig 3: Driver Seat Belt System Problem Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK CONTROL SYSTEM:

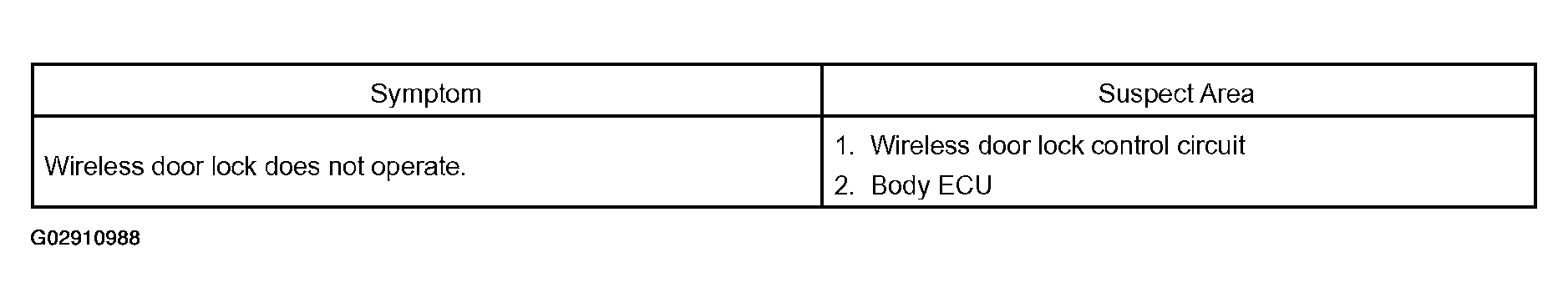

Fig 4: Wireless Door Lock Control System Problem Symptoms

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OTHERS:

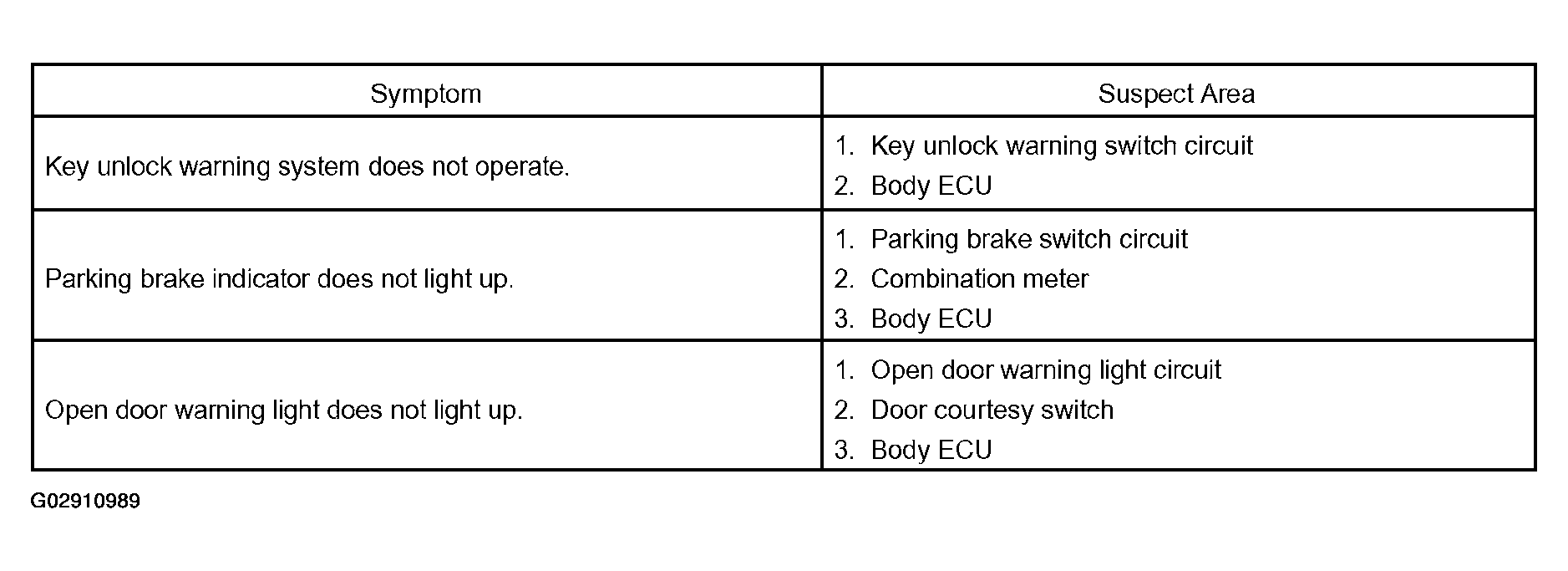

Fig 5: Others Problem Symptom

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
