Power Rear Quarter Window System: Inspection

INSPECT POWER QUARTER WINDOW SWITCH CONTINUITY

Power Quarter Window Switch Continuity

Switch position	Tester connection	Specified condition
CLOSE	3 - 6 4 - 5	Continuity
OFF	-	Continuity
OPEN	3 - 4 5 - 6	Continuity
Illumination Circuit	1 - 2	Continuity

If continuity is not as specified, replace the switch.

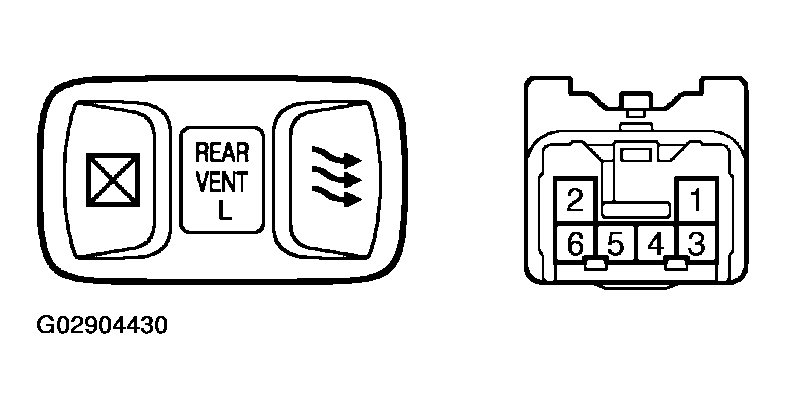

Fig 1: Inspecting Power Quarter Window Switch Continuity

G02904430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Left side:
1. INSPECT POWER VENT WINDOW MOTOR OPERATION

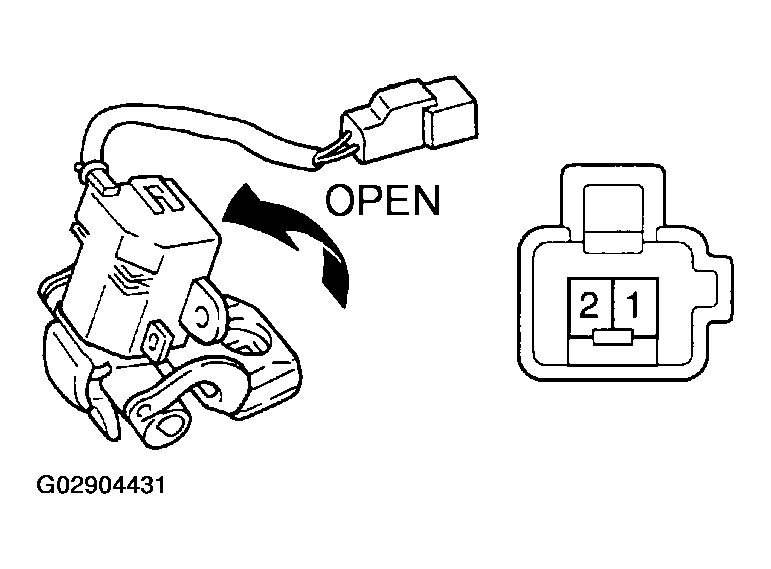

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the window link moves to OPEN position.

  Fig 2: Checking Window Link Position (Left Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

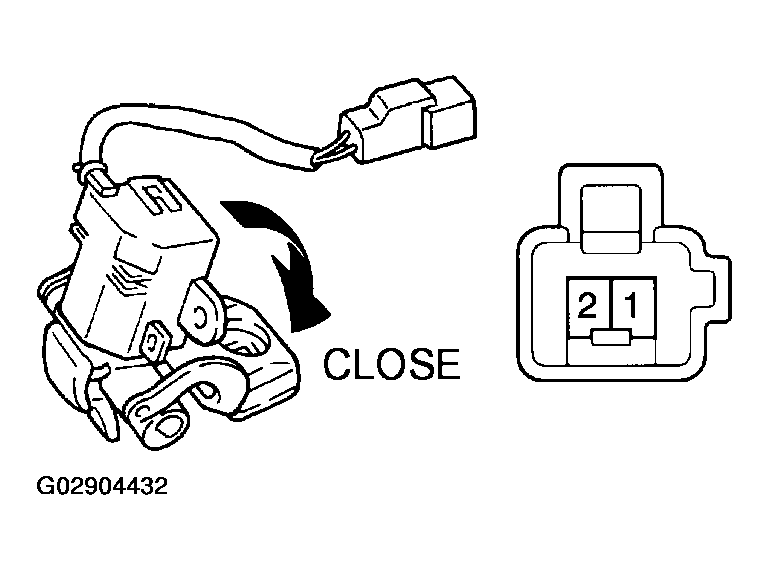

2. Remove the polarity and check that the window link moves to CLOSE position.
If operation is not as specified, replace the window motor.

Fig 3: Checking Window Link Position (Left Side) By Removing Polarity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Right side:
1. INSPECT POWER VENT WINDOW MOTOR OPERATION

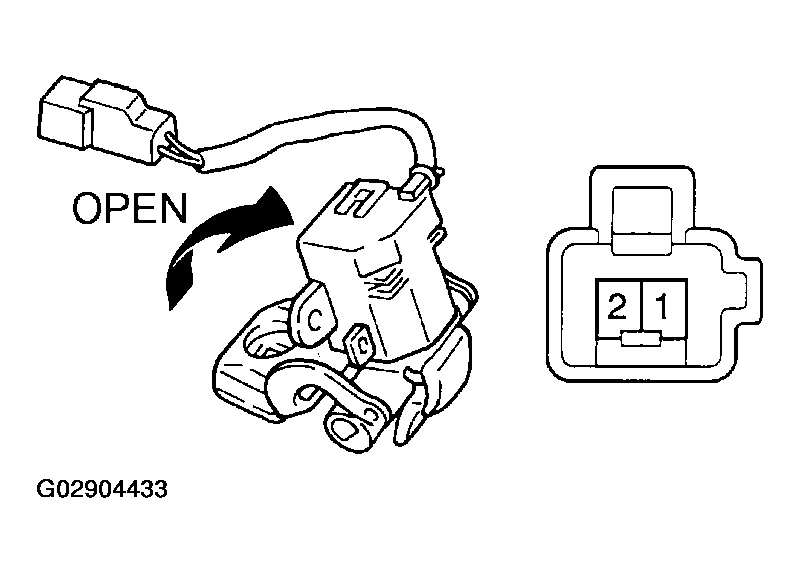

1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the window link moves to OPEN position.

  Fig 4: Checking Window Link Position (Right Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

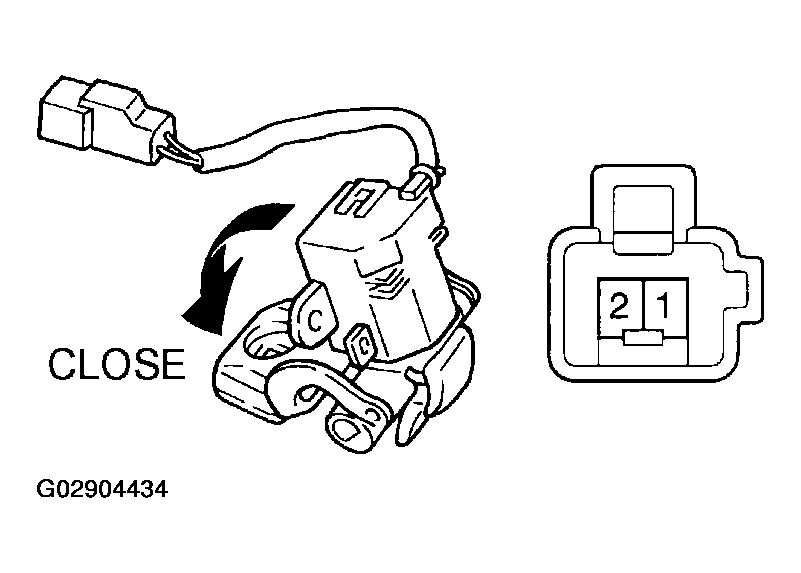

2. Remove the polarity and check that the window link moves to CLOSE position.

  Fig 5: Checking Window Link Position (Right Side) By Removing Polarity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
