Remove Speed Sensor

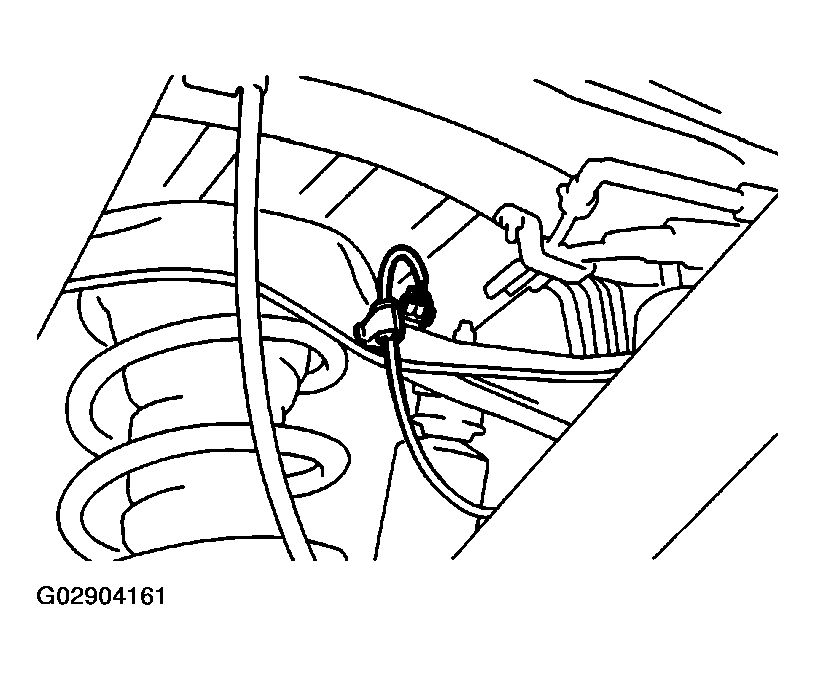

- Disconnect the speed sensor connector.
- Remove the clamp bolt from the upper control bracket.
- Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

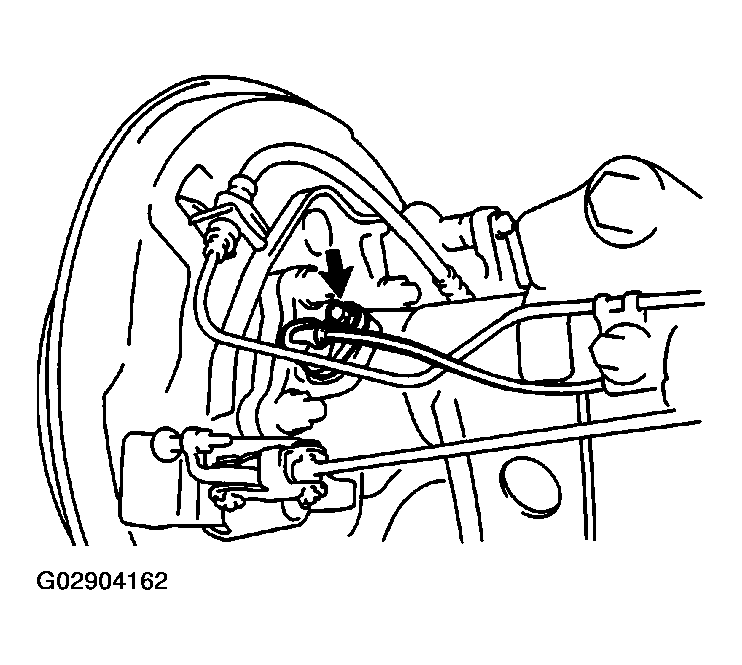

- Remove the 6 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.
- Remove the mounting bolt and speed sensor.
- Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
- Remove the O-ring from the speed sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
