Engine Exhaust Assembly: Components

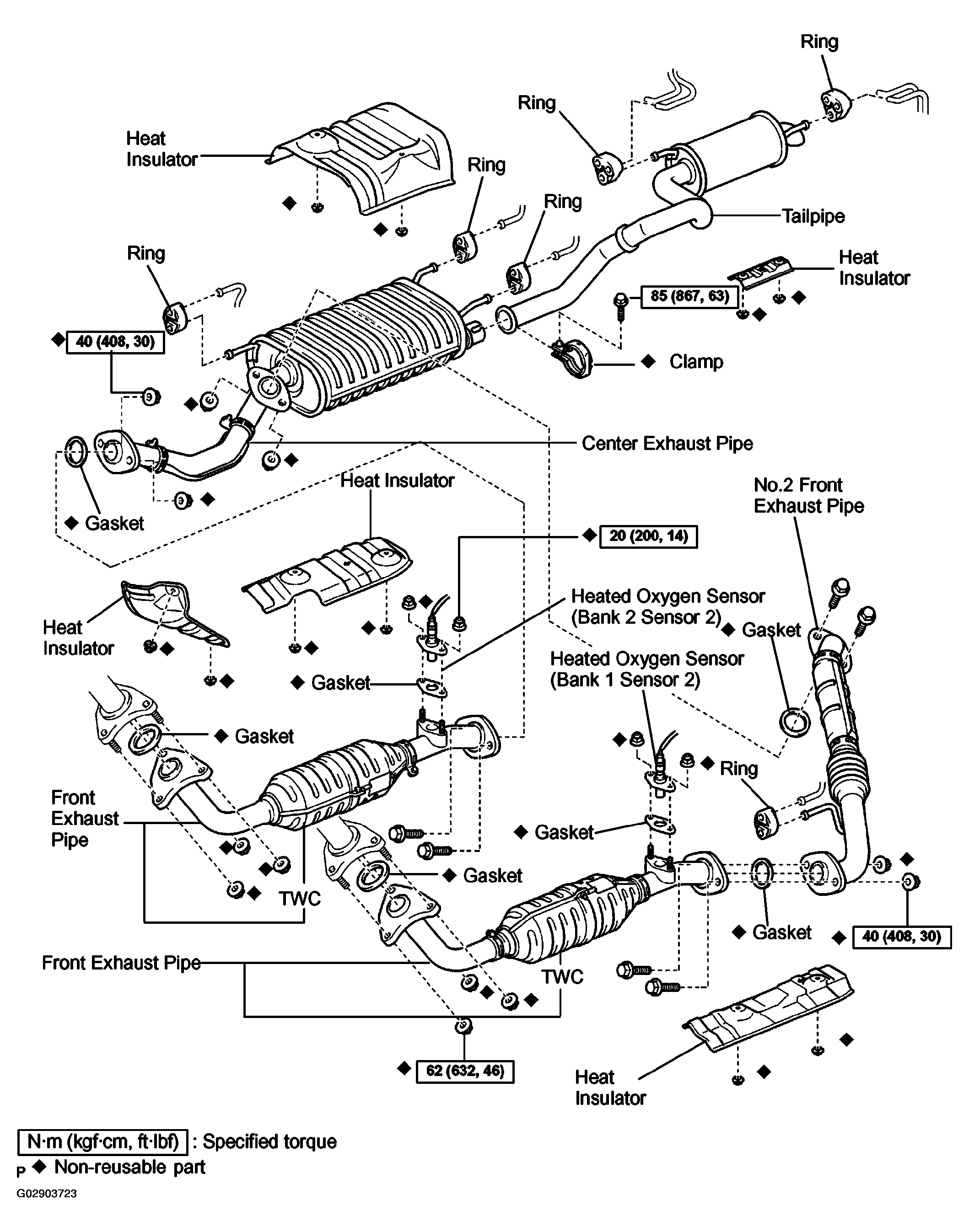

Fig 1: Exploded View Of Exhaust System Components
G02903723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
