Circuit Description

Refer to DTC P0100, P0102 and P0103 on DTC P0100: MASS OR VOLUME AIR FLOW CIRCUIT; DTC P0102: MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT; DTC P0103: MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT .

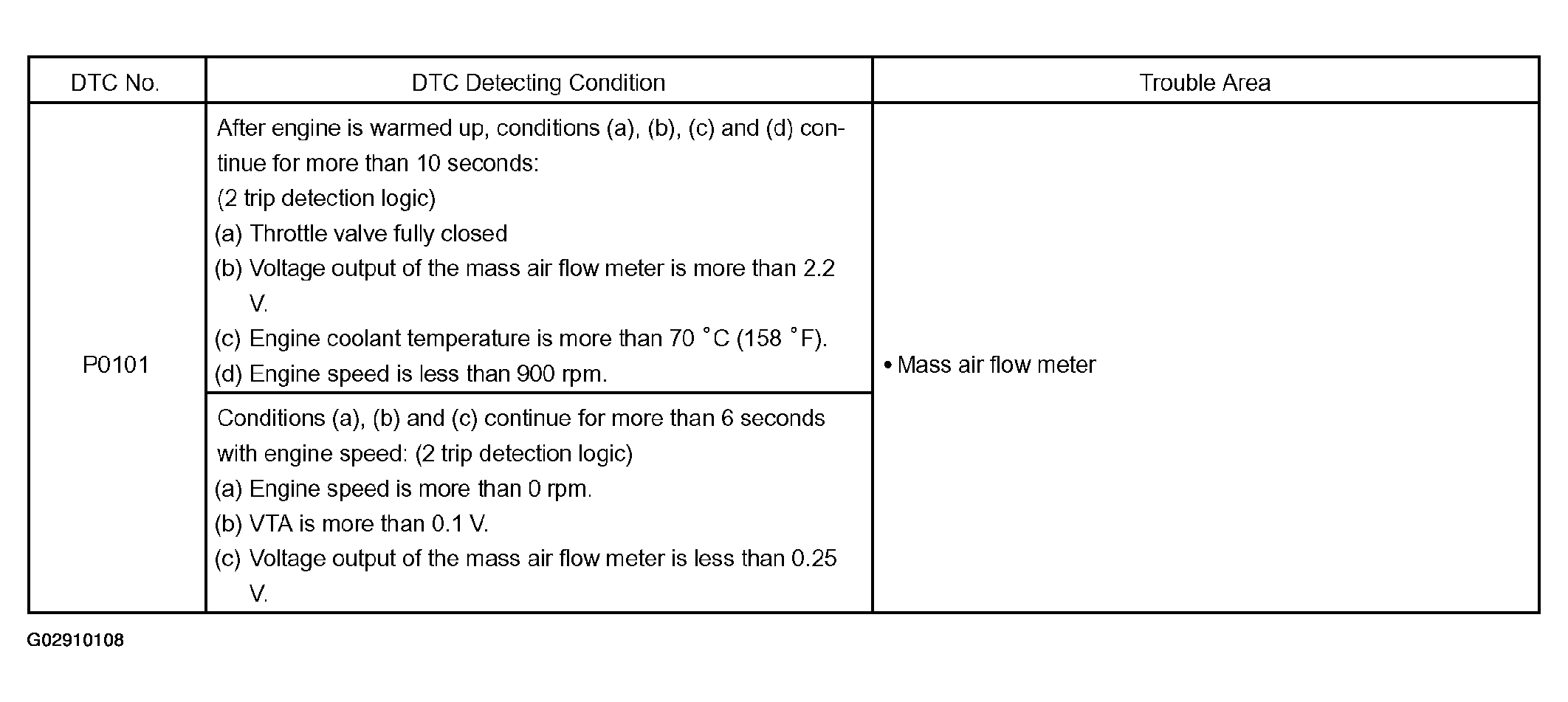

Fig 1: Mass Air Flow Meter Diagnosis Table
G02910108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
