Circuit Description

Refer to DTC P0115 on DTC P0115: ENGINE COOLANT TEMPERATURE CIRCUIT; DTC P0117: ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT; DTC P0118: ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT .

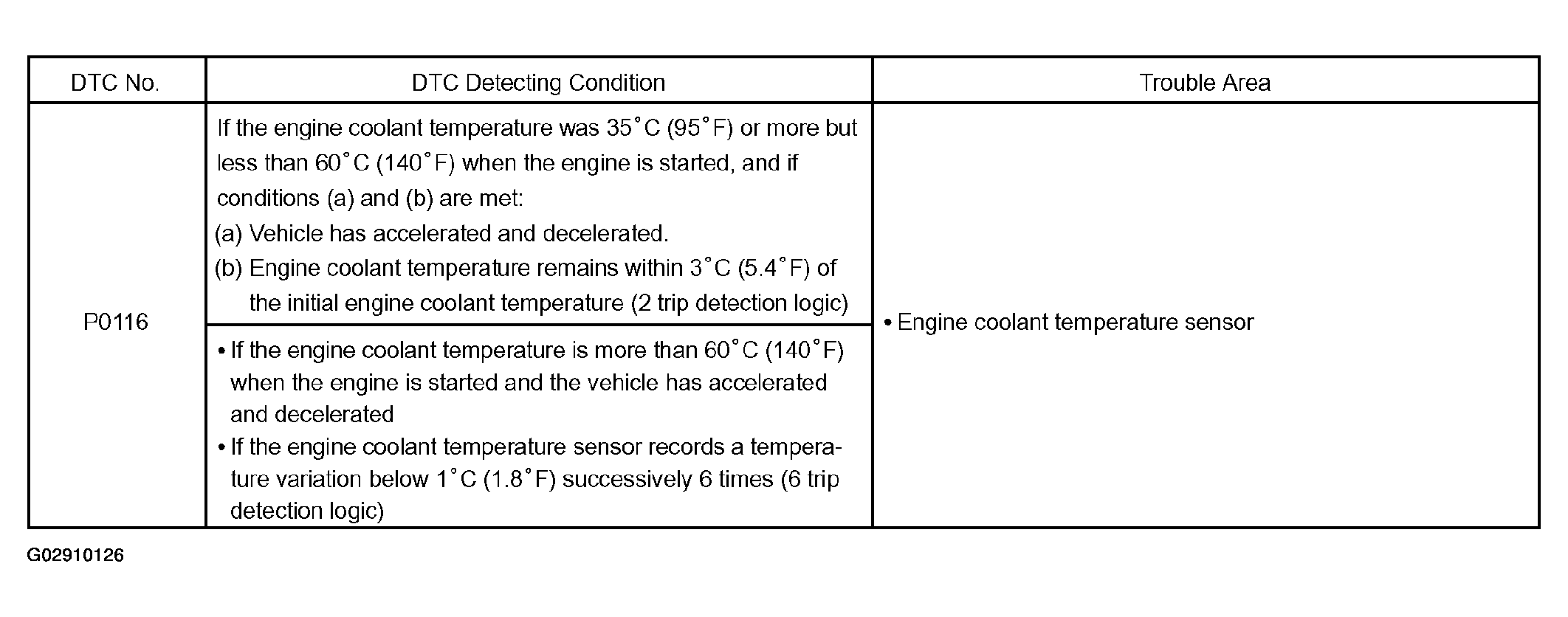

Fig 1: Engine Coolant Temperature Diagnosis Table
G02910126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
