DTC P0420: Catalyst System Efficiency Below Threshold (Bank 1); DTC P0430: Catalyst System Efficiency Below Threshold (Bank 2)
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions

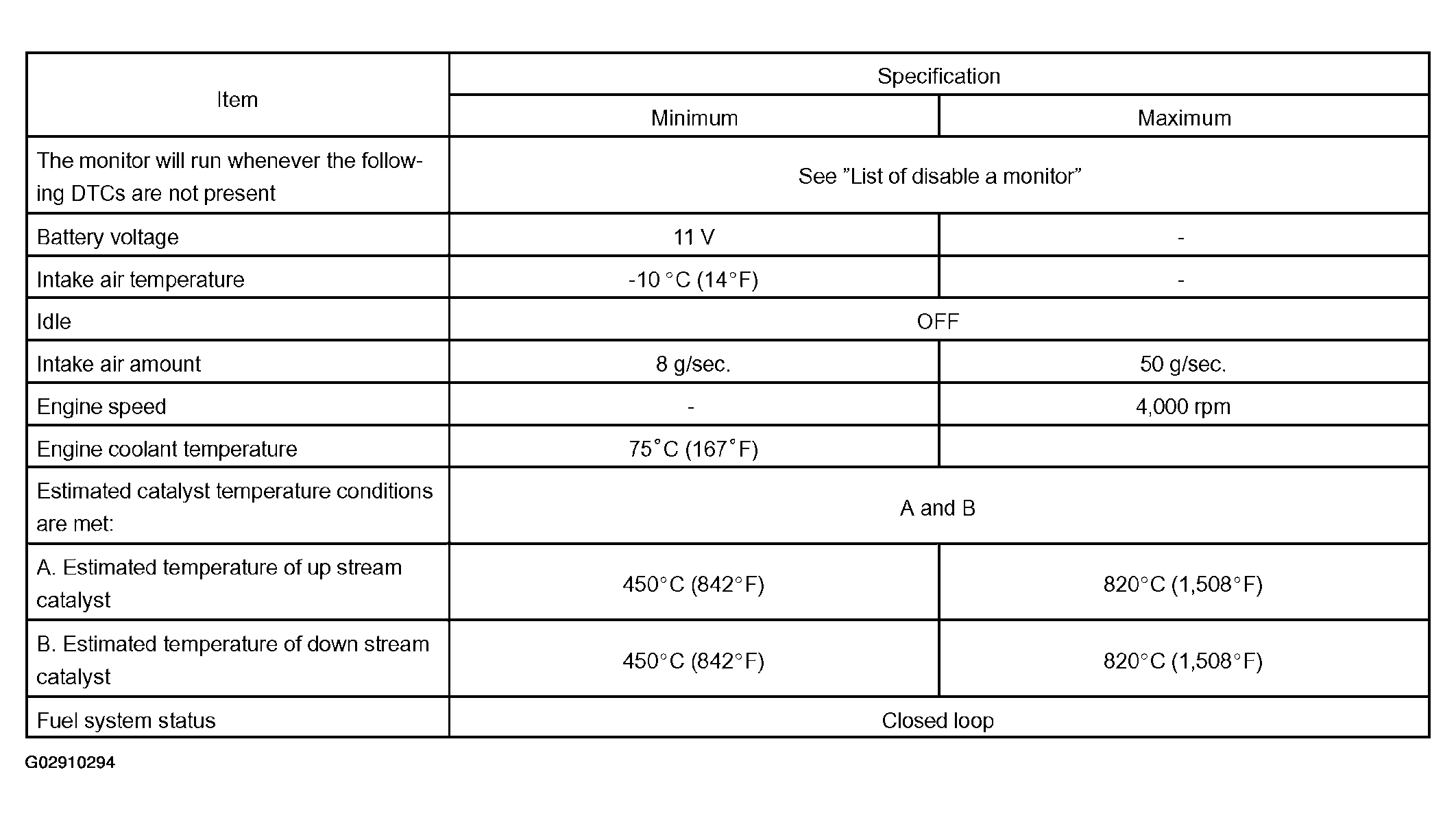

Fig 1: Typical Enabling Condition Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
