Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, as well as other data from the time when a malfunction occurred.

Hand-held tester:

  1. Connect hand-held tester, and read the voltage for accelerator pedal position sensor data.

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    3. Enter the following menus: DIAGNOSTICS / ENHANCED OBD II / DATA LIST / ETCS / ACCEL POS #1 and ACCEL POS #2.

    CHECK:

    Read the voltage for the accelerator pedal position sensor data.

    OK:

    Accelerator Pedal Position Sensor Voltage data Table

    Accelerator pedal ACCEL POS #1 ACCEL POS #2
    Released 0.5 to 1.1 V 1.2 to 2.0 V
    Depressed 2.6 to 4.5 V 3.4 to 5.3 V

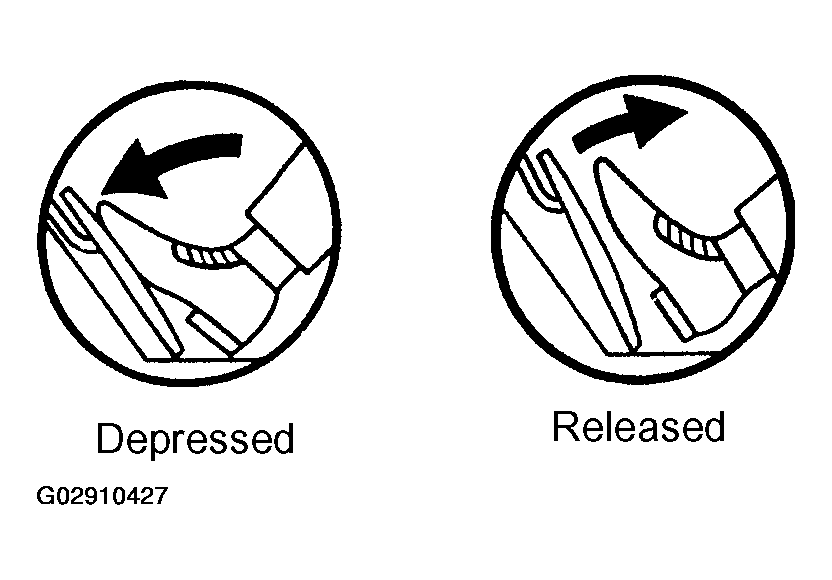

    Fig 1: Locating Accelerator Pedal Depressed and Released Position
    G02910427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Replace ECM (See  INSPECTION  ).
    2. NG: Go to Next Step
  2. Check for open and short in harness and connector between accelerator pedal position sensor and ECM.

    PREPARATION:

    1. Disconnect the A14 accelerator pedal position sensor connector.
    2. Disconnect the E9 ECM connector.

    CHECK:

    Measure the resistance between the wire harness side connectors.

    OK:

    1. Standard (Check for open):
      Measuring resistance in Tester Connection (check for open)

      Tester Connection Specified Condition
      VPA1 (A14-5) - VPA (E9-22) Below 1 Ω
      EP1 (A14-3) - EPA (E9-28) Below 1 Ω
      VCP1 (A14-6) - VCPA (E9-26) Below 1 Ω
      VPA2 (A14-2) - VPA2 (E9-23) Below 1 Ω
      EP2 (A14-1) - EPA2 (E9-29) Below 1 Ω
      VCP2 (A14-4) - VCP2 (E9-27) Below 1 Ω

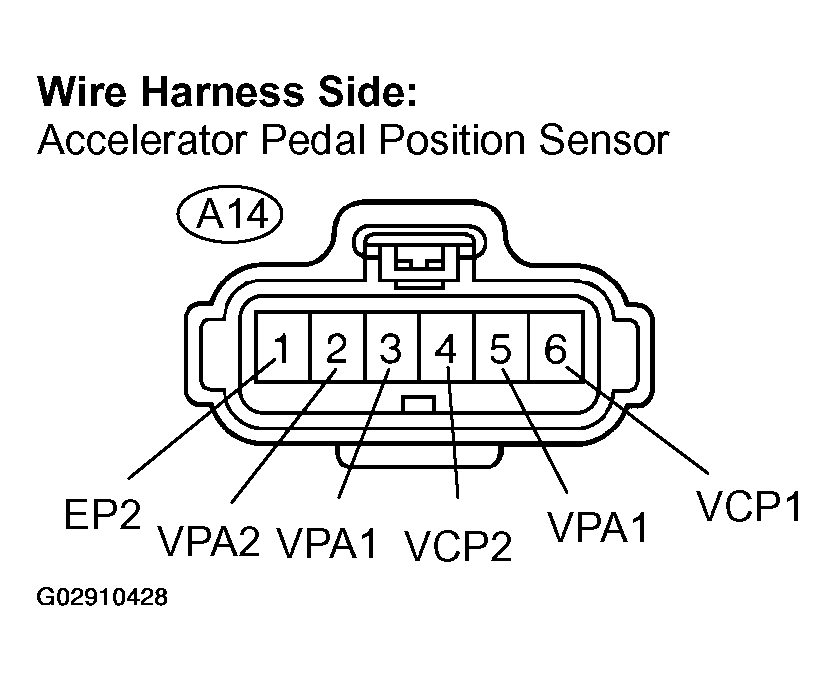

      Fig 2: Identifying A14 accelerator Pedal Position Sensor Connector terminal
      G02910428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Standard (Check for short):
      [Measuring resistance in Tester Connection (check for Short)]

      Tester Connection Specified Condition
      VPA1 (A14-5) or VPA (E9-22) - Body ground 10 kΩ or higher
      EP1 (A14-3) or EPA (E9-28) - Body ground 10 kΩ or higher
      VCP1 (A14-6) or VCPA (E9-26) - Body ground 10 kΩ or higher
      VPA2 (A14-2) or VPA2 (E9-23) - Body ground 10 kΩ or higher
      EP2 (A14-1) or EPA2 (E9-29) - Body ground 10 kΩ or higher
      VCP2 (A14-4) or VCP2 (E9-27) - Body ground 10 kΩ or higher
      Fig 3: Disconnecting E9 ECM Connector
      G02910429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Repair or replace harness or connector.
    2. OK: Replace accelerator pedal assembly. See  ACCELERATOR PEDAL POSITION SENSOR  .

OBD II scan tool (excluding hand-held tester):

  1. Check voltage between terminals VPA and EPA, VPA2 and EPA2 of ECM connector.

    PREPARATION:

    Turn the ignition switch ON.

    CHECK:

    Measure the voltage between the specified terminals of the E9 ECM connector.

    OK:

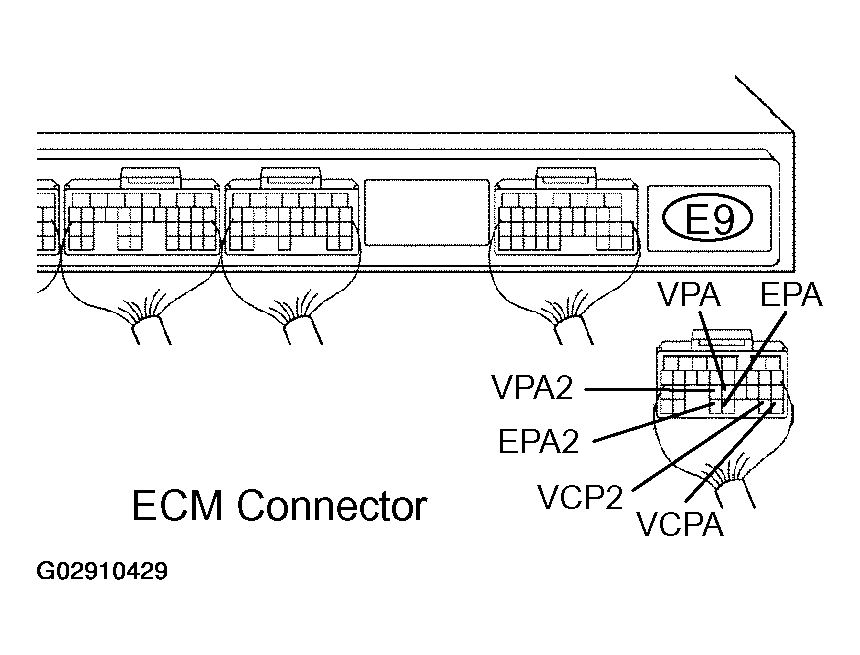

    Fig 4: Identifying E9 ECM Connector terminal
    G02910430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

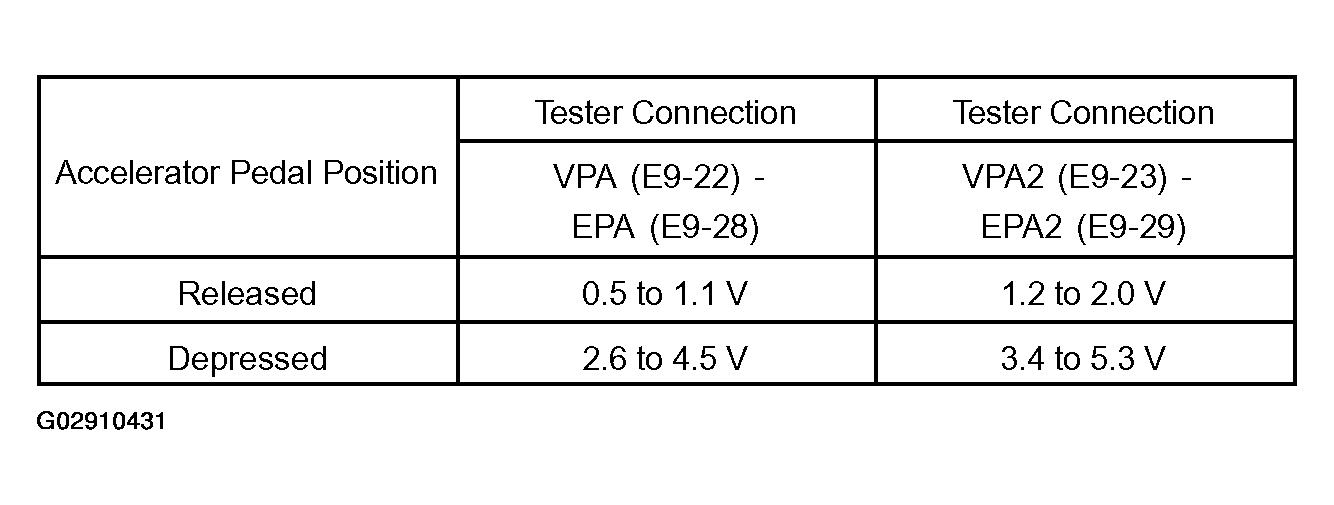

    Fig 5: Accelerator Pedal Position sensor Voltage Table
    G02910431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: Replace ECM (See  INSPECTION  ).
    2. NG: Go to Next Step
  2. Check for open and short in harness and connector between accelerator pedal position sensor and ECM.

    PREPARATION:

    1. Turn the ignition switch ON.
    2. Disconnect the A14 accelerator pedal position sensor connector.

    CHECK:

    Measure the voltage between the specified terminals of the E9 ECM connector.

    OK:

    Tester Connection Specified Condition Table

    Tester Connection Specified Condition
    VCPA (E9-26) - EPA (E9-28) 4.5 to 5.5 V
    VCP2 (E9-27) - EPA2 (E9-29) 4.5 to 5.5 V

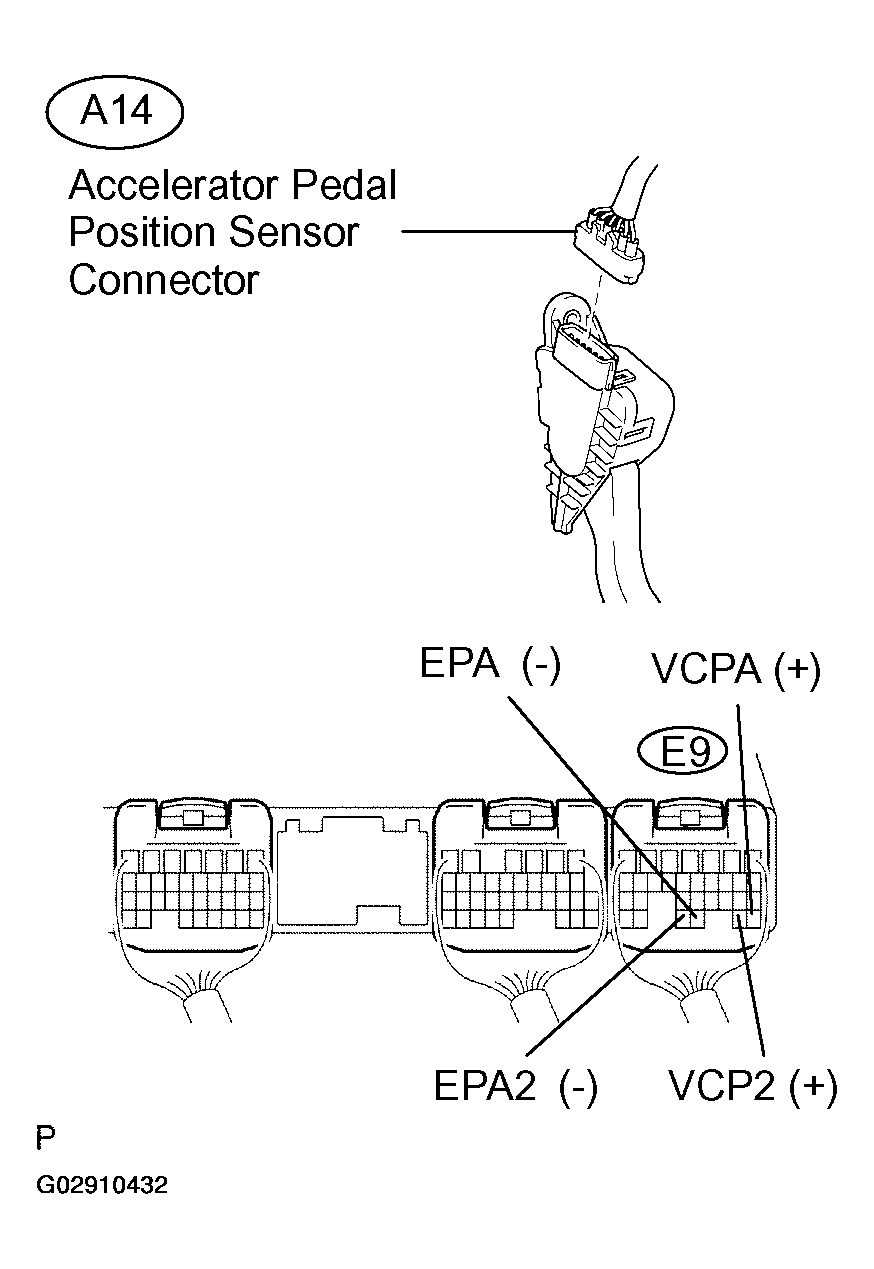

    Fig 6: Disconnecting A14 Accelerator Pedal Position Sensor Connector
    G02910432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Replace ECM (See  INSPECTION  ).
    2. OK: Replace accelerator pedal assembly. See  ACCELERATOR PEDAL POSITION SENSOR  .
