Diagnostic Trouble Code Table
WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
DTC INDEX
| DTC | Description |
|---|---|
| DTC B1211 | Driver door ECU communication stop |
| DTC B1213 | Tilt and Telescopic ECU communication stop |
| DTC B1214, B1215 | Door system communication bus malfunction (+B short/GND short) |
| DTC B1269 | Theft deterrent ECU communication stop |

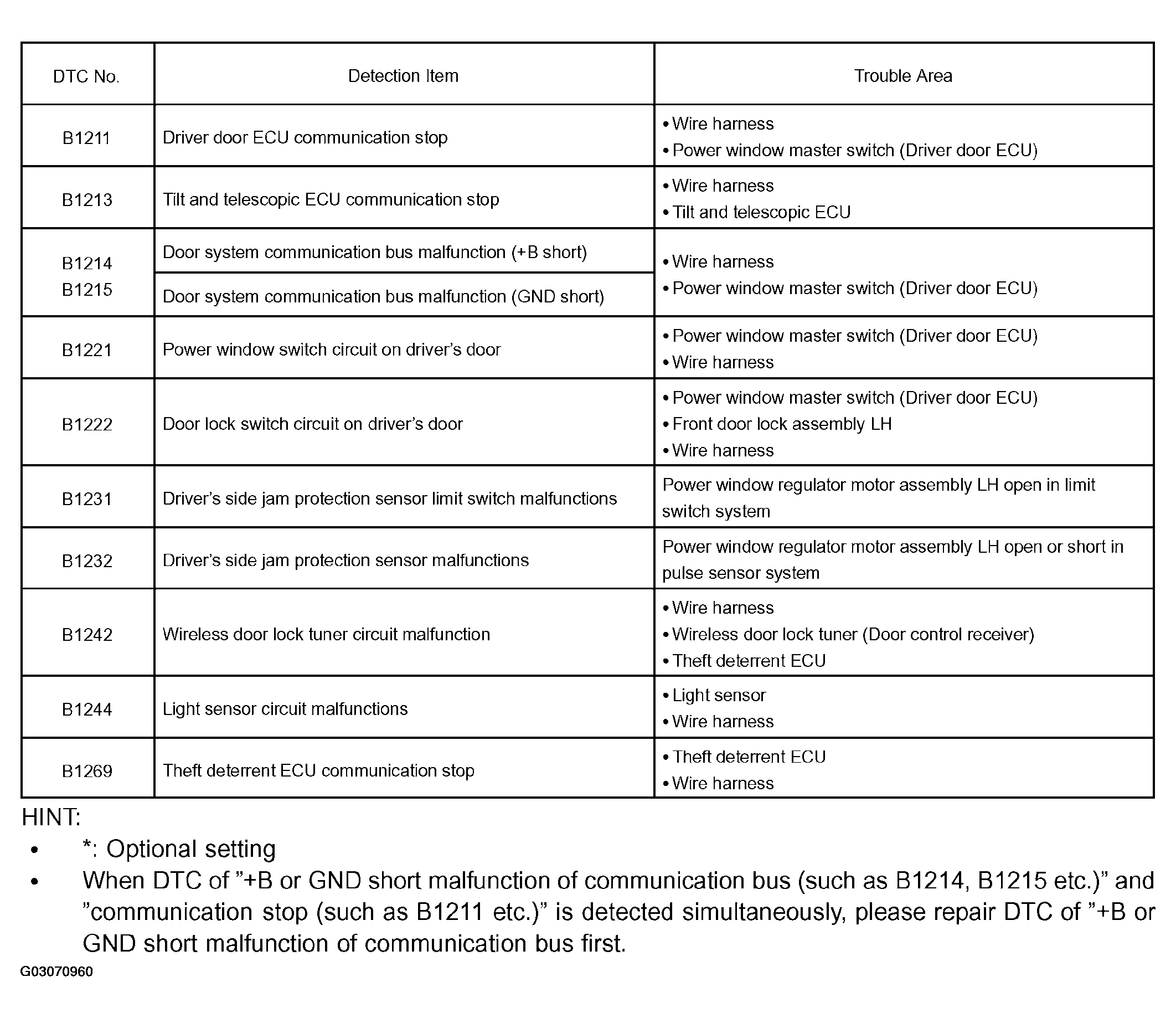

If a malfunction code is displayed during DTC check, check the circuit corresponding to the code in Fig 1 (Proceed to the reference given for the circuit).
