Power Mirror Control System: Inspection

Inspect Left Side Mirror Switch Continuity

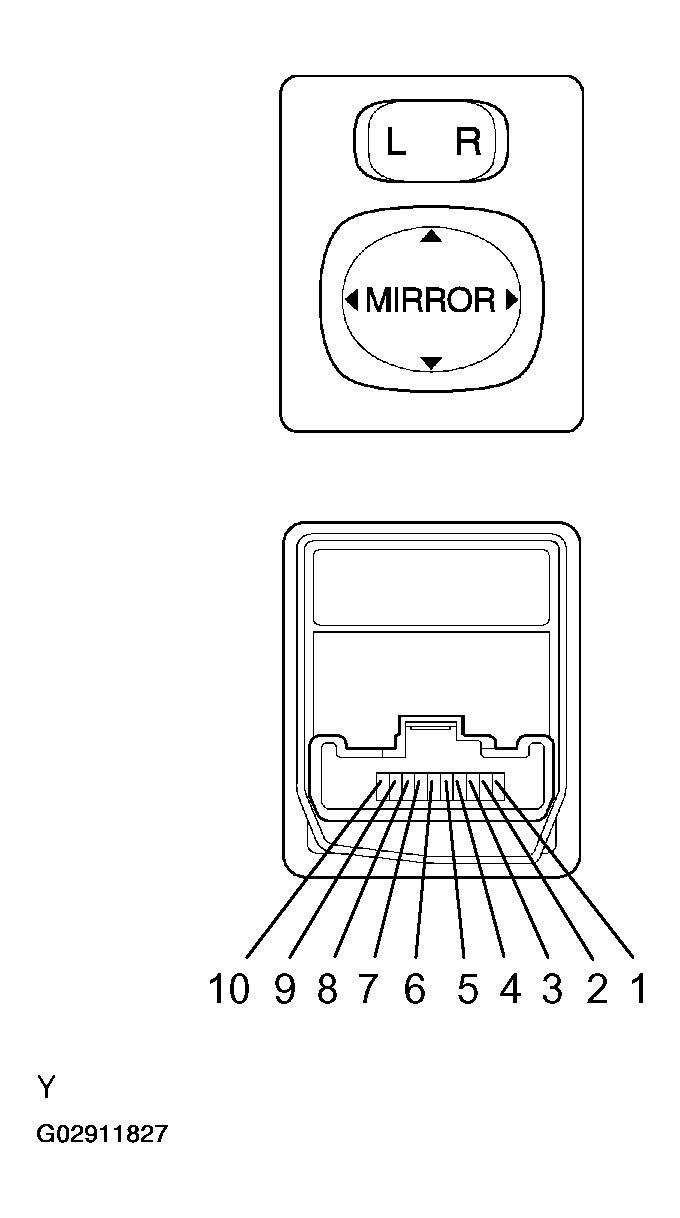

Fig 1: Identifying Side Mirror Switch Terminals

G02911827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LEFT SIDE MIRROR CONTINUITY SPECIFICATIONS

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	4 - 8 6 - 7	Continuity
DOWN	4 - 7 6 - 8	Continuity
LEFT	5 - 8 6 - 7	Continuity
RIGHT	5 - 7 6 - 8	Continuity

If continuity is not as specified, replace the switch.

Inspect Right Side Mirror Switch Continuity

RIGHT SIDE MIRROR CONTINUITY SPECIFICATIONS

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	3 - 8 6 - 7	Continuity
DOWN	3 - 7 6 - 8	Continuity
LEFT	2 - 8 6 - 7	Continuity
RIGHT	2 - 7 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

Inspect Mirror Motor Operation

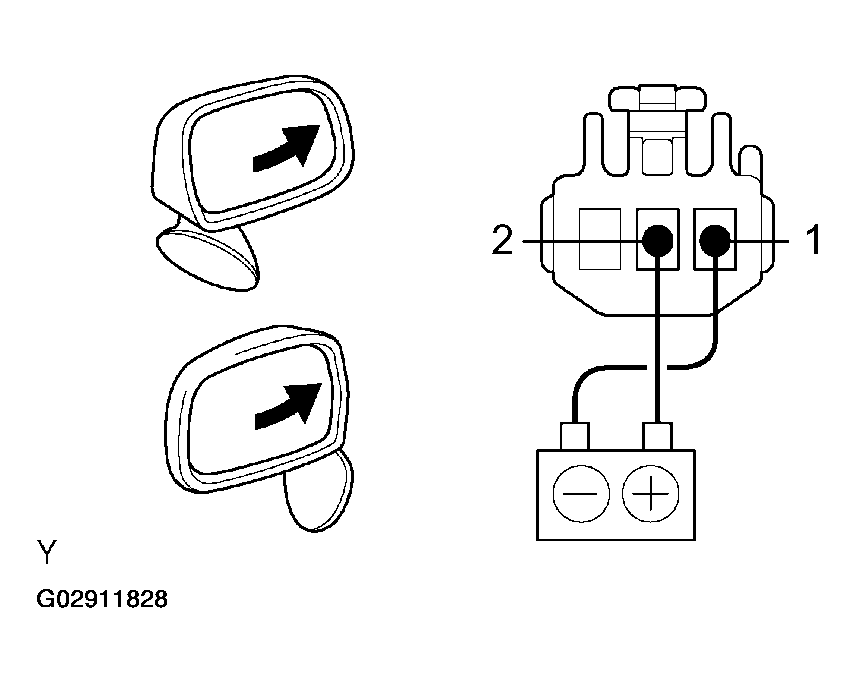

1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the mirror turns to the right.

  Fig 2: Inspecting Mirror Motor Operation Turning To Right
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

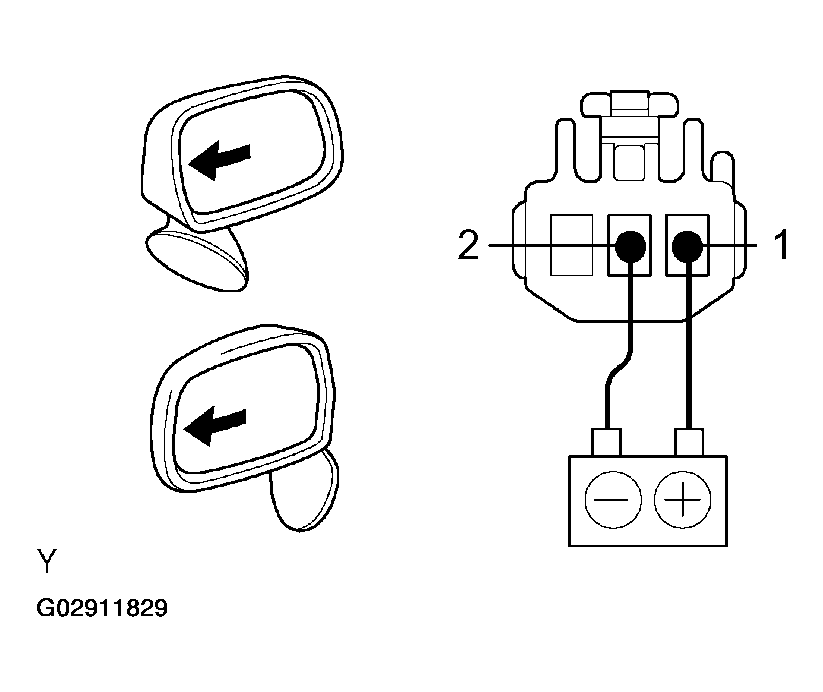

2. Reverse the polarity, and check that the mirror turns to the left.

  Fig 3: Inspecting Mirror Motor Operation Turning To Left
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

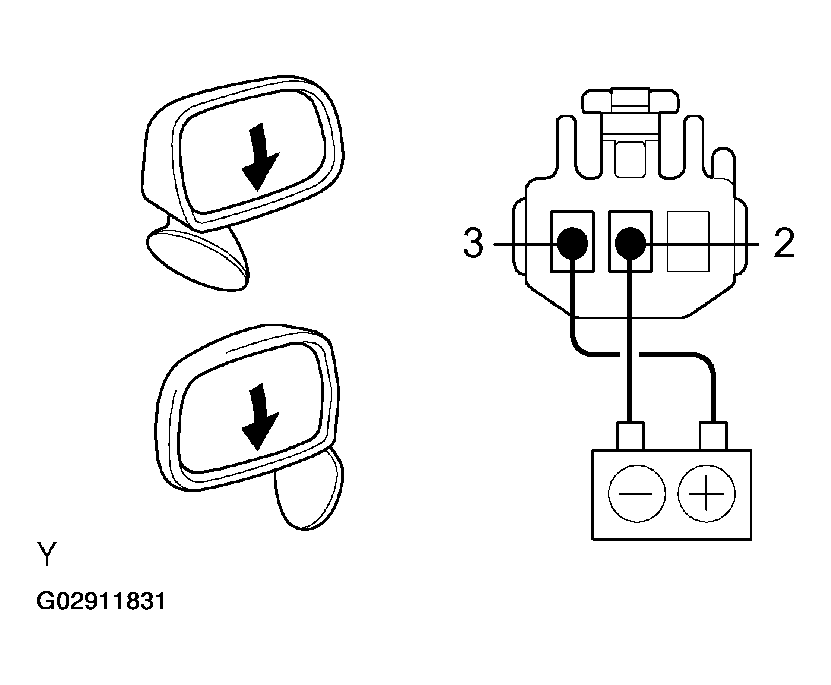

3. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 3, and check that the mirror turns downward.

  Fig 4: Inspecting Mirror Motor Operation Turning Downward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

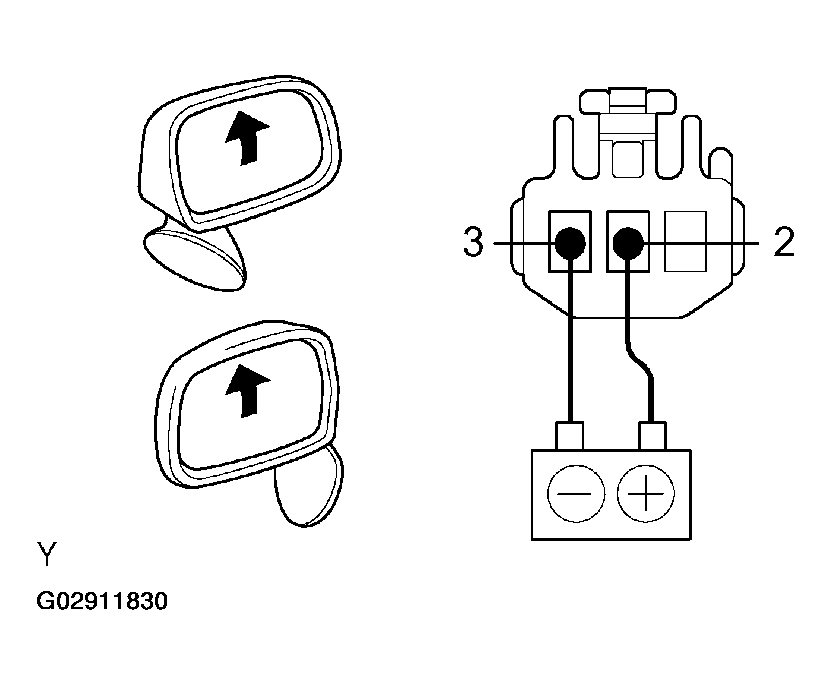

4. Reverse the polarity, and check that the mirror turns upward.
  If the operation is not as specified, replace the mirror assembly.

  Fig 5: Inspecting Mirror Motor Operation Mirror Turning Upward
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
