Abs Actuator: Components

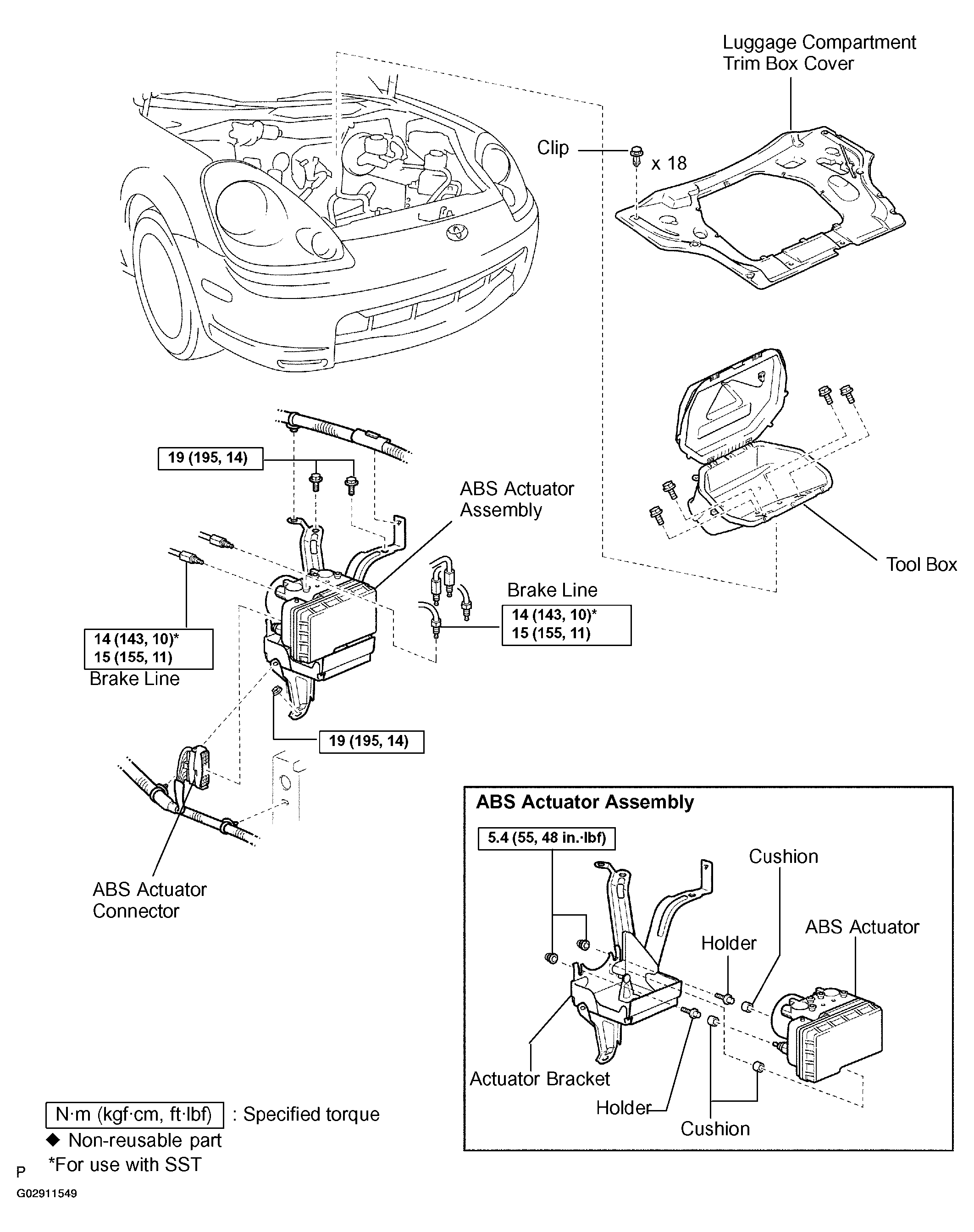

Fig 1: Identifying Components For ABS Actuator Removal
G02911549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
