Combination Meter: Circuit

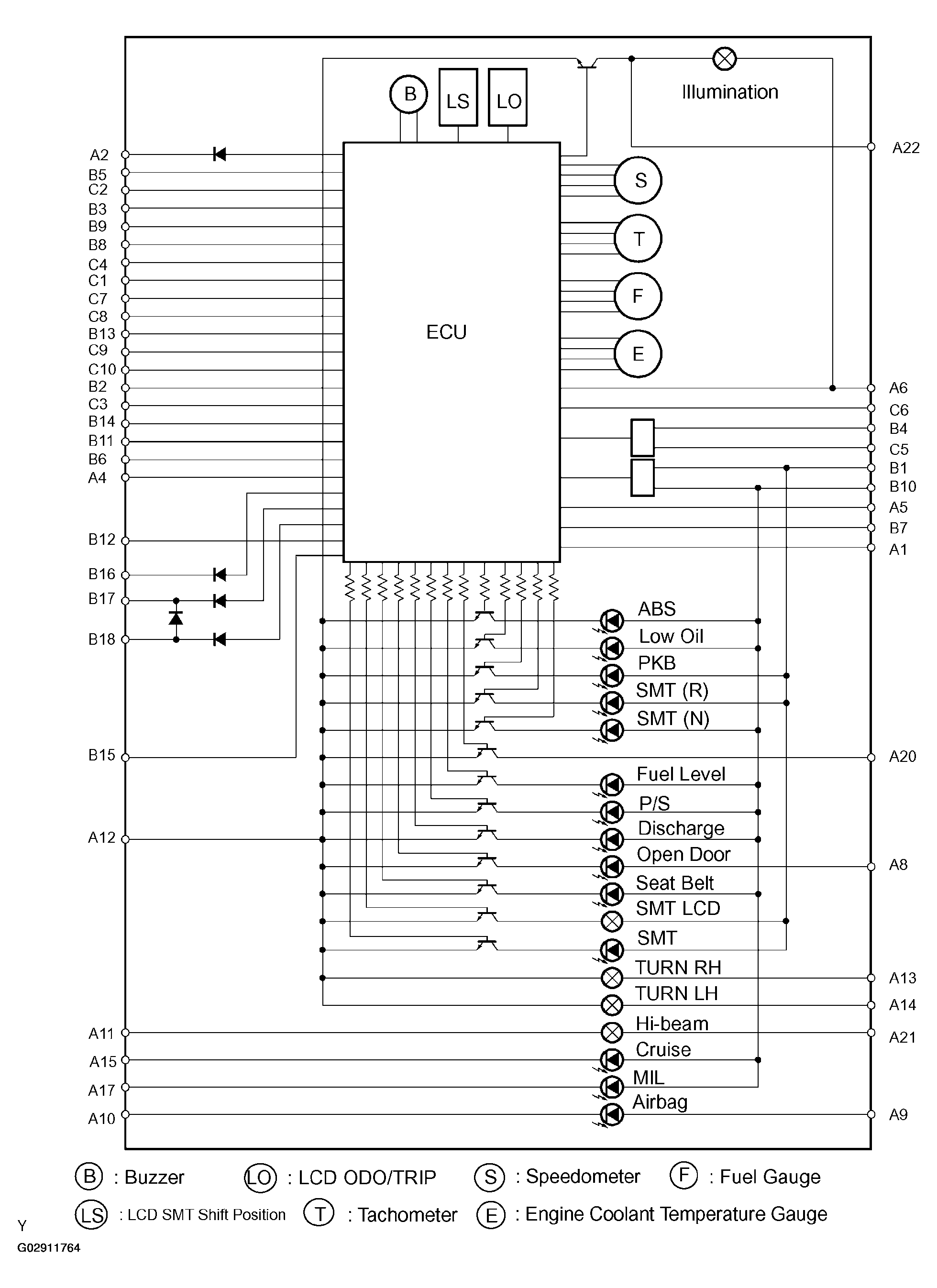

Fig 1: Combination Meter Circuit Diagram
G02911764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

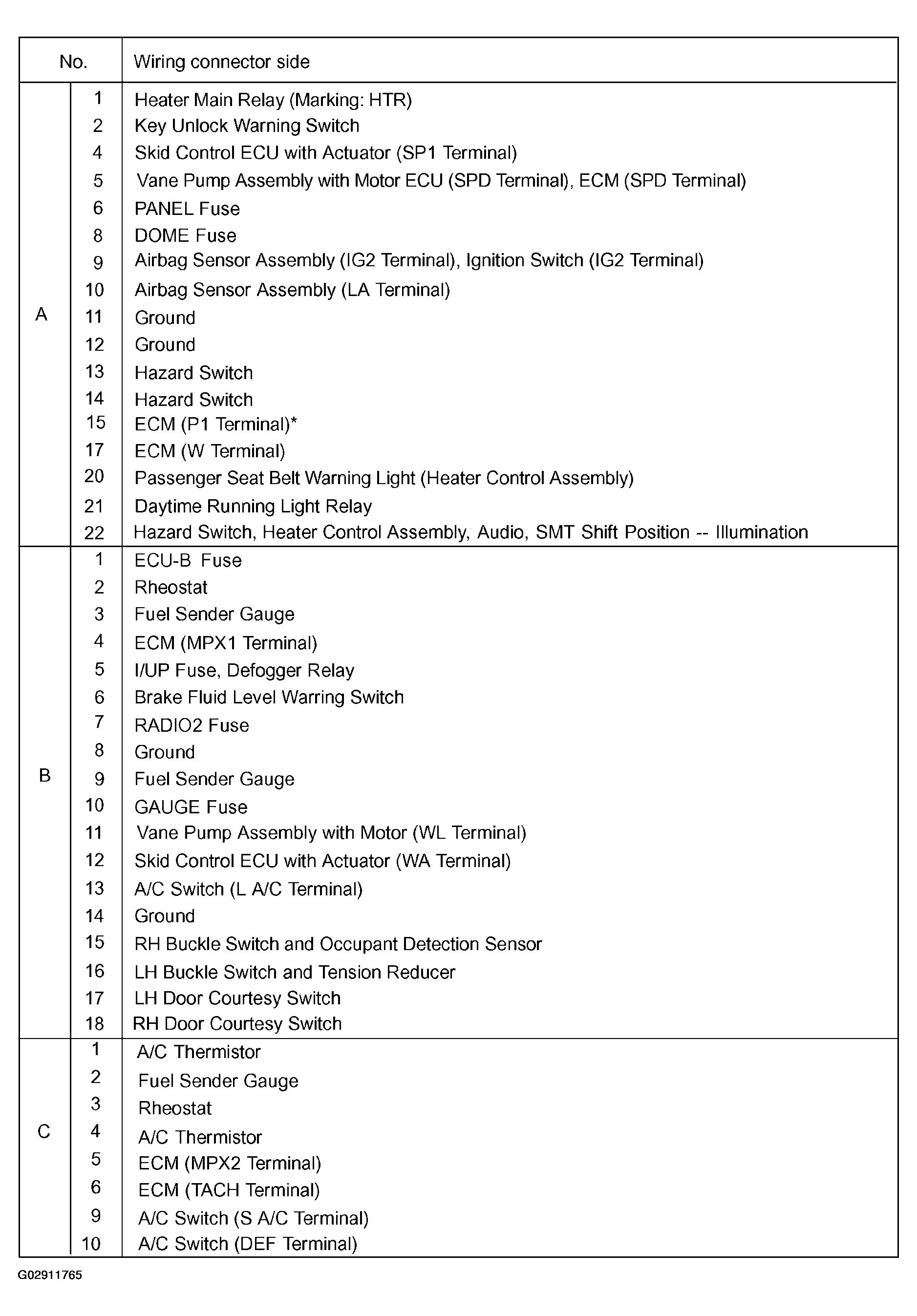

Fig 2: Identifying Combination Meter Circuits
G02911765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
