Camshaft Timing Oil Control Valve: Components

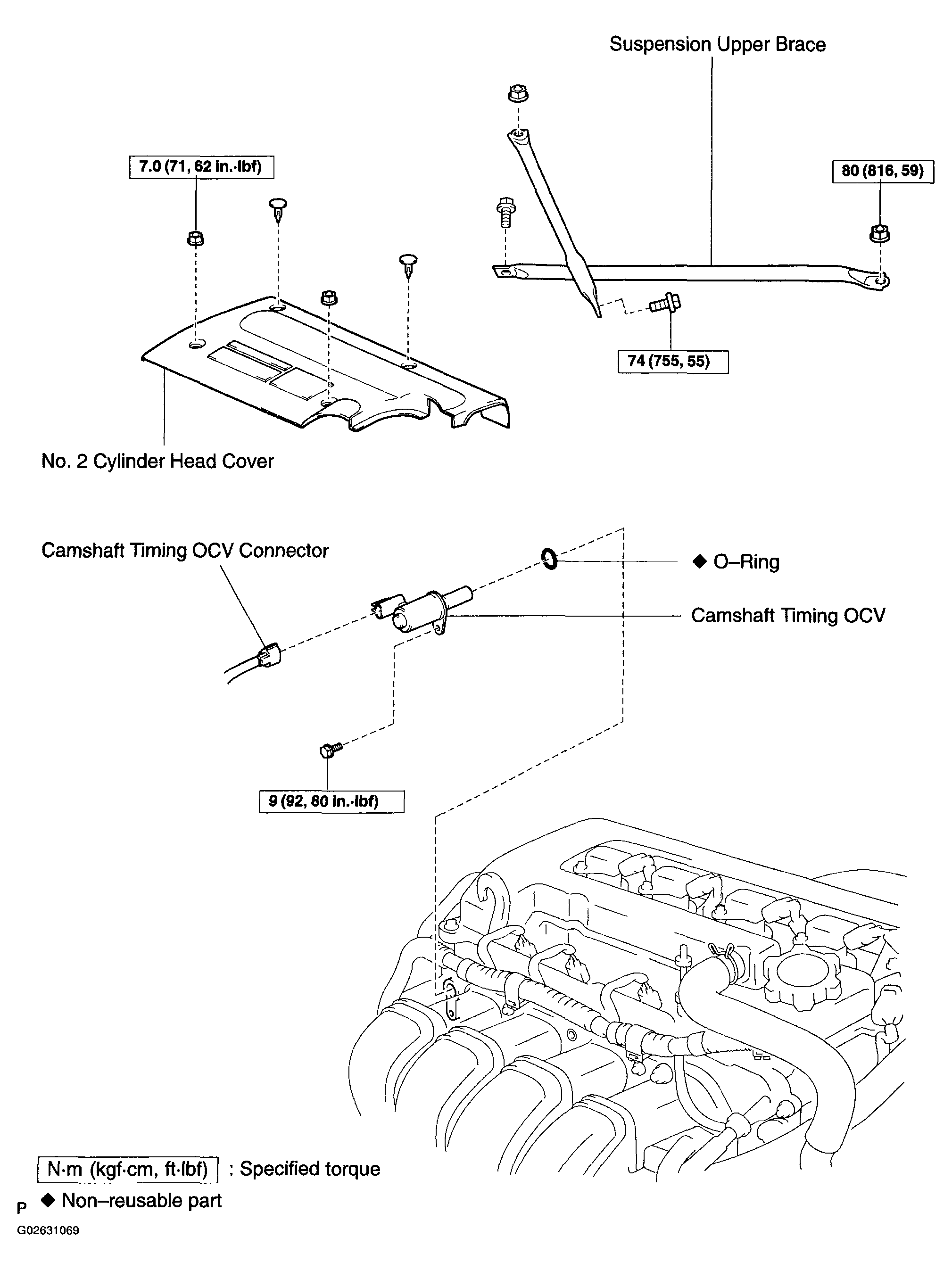

Fig 1: Identifying SFI Components (Camshaft Timing Oil Control Valve)
G02631069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
