Circuit Description

Refer to DTC P0100 in DIAGNOSTIC TROUBLE CODE CHART .

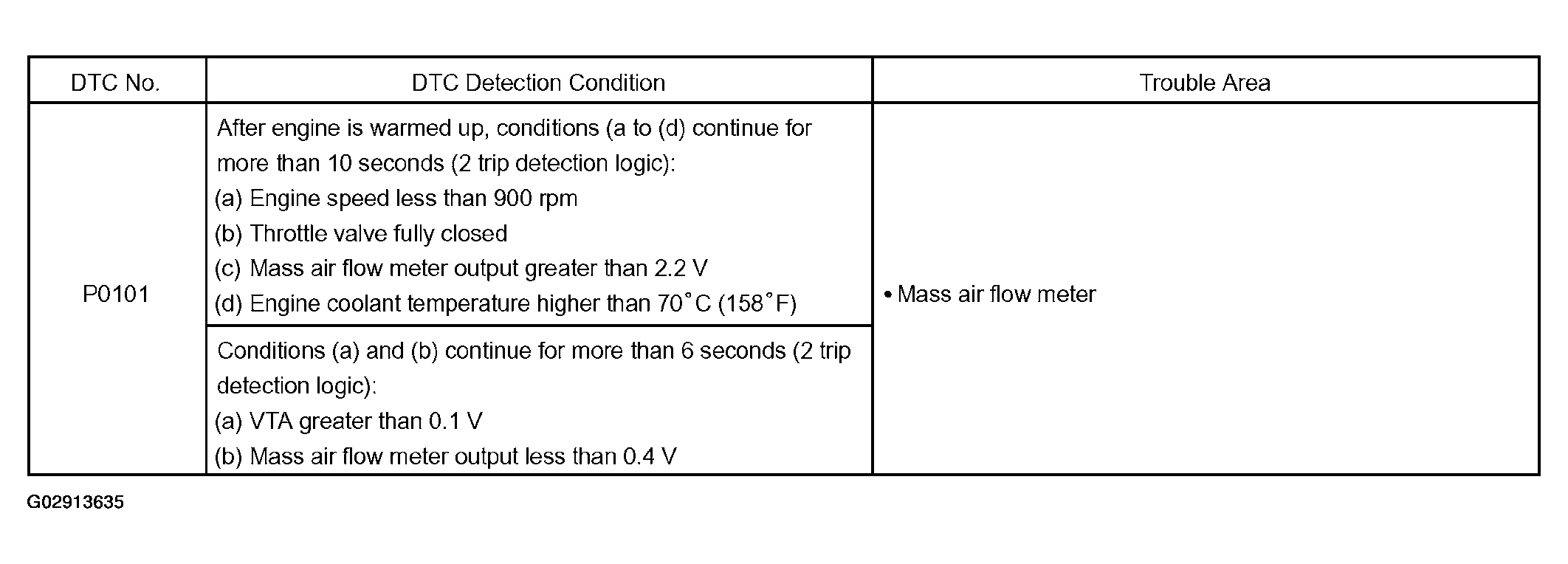

Fig 1: DTC P0101 Troubleshooting Table
G02913635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
