Circuit Description

The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the intake air temperature. The IAT sensor has a thermistor that varies its resistance depending on the temperature of the intake air. When the air temperature is low, the resistance in the thermistor increases. When the temperature is high, the resistance drops. The variations in resistance are reflected as voltage changes to the ECM terminal (see Fig. 1).

The IAT sensor is connected to the ECM. The 5 V power source voltage in the ECM is applied to the IAT sensor from terminal THA via resistor R.

That is, the resistor R and the IAT sensor are connected in series. When the resistance value of the intake air temperature sensor changes in accordance with the intake air temperature, the voltage at terminal THA also changes. Based on this signal, the ECM increases the fuel injection volume to improve the drive ability during cold engine operation.

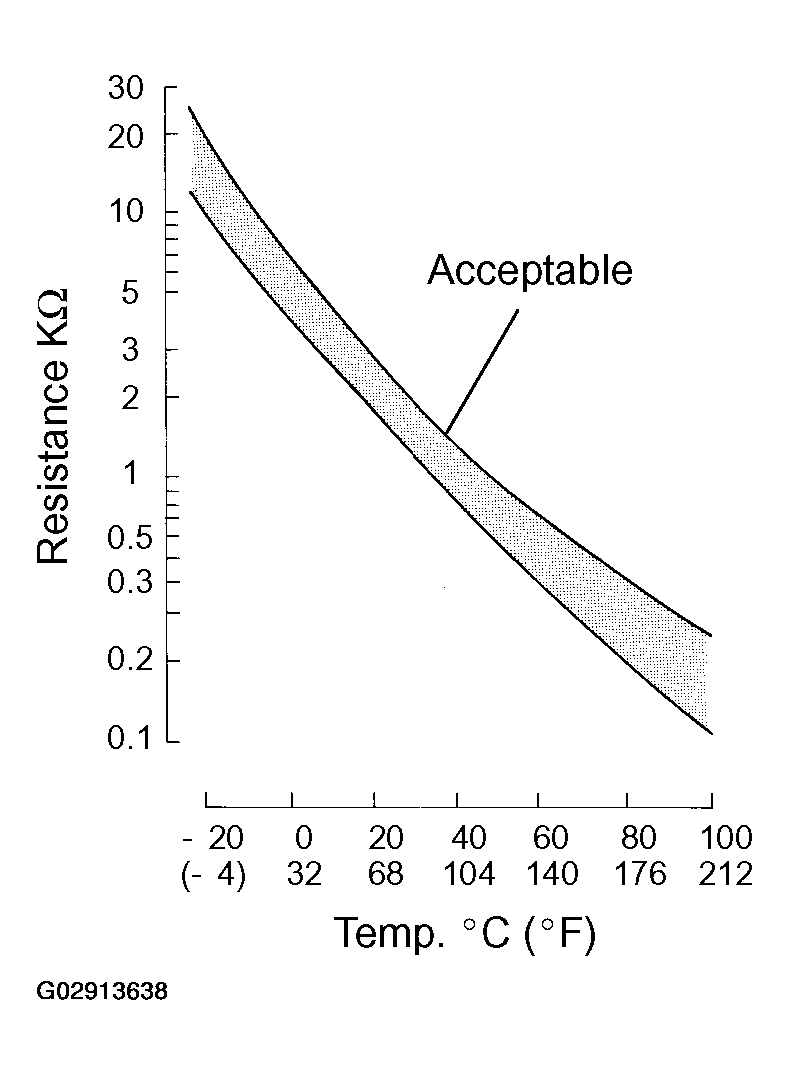

Fig 1: Temperature/Resistance Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

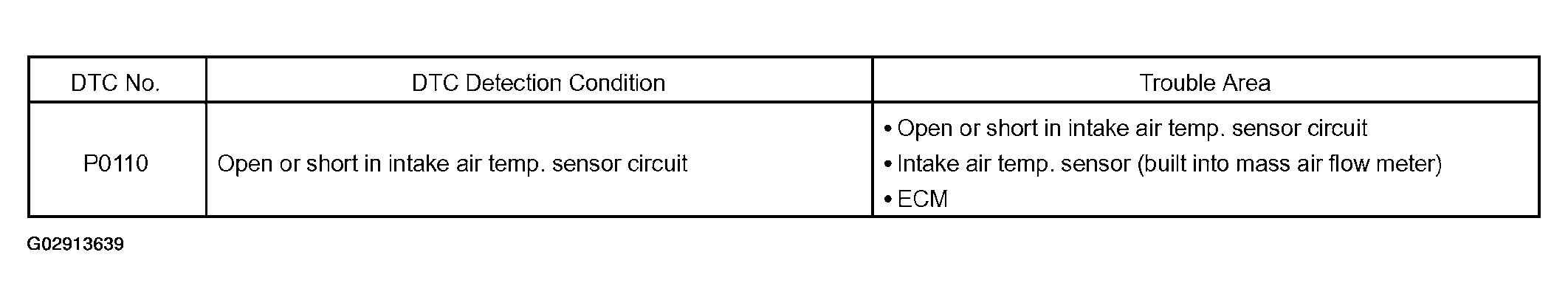

Fig 2: DTC P0110 Troubleshooting Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

After confirming DTC P0110, confirm the intake air temperature with the hand-held tester or OBD II scan tool. Enter the following menus: "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL.
