Circuit Description

Refer to DTC P0115 in DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT .

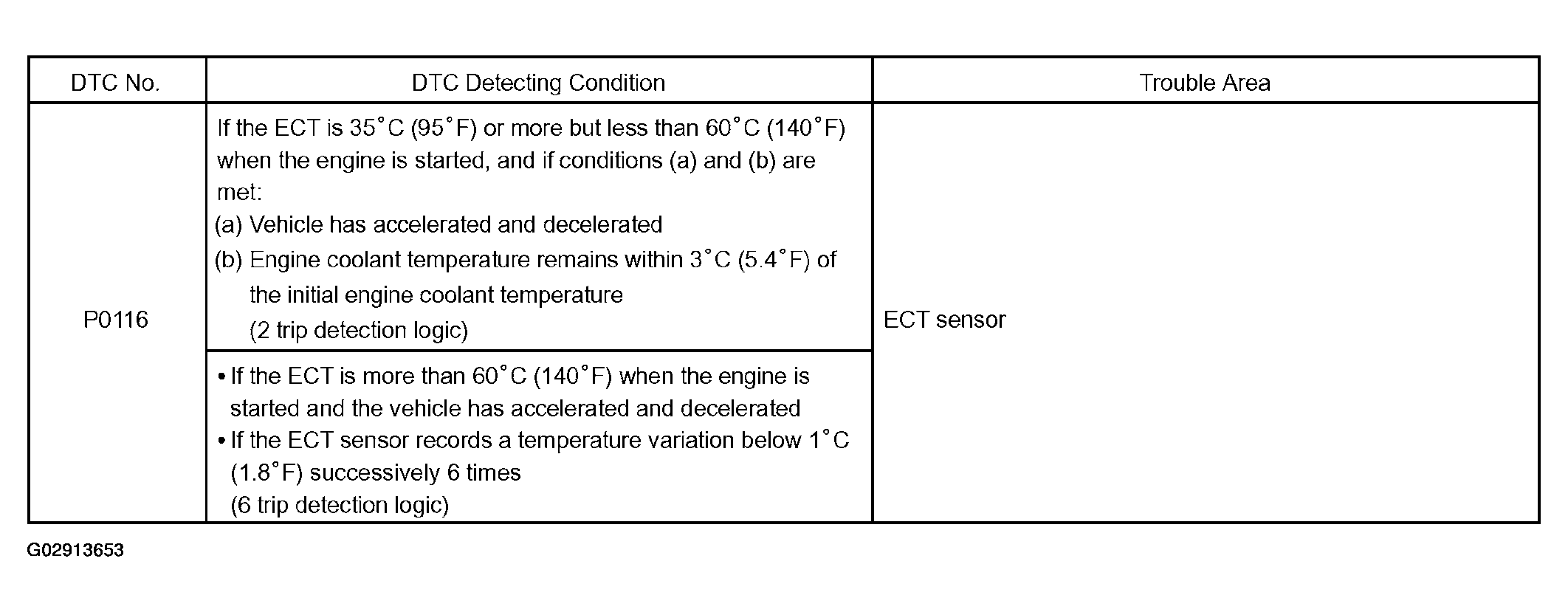

Fig 1: DTC P0116 Troubleshooting Table
G02913653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
