Typical Enabling Conditions

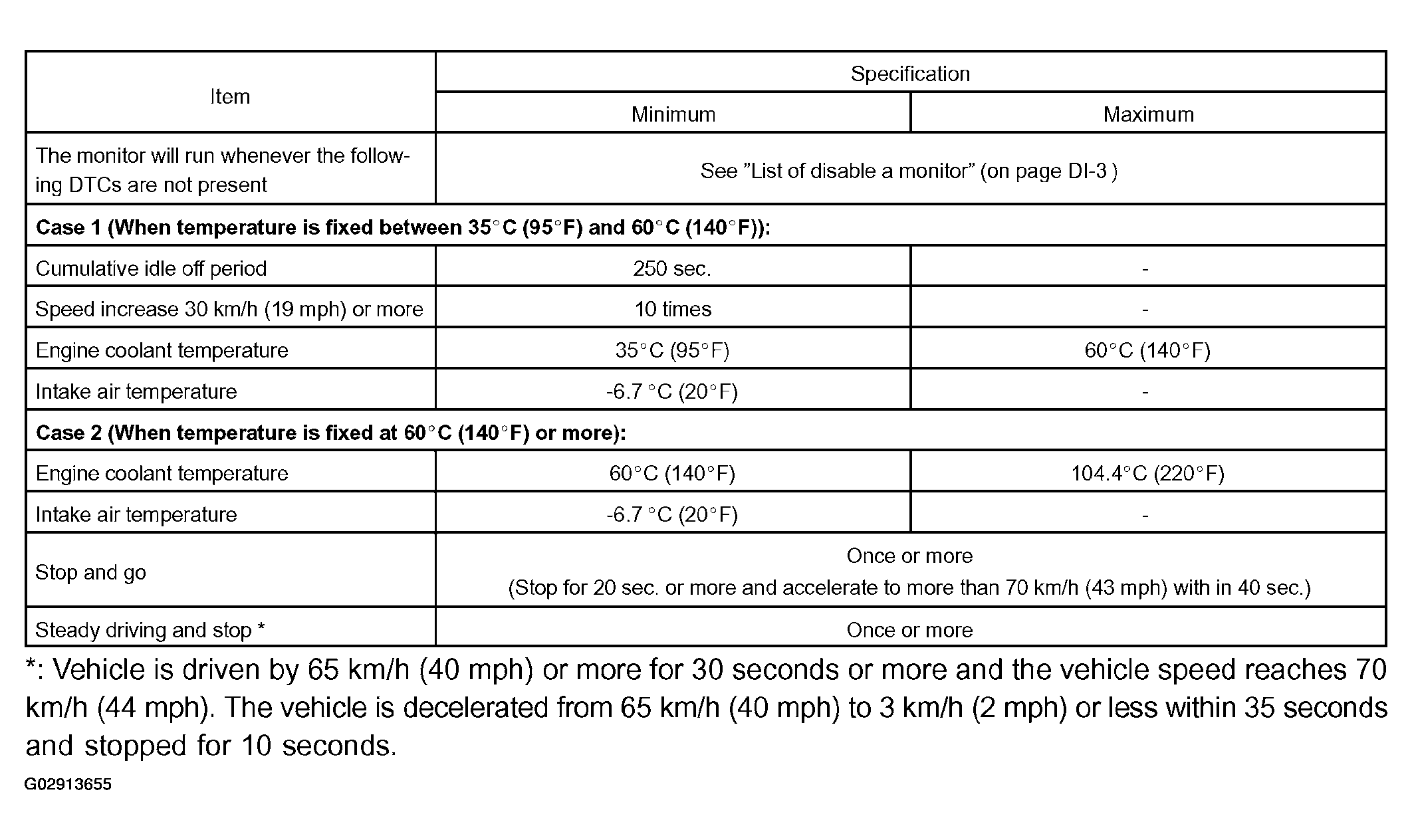

Fig 1: DTC P0116 Typical Enabling Conditions Table
G02913655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*: Vehicle is driven by 65 km/h (40 mph) or more for 30 seconds or more and the vehicle speed reaches 70 km/h (44 mph). The vehicle is decelerated from 65 km/h (40 mph) to 3 km/h (2 mph) or less within 35 seconds and stopped for 10 seconds.
