Disposal Accumulator

Remove the accumulator from the HPU.
Place the accumulator in a vise.
Using a saw, discharge the gas inside by making a hole in the hatching area.

CAUTION:

The gas discharging is colorless, odorless and harmless.
Saw a hole while covering the saw with a shop rug because chips may fly up.>

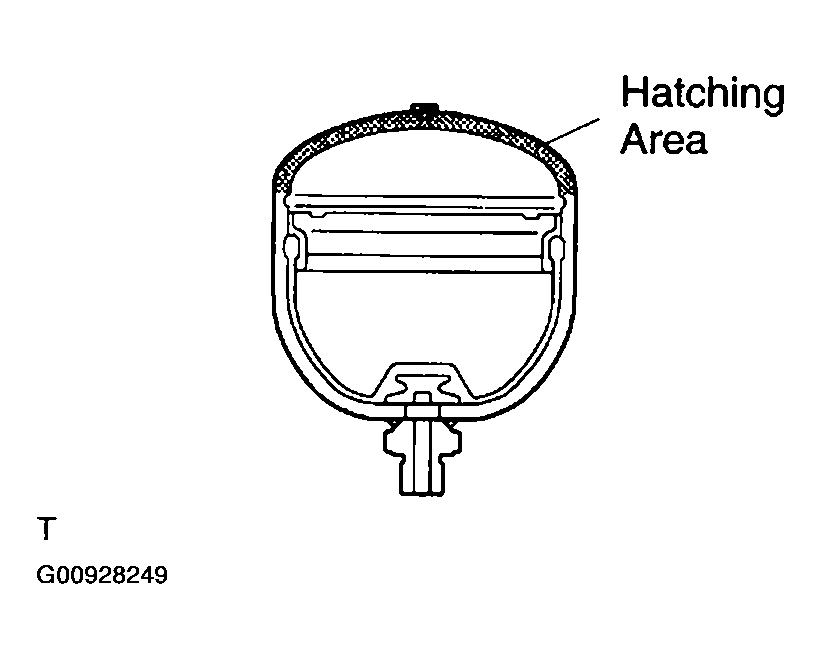

Fig 1: Identifying Hatching Area
