Sequential Manual Transmission Unit: Components

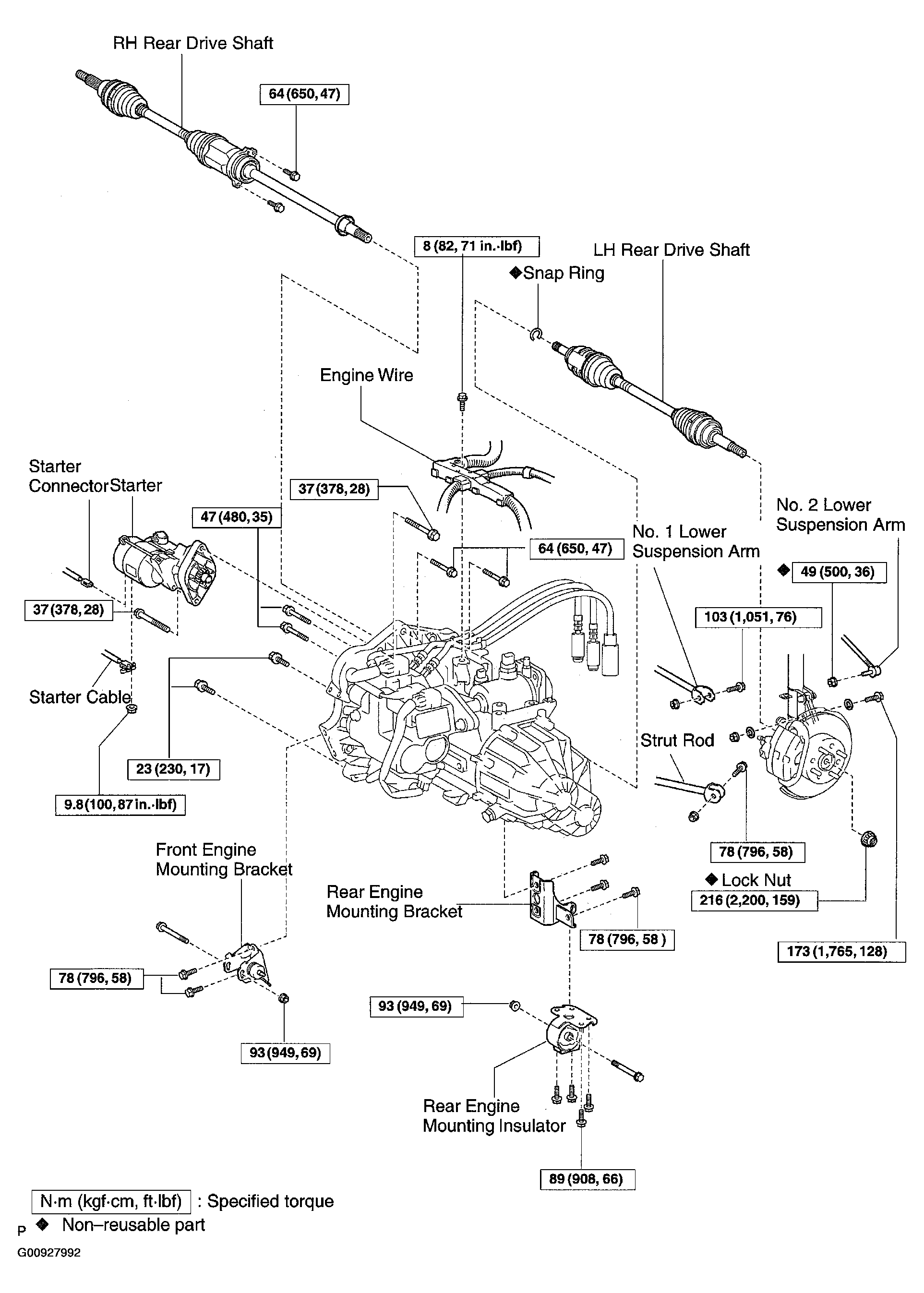

Fig 1: Identifying Sequential Manual Transmission Component (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

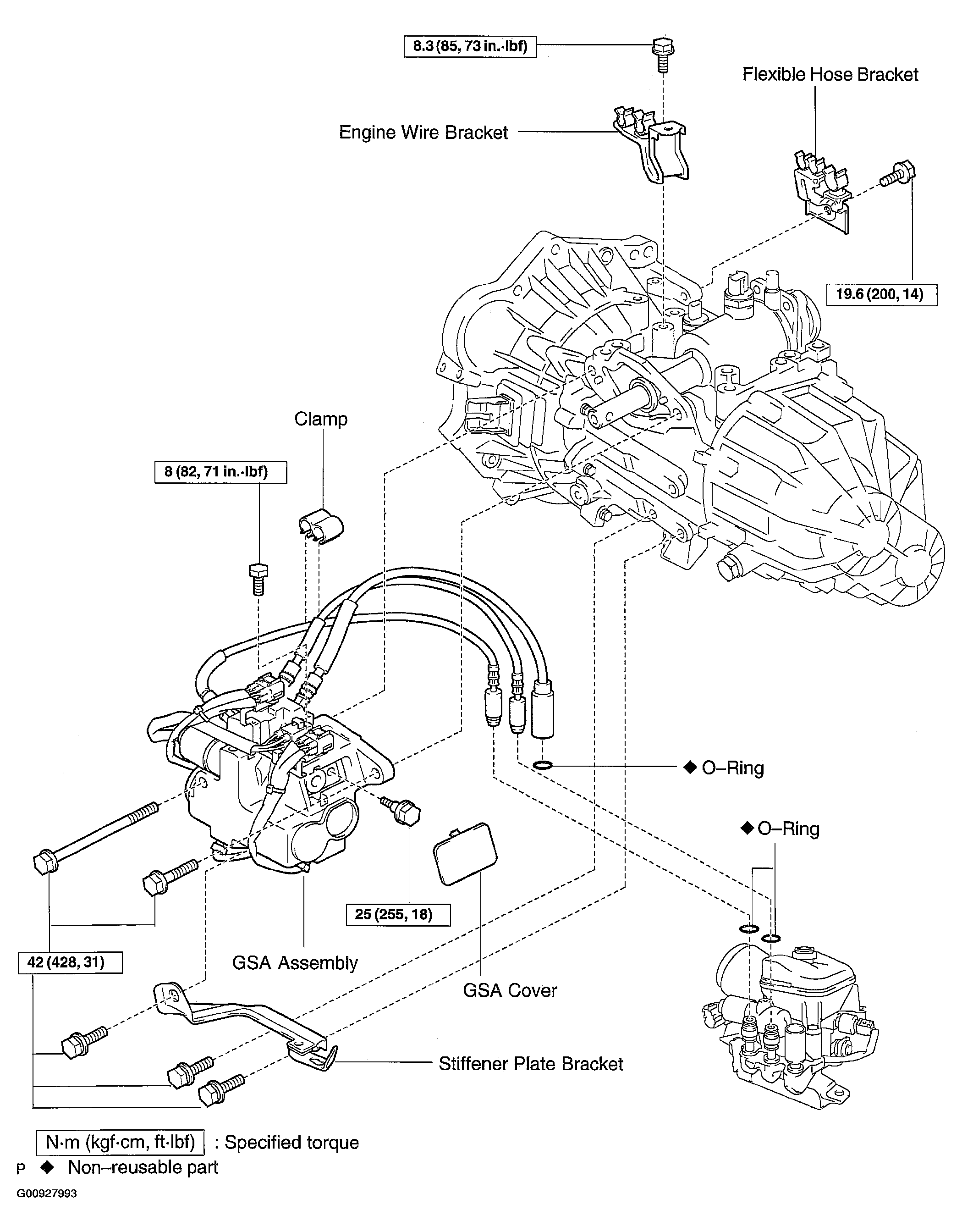

Fig 2: Identifying Sequential Manual Transmission Component (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

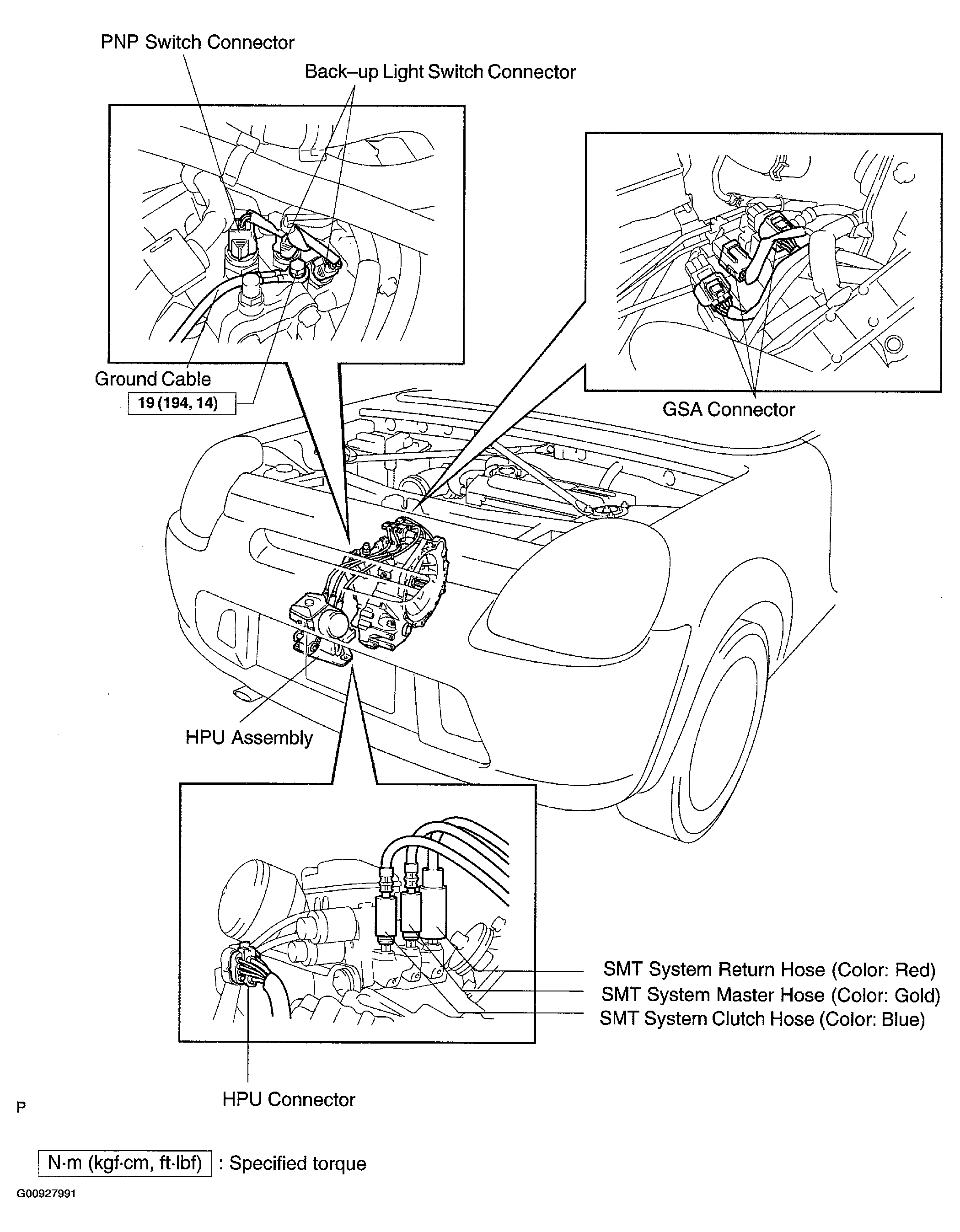

Fig 3: Identifying Sequential Manual Transmission Component (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Sequential Manual Transmission Component (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
