Sequential Manual Transmission Unit: Removal

  1. CONFIRM THAT GEAR IS IN N POSITION (See  SEQUENTIAL MANUAL TRANSMISSION SYSTEM  )
  2. REDUCE ACCUMULATOR PRESSURE (See  PRE-CHECK  )
  3. REMOVE ENGINE HOOD

    Remove the 4 bolts and engine hood.

  4. REMOVE SUSPENSION UPPER BRACE

    Remove the 2 bolts, 2 nuts and suspension upper brace.

  5. REMOVE AIR CLEANER CAP AND AIR HOSE ASSEMBLY, AIR FILTER AND AIR CLEANER CASE (See  REMOVAL  )
  6. REMOVE FRONT AND REAR ENGINE UNDER COVERS
  7. DISCONNECT SMT SYSTEM HOSES
    1. Disconnect the SMT system return hose.
      1. Hold the system return hose with the SST as shown in the illustration.

        SST 09340-00010

      2. Then disconnect the system return hose by pushing the SST downward until a click sound is heard.

      HINT:

      Put force equally and horizontally against the system hose with the SST.

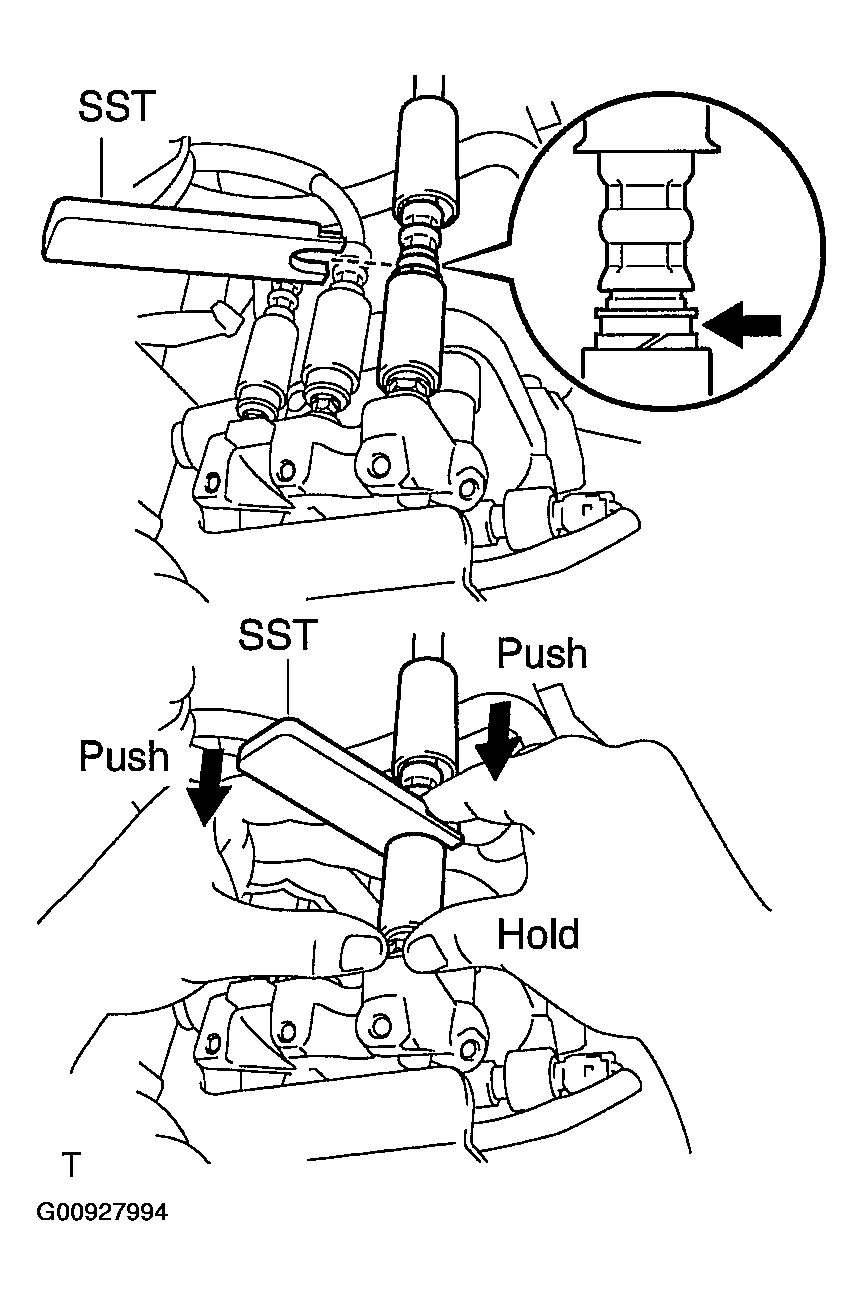

      Fig 1: Disconnecting SMT System Return Hose
      G00927994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the SMT system clutch hose and SMT system master hose.

      HINT:

      The way of removing the 2 SMT system hoses is the same.

      1. Hold the system clutch and master hoses with the SST as shown in the illustration.

        SST 09340-00010

      2. Then disconnect the system clutch and master hoses by pushing the SST upward until a click sound is heard.

      HINT:

      Put force equally and horizontally against the system hose with the SST.

  8. REMOVE BATTERY BRACKET
    1. Loosen the clamp nut, and remove the clamp, battery and tray.
    2. Remove the 3 bolts and battery bracket.

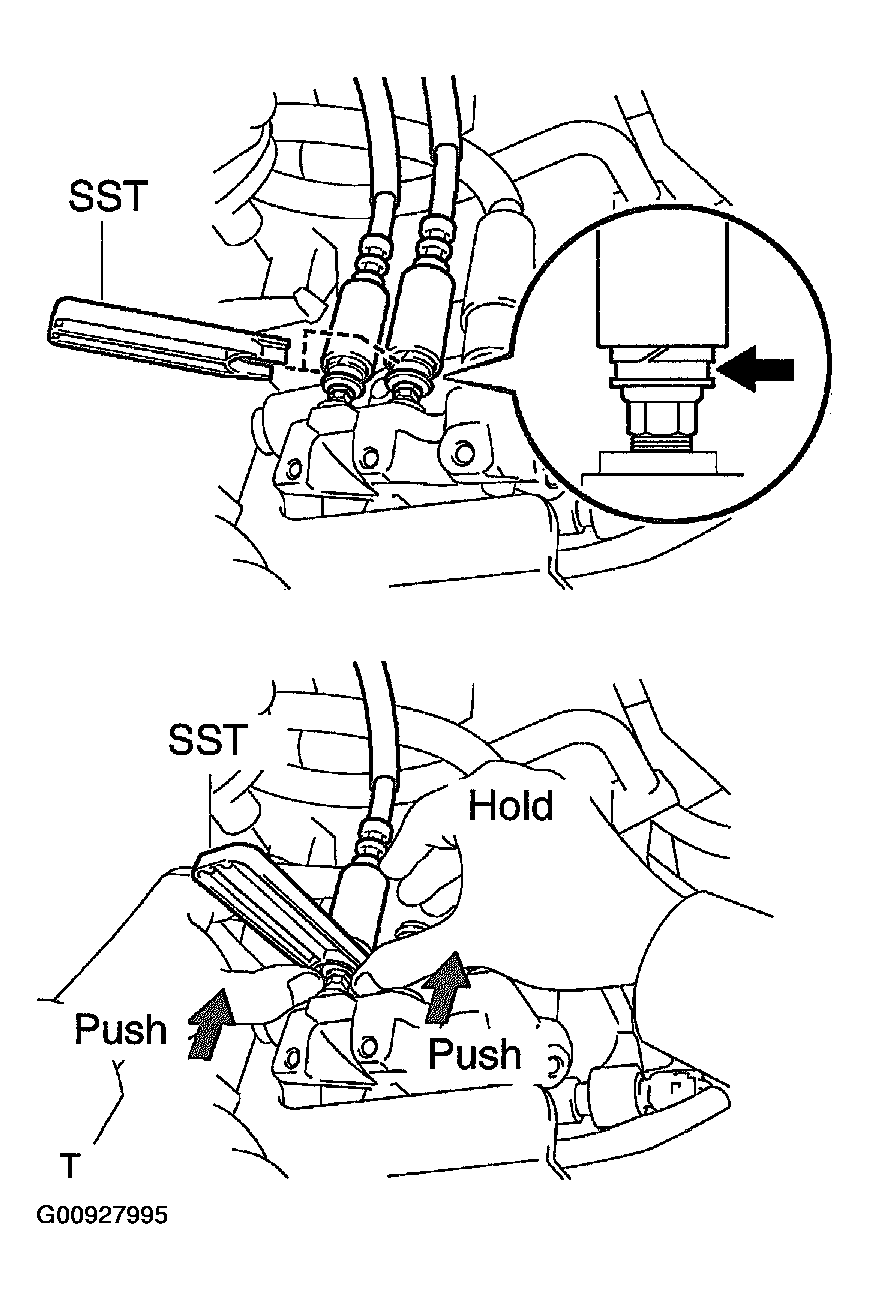

    Fig 2: Disconnecting System Clutch And Master Hoses By Pushing SST
    G00927995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT HPU CONNECTOR

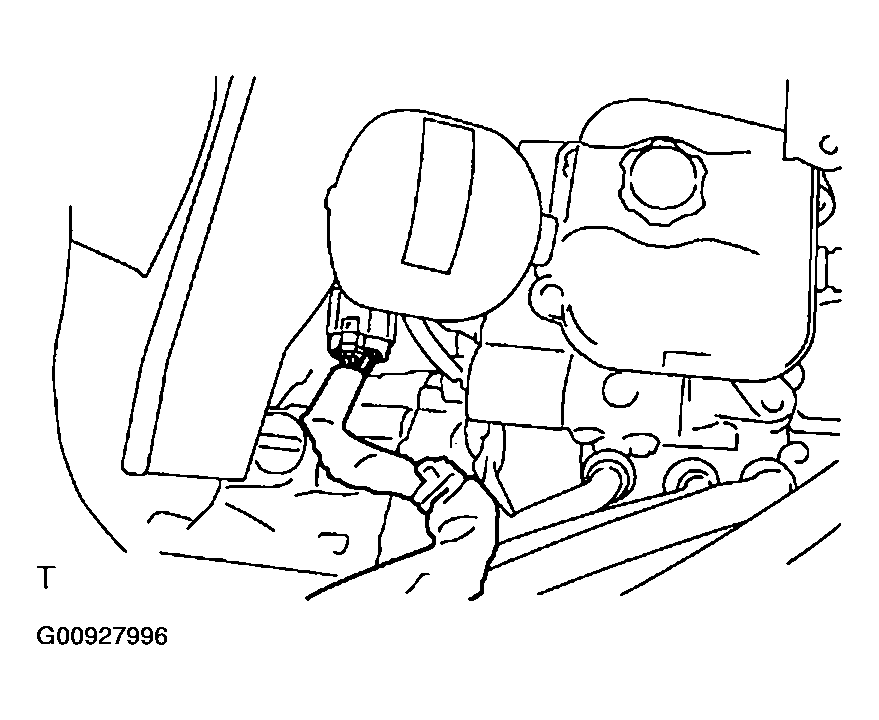

    Fig 3: Identifying HPU Connector
    G00927996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. DISCONNECT ENGINE WIRE FROM TRANSMISSION
    1. Disconnect the 2 clamps.
    2. Remove the bolt, and disconnect the engine wire.

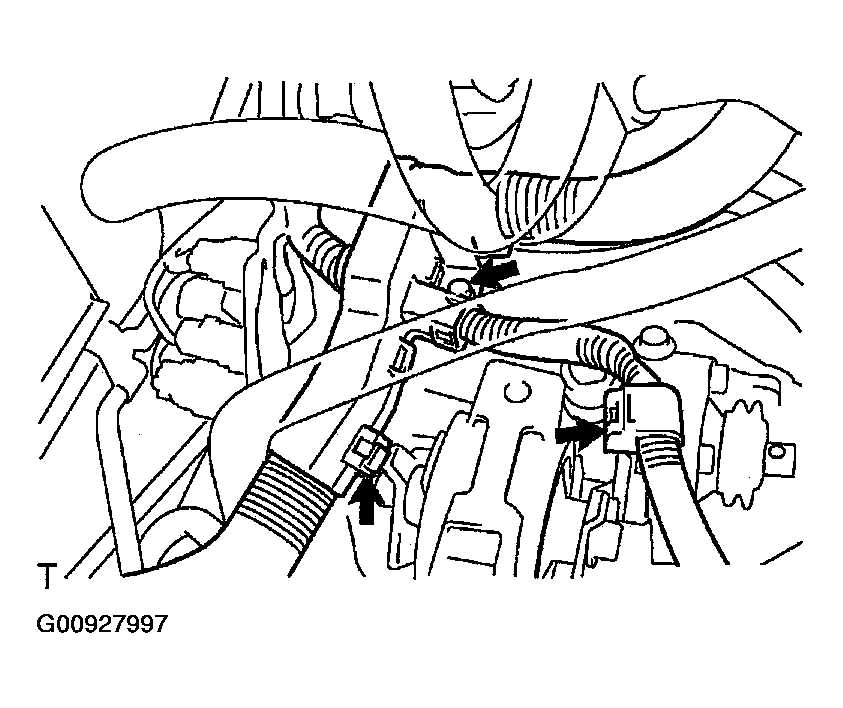

    Fig 4: Disconnecting Engine Wire And Bolt
    G00927997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT GROUND CABLE FROM TRANSMISSION

    Remove the bolt and disconnect the ground cable.

  12. DISCONNECT PNP SWITCH CONNECTOR AND 2 BACK-UP LIGHT SWITCH CONNECTORS
  13. REMOVE THROTTLE BODY (See  REMOVAL  )

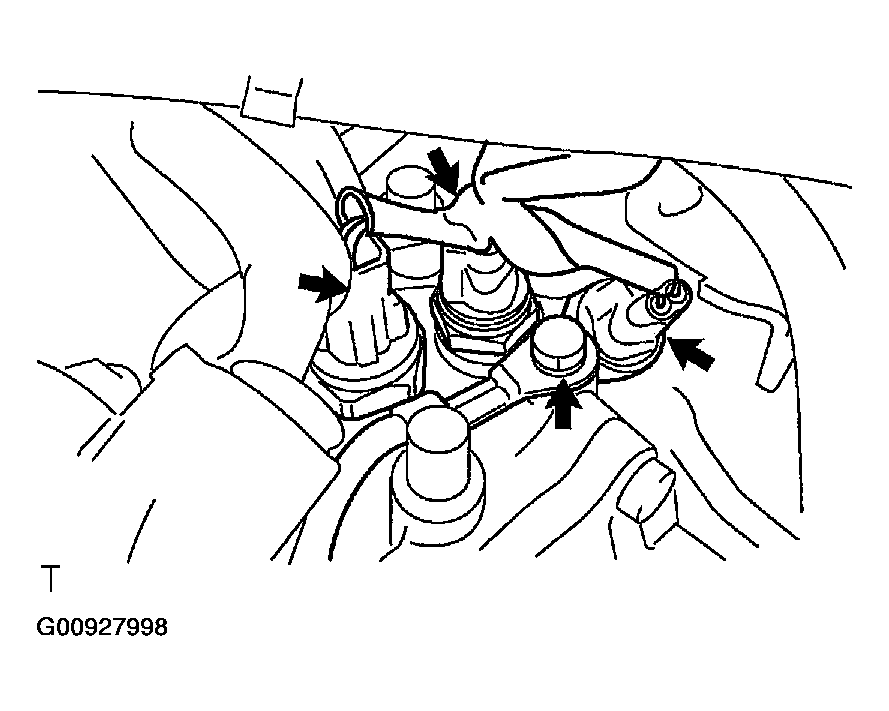

    Fig 5: Removing Bolt And Disconnecting Ground Cable
    G00927998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT GSA CONNECTORS

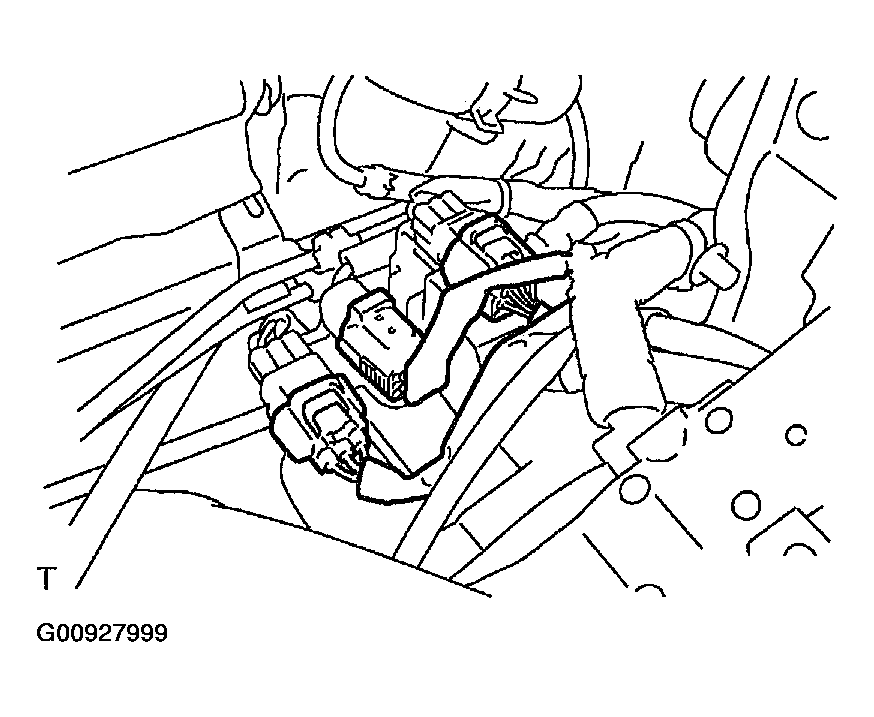

    Fig 6: Identifying GSA Connectors
    G00927999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT GSA CONNECTOR BRACKET

    Remove the bolt and disconnect the GSA connector bracket.

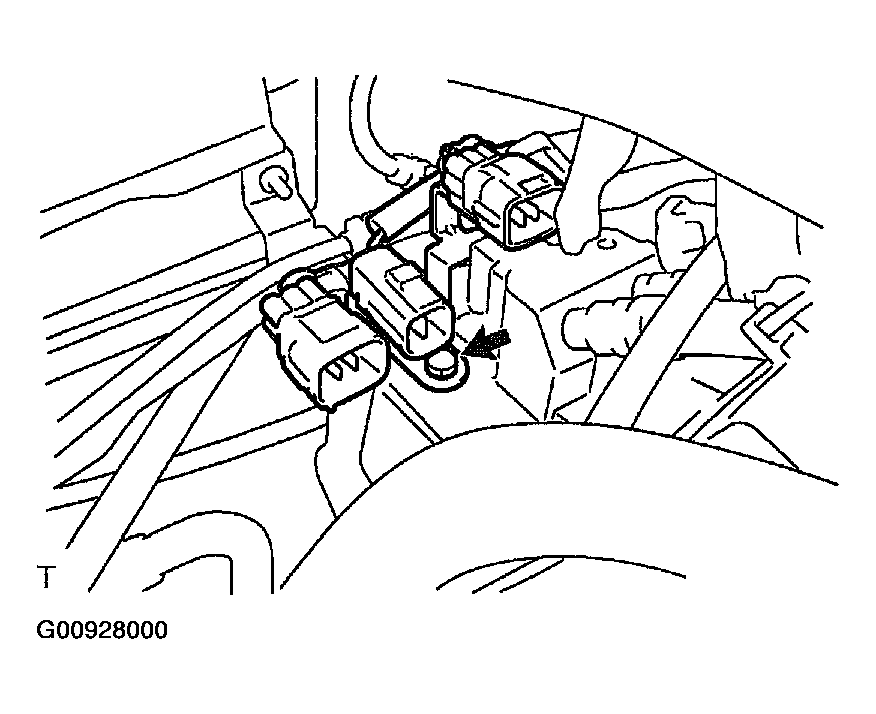

    Fig 7: Disconnecting GSA Connector Bracket And Bolt
    G00928000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE 2 MOUNTING BOLTS OF TRANSMISSION UPPER SIDE

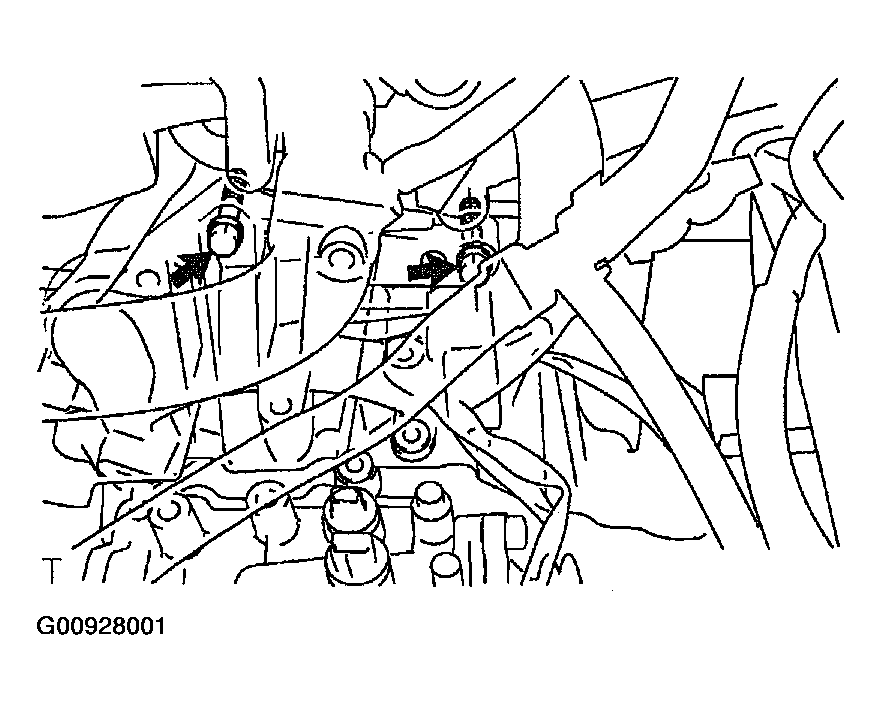

    Fig 8: Removing Mounting Bolts Of Transmission Upper Side
    G00928001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. ATTACH ENGINE SUPPORT FIXTURE
    1. Install the No. 1 engine hanger with the bolt in the correct direction.

      Part the No.:

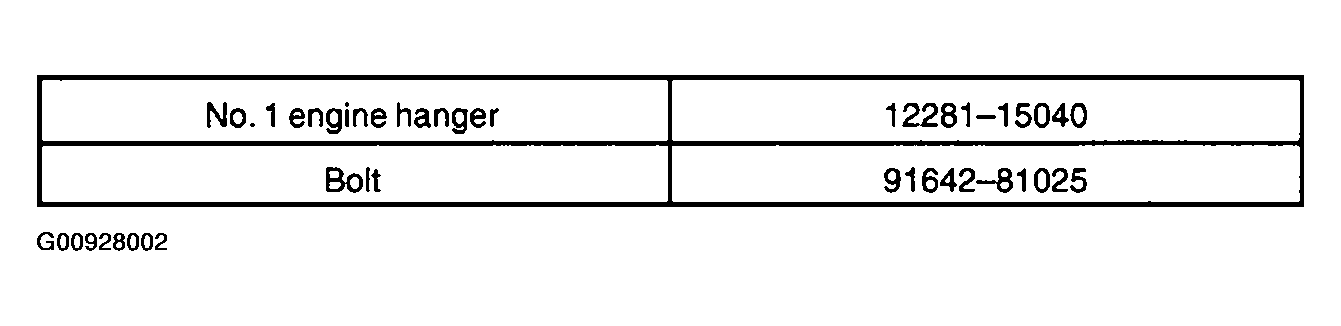

      Fig 9: Engine Hanger Description Table
      G00928002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Torque: 38 N.m (387 kgf.cm, 28 ft.lbf)
    2. Attach the engine support fixture to the engine hanger.

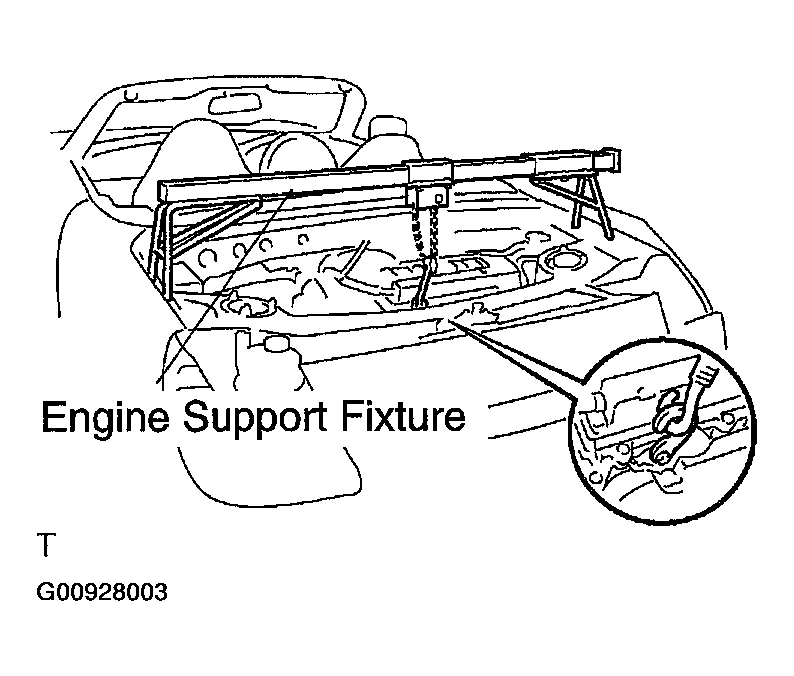

    Fig 10: Attaching Engine Support Fixture To Engine Hanger
    G00928003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE LEFT ENGINE MOUNTING BRACKET
    1. Remove the through bolt and nut.
    2. Remove the 3 bolts and mounting bracket.
    NOTE: Make sure that the vehicle is securely supported.
    Fig 11: Removing Bolts And Mounting Bracket
    G00928004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. DISCONNECT INPUT SENSOR CONNECTOR
  20. DRAIN TRANSMISSION OIL (See  SEQUENTIAL MANUAL TRANSMISSION UNIT  )
  21. JACK UP TRANSMISSION SLIGHTLY

    Using a transmission jack, support the transmission.

  22. REMOVE REAR DRIVE SHAFTS (See  REMOVAL  )

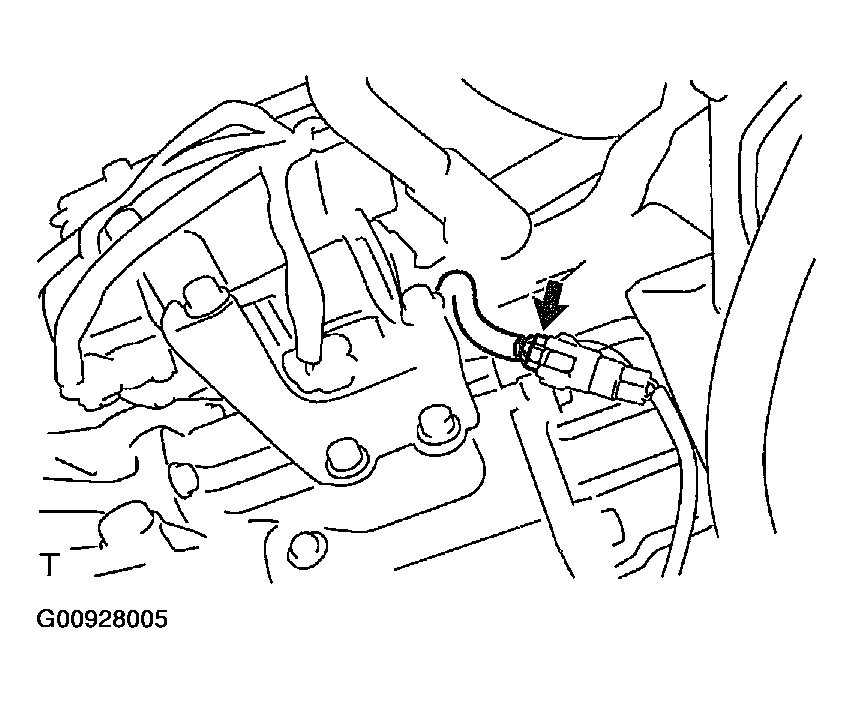

    Fig 12: Disconnecting Input Sensor Connector
    G00928005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. Remove the through bolt and nut.
    2. Remove the 2 bolts and front engine mounting bracket from the transmission.

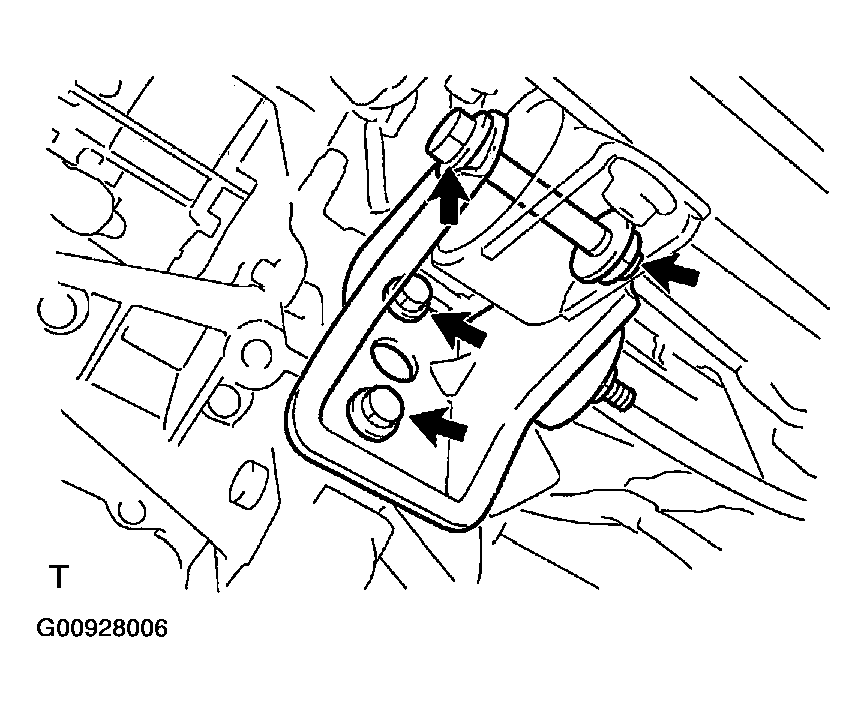

    Fig 13: Removing Bolts And Front Engine Mounting Bracket From Transmission
    G00928006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE STARTER
    1. Disconnect the starter connector.
    2. Remove the nut and disconnect the starter cable.
    3. Remove the 2 bolts and starter.

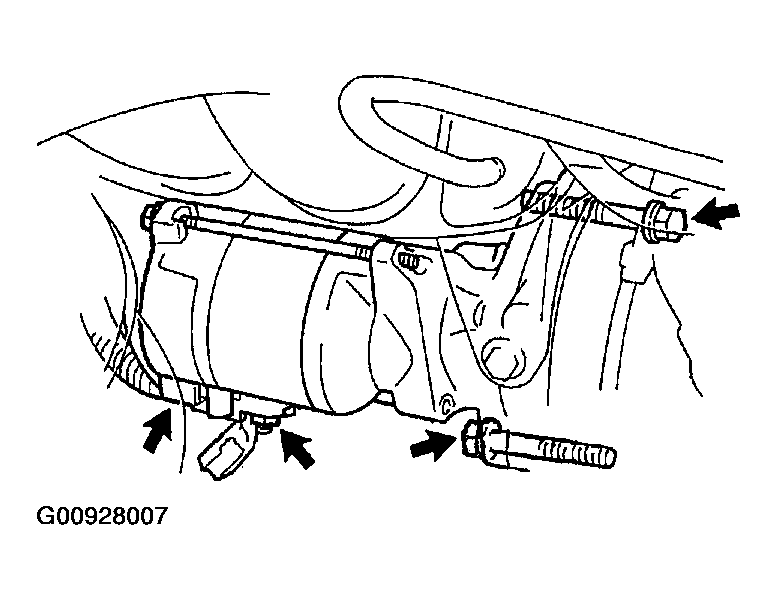

    Fig 14: Removing Bolts And Starter
    G00928007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REAR ENGINE MOUNTING INSULATOR
    1. Remove the through bolt and nut.
    2. Remove the 4 bolts and mounting insulator.

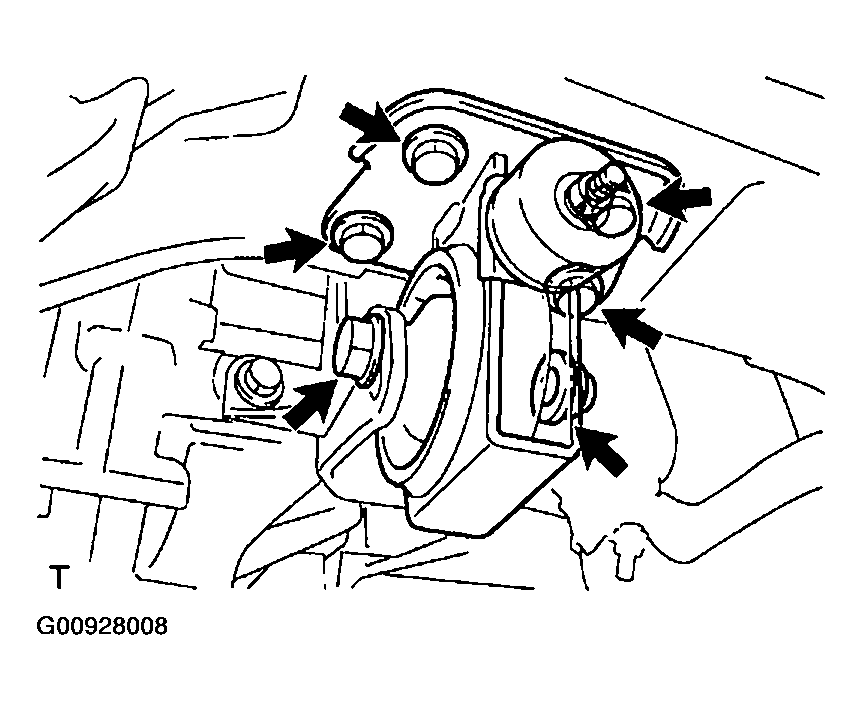

    Fig 15: Removing Bolts And Mounting Insulator
    G00928008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR ENGINE MOUNTING BRACKET

    Remove the 3 bolts and mounting bracket.

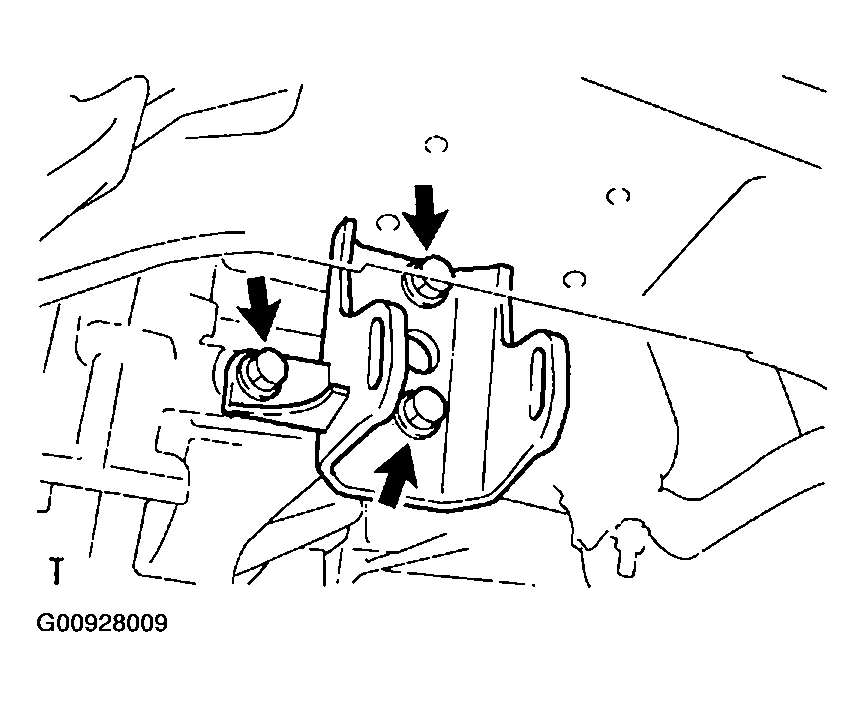

    Fig 16: Removing Bolts And Mounting Bracket
    G00928009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE 4 MOUNTING BOLTS OF TRANSMISSION LOWER SIDE
  28. REMOVE TRANSMISSION

    Lower the engine left side, then slowly and carefully remove the transaxle from the engine.

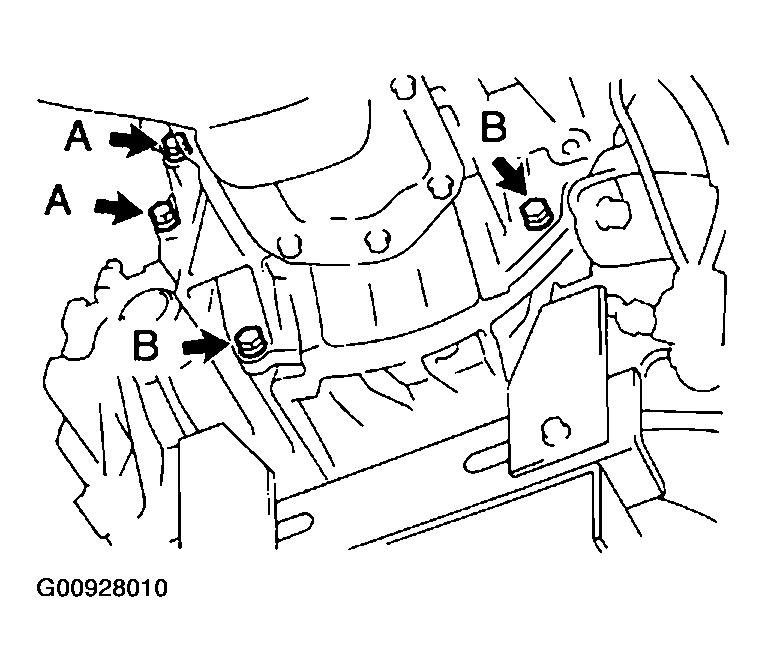

    Fig 17: Removing Mounting Bolts Of Transmission Lower Side
    G00928010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE GSA ASSEMBLY FROM TRANSMISSION
    1. Remove the GSA cover.

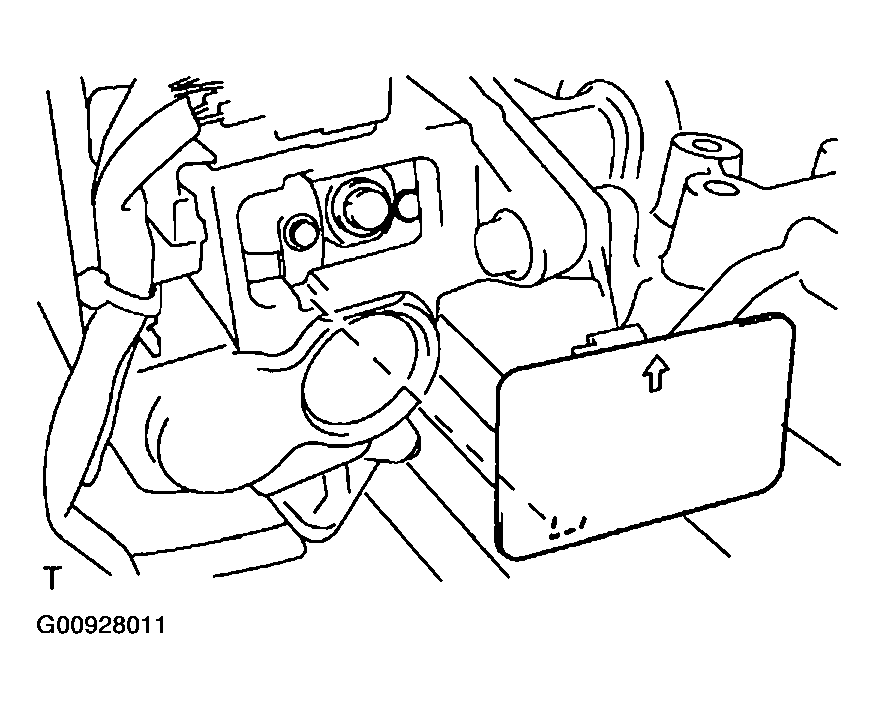

      Fig 18: Removing GSA Cover
      G00928011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the actuator link fixing plate to the GSA.

      Part the No.:

      Actuator link fixing plate: 33963-0W010

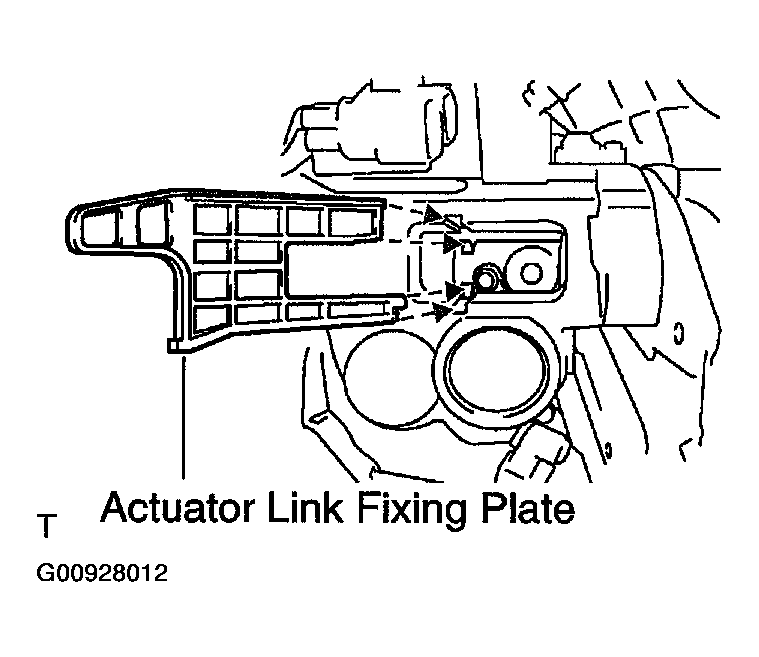

      Fig 19: Installing Actuator Link Fixing Plate To GSA
      G00928012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt.

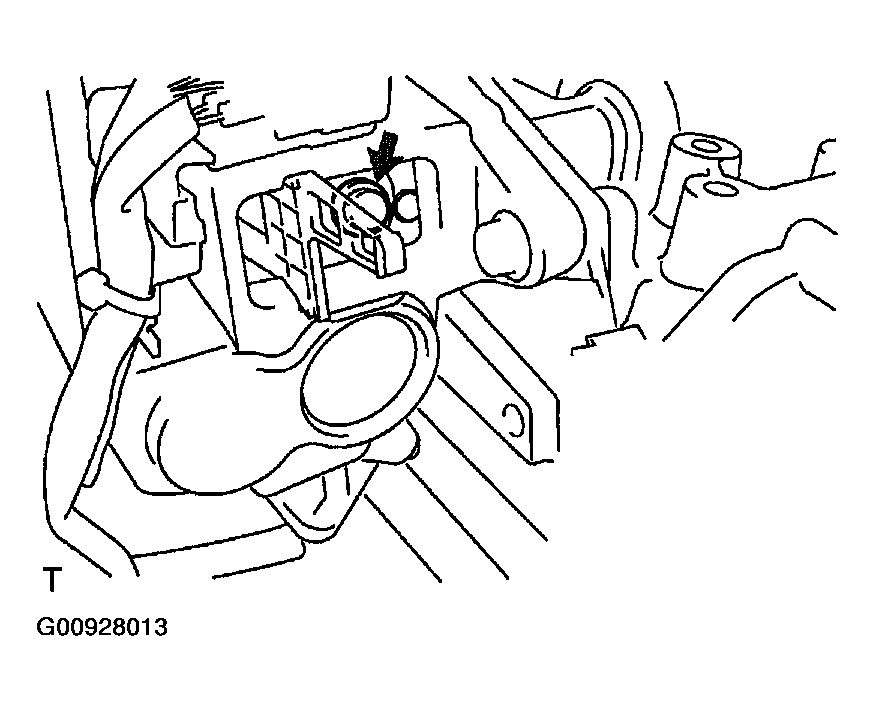

      Fig 20: Removing Bolt
      G00928013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 C bolts and stiffener plate.
    5. Remove the A and B bolt.
      NOTE: Because the B bolt is tensed up by the release cylinder cable of the GSA assembly, hold the GSA assembly not to damage the bolt's thread when removing the B bolt.
    6. Take out the GSA assembly from the transmission assembly.

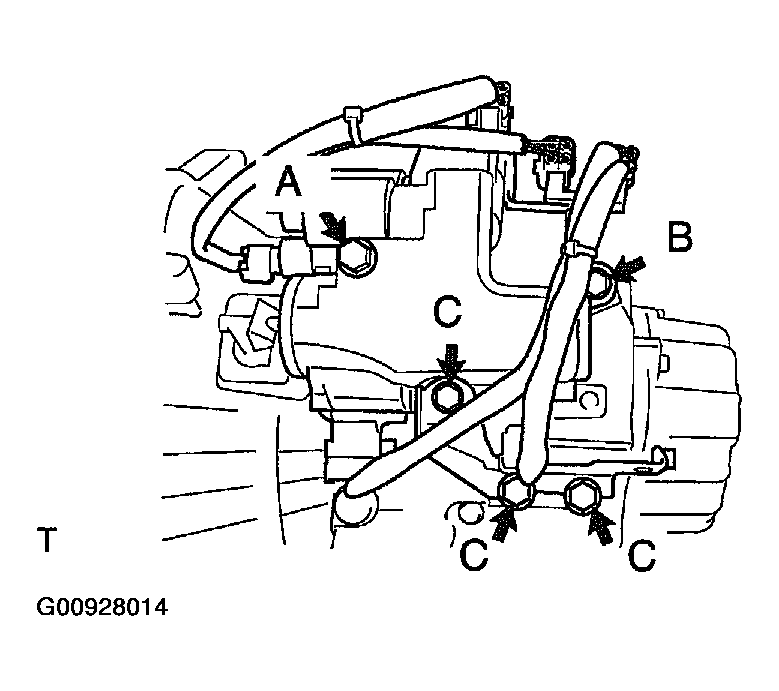

      Fig 21: Removing Bolt From Transmission Assembly
      G00928014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Pulling the release cylinder cable while the GSA assembly is close to the clutch fork, separate the cable from the clutch fork.

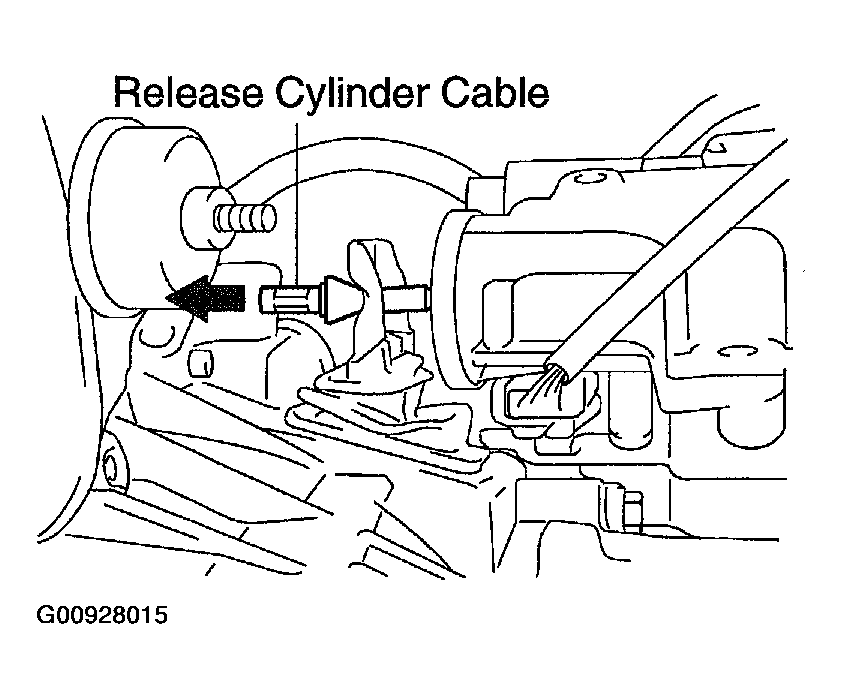

    Fig 22: Releasing Cylinder Cable
    G00928015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Place the GSA assembly as shown in the illustration after the GSA assembly is removed.

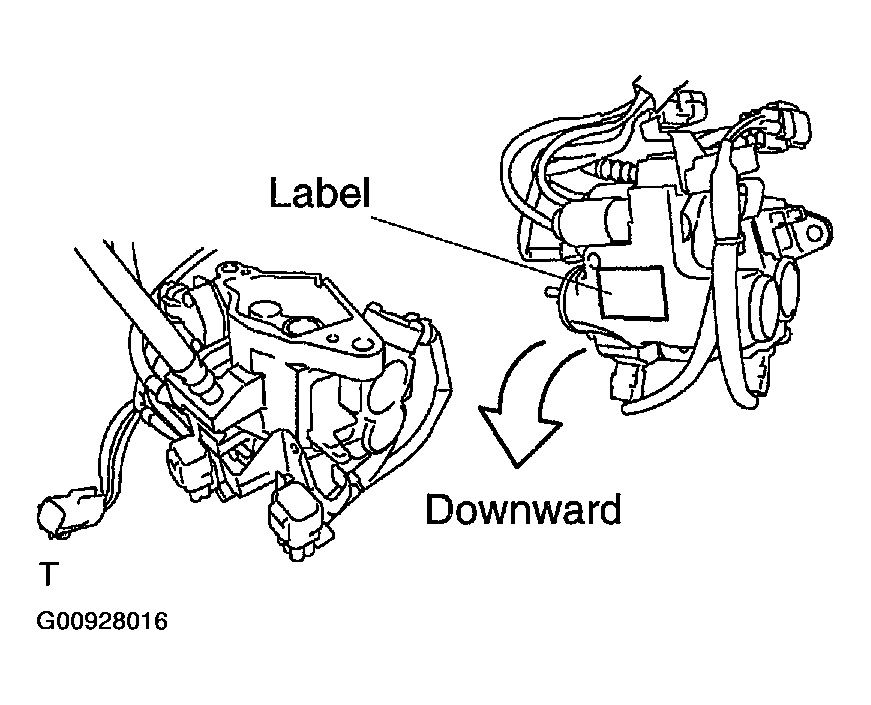

    Fig 23: Placing GSA Assembly Label
    G00928016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
