Shift Lock System: Inspection

1. Remove the shift lock ECU (See DISASSEMBLY ).
2. Using an ohmmeter, check the resistance between the terminals 2 and 4.

1. Standard: Below 1Ω

If the result is not as specified, replace the shift lock ECU.

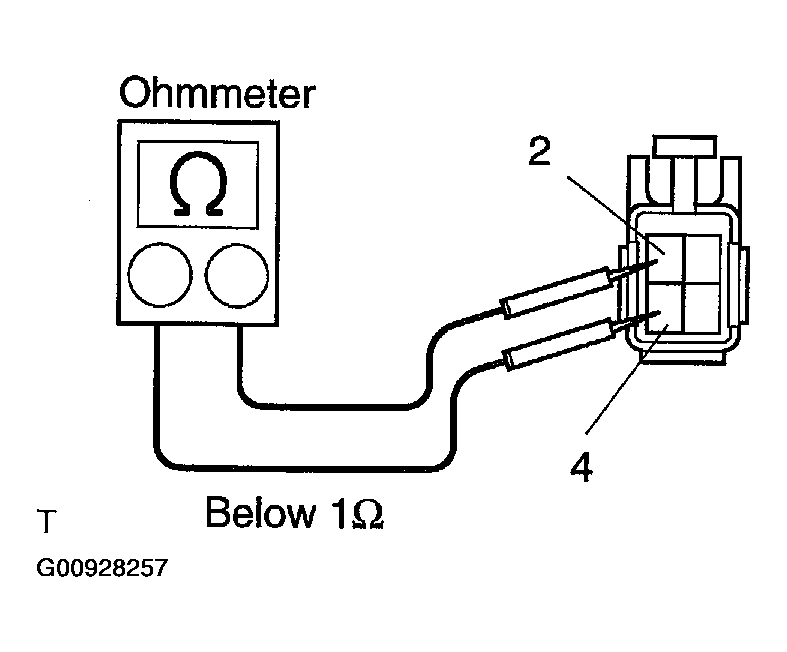

Fig 1: Checking Resistance Between Terminals 2 And 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the shift lock solenoid (See DISASSEMBLY ).
2. Inspect the shift lock solenoid operation.
   1. Using an ohmmeter, check the resistance between the terminals.
      1. Standard: Below 1Ω

   If the result is not as specified, replace the shift lock solenoid.

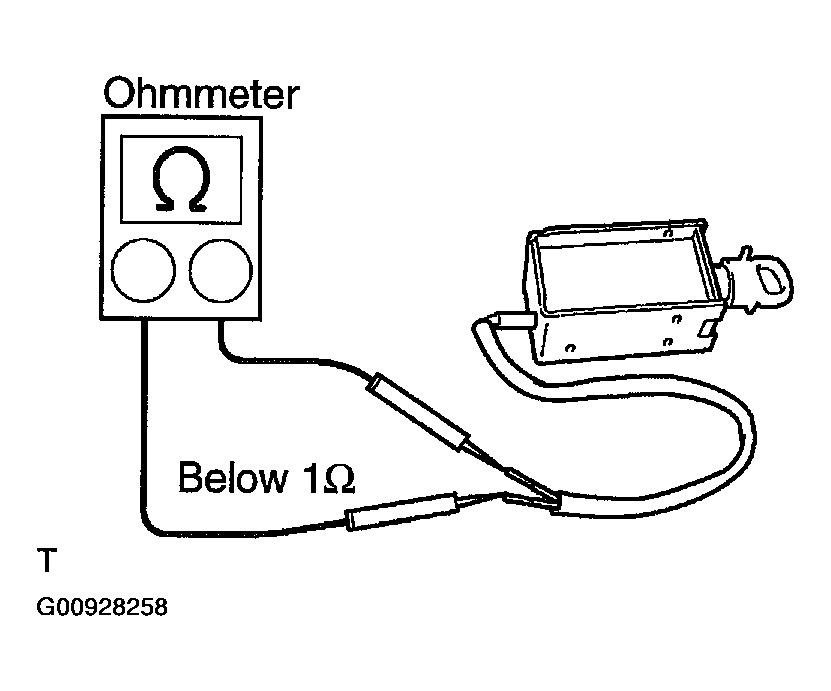

   Fig 2: Checking Resistance Between Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the solenoid operating sound when connecting the battery voltage across the terminals.

If the solenoid does not operate, replace the shift lock solenoid.

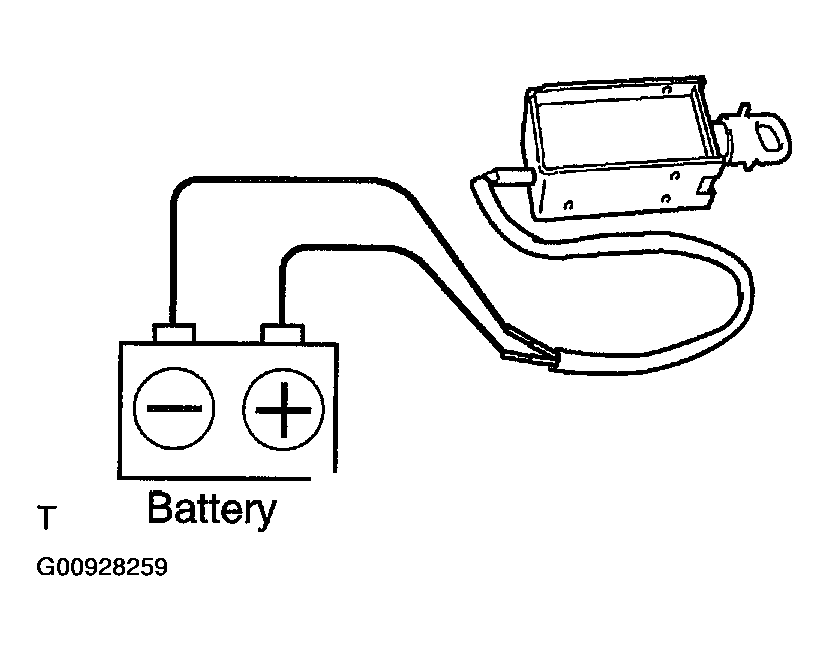

Fig 3: Checking Solenoid Operating With Battery Voltage

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
