Keyless Entry Transmitter Battery: Service and Repair

TRANSMITTER BATTERY

REPLACEMENT

1. REPLACE TRANSMITTER BATTERY

NOTE: Special caution should be taken for handling each component as they are precision electronic components.

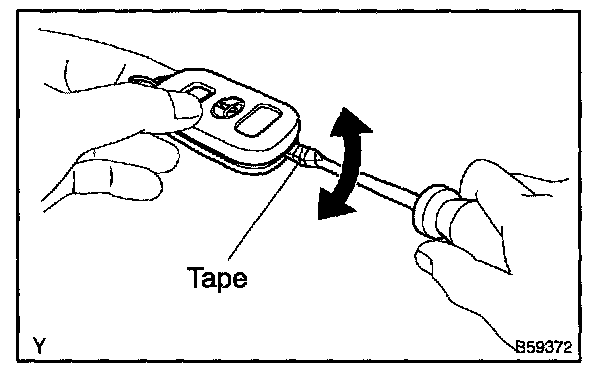

a. Using a screwdriver, remove the cover.

NOTE: Do not pry out the cover forcibly.

HINT: Tape the screwdriver tip before use.




b. Remove the battery (lithium battery).

NOTE:
- Do not push the terminals with a finger.
- If prying up the battery (lithium battery) forcibly to remove, the terminals are deformed.

c. Install a battery (lithium battery), as shown in the illustration.

NOTE:
- Face the battery upward.
- Take care not to deform the terminals.

d. Check that the rubber cover is not distorted or slipped off, and install the cover.

NOTE: It might cause faulty contact of battery (lithium battery) and terminals.
