Impact Sensor

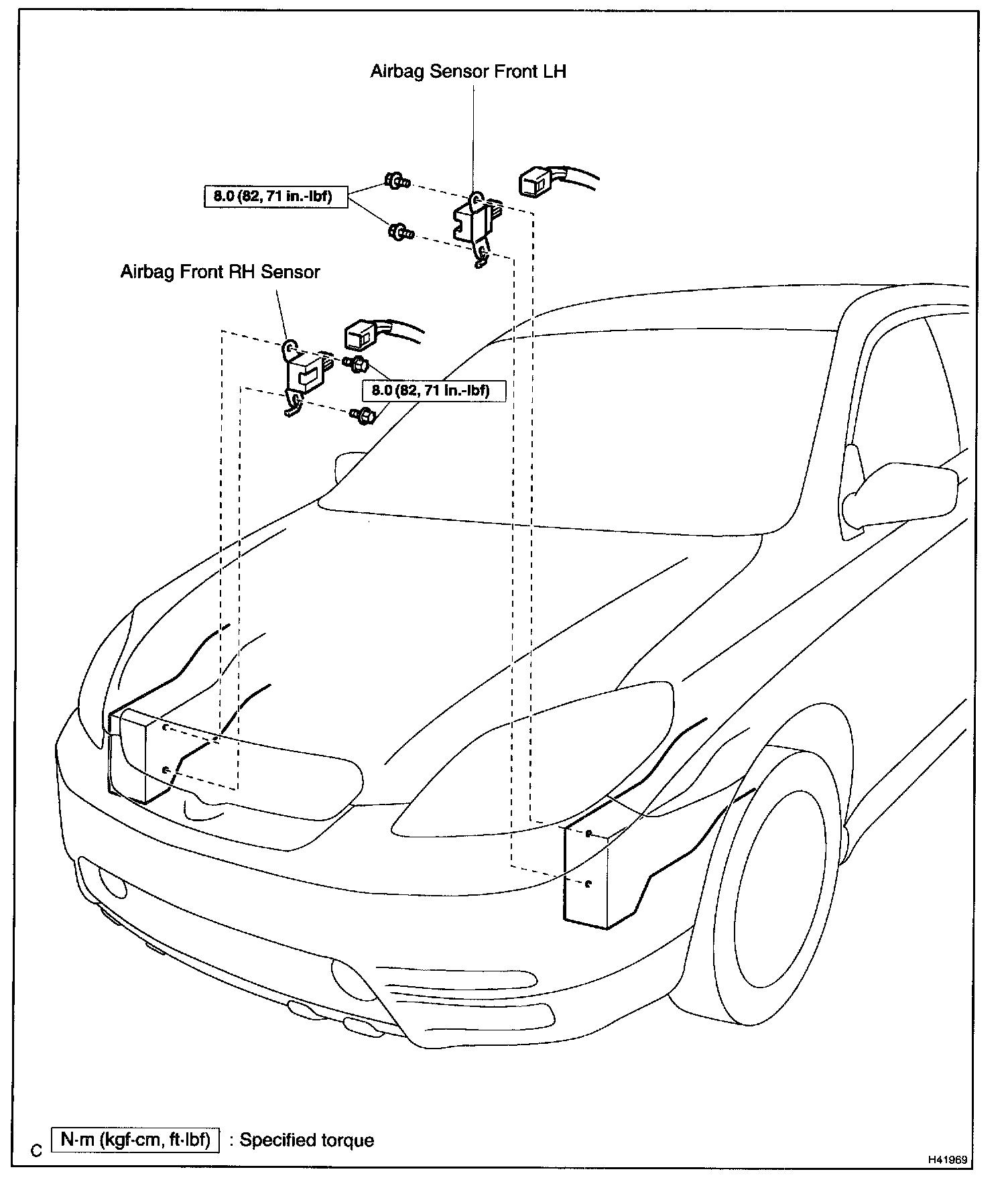

Airbag Front RH Sensor Components:

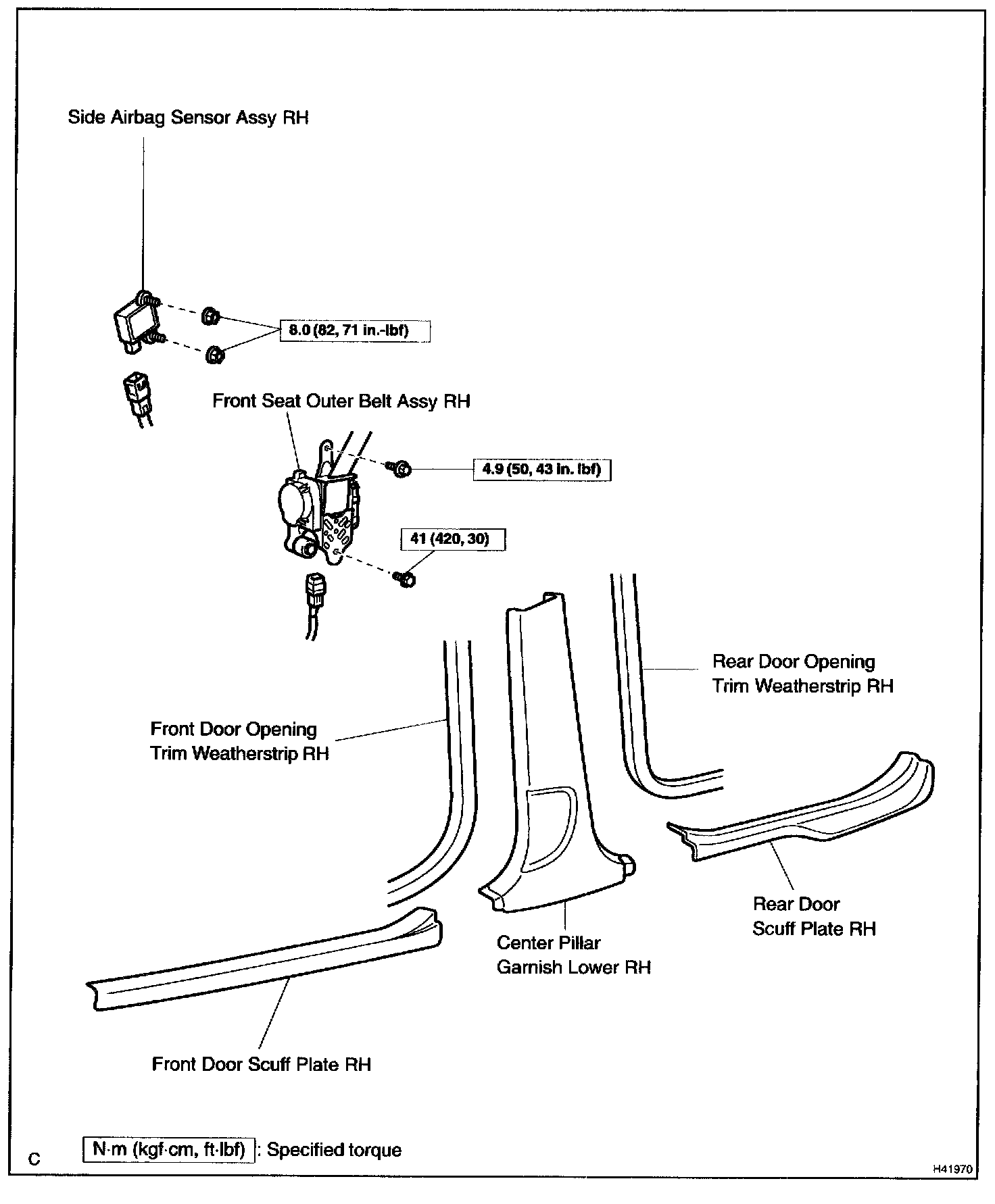

Side Airbag Sensor RH Components:

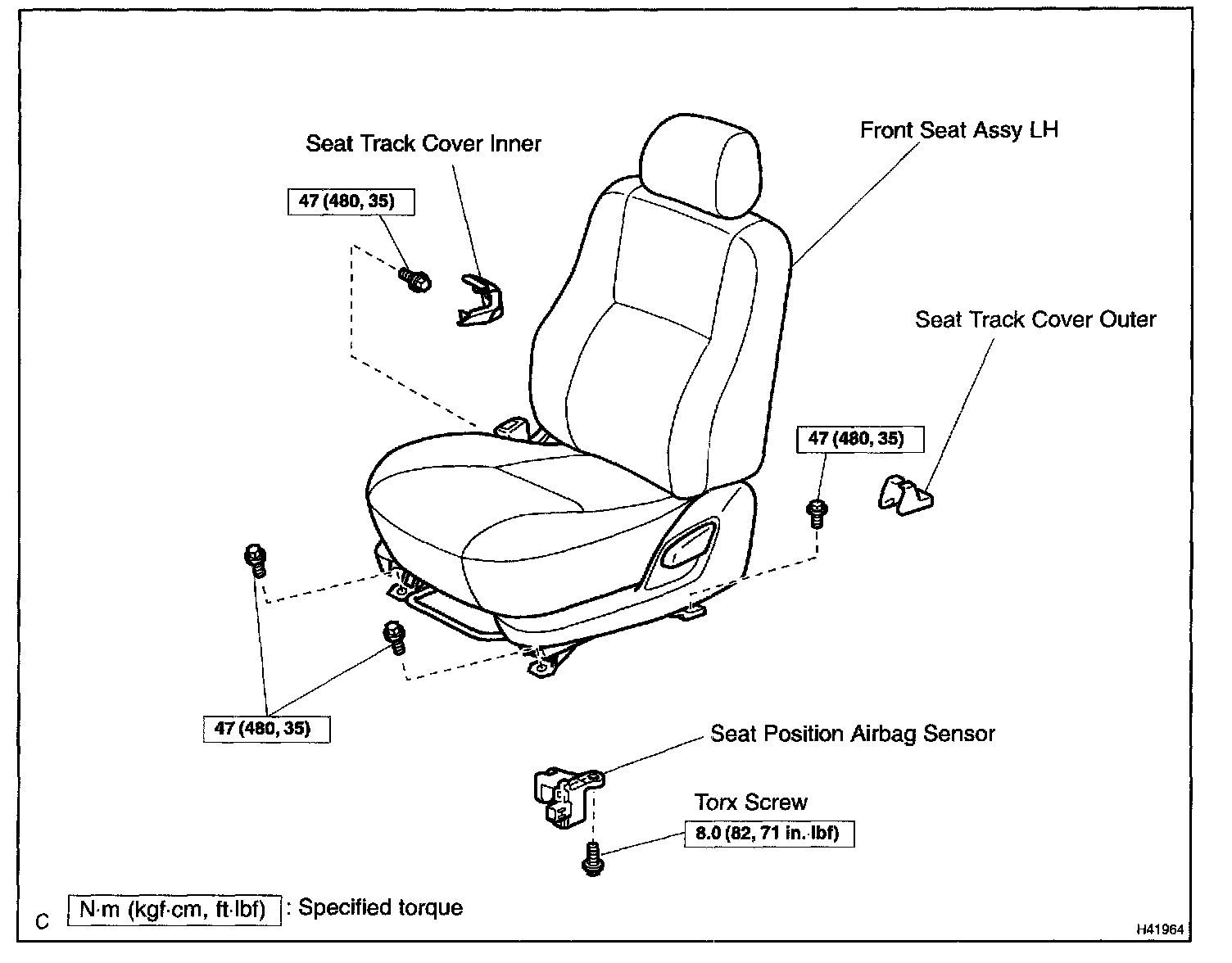

Seat Position Airbag Sensor Components:
