Knock Sensor: Testing and Inspection

KNOCK CONTROL SENSOR

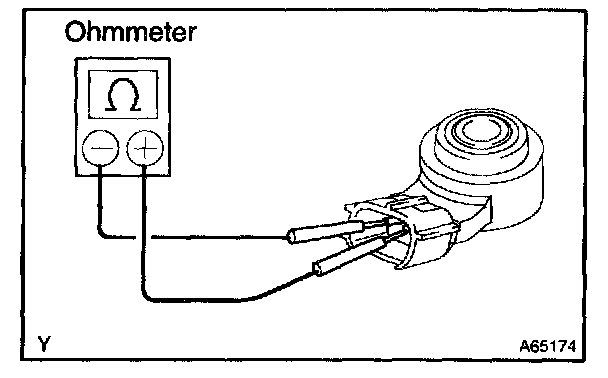

Using an ohmmeter, measure the resistance between terminals.

Resistance:...................120 - 280 kohm @ 20 °C (68 °F)

HINT: If the resistance is not specified, replace the sensor.
