Ignition Switch: Service and Repair

IGNITION OR STARTER SWITCH ASSY

REPLACEMENT

1. REMOVE STEERING COLUMN COVER




2. REMOVE IGNITION OR STARTER SWITCH ASSY
a. Disconnect the ignition switch connector and unlock warning switch connector.
b. Remove the 2 clamps.

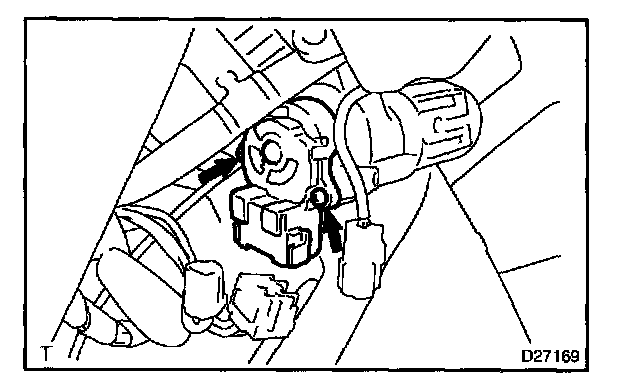

c. Remove the 2 screws and ignition switch.
